The Yale Platinum Keyed Alike 3 Star High Security Euro Profile Cylinder is designed to provide the ultimate door security upgrade. With its sacrificial front section, hardened grip detectors, and interlocking cam, this lock is one of the most secure euro cylinder locks available, earning the TS007:2014 3 Star certification. It delivers complete Anti-Snap, Anti-Bump, Anti-Pick, Anti-Screw, and Anti-Drill protection.

These Keyed Alike Cylinder Locks are sold in pairs, making them ideal for front and back doors so you can use the same key for both. Each pack includes 2 locks and 6 keyed alike Yale branded keys.

Visually, the Platinum 3 Star Cylinder deters intruders with its 3 Star Kitemark logo clearly displayed on the face. It features a flat, horizontal, reversible key design for ease of use.

Specifications

• TS007:2014 3 Star approved
• Tested to BS EN1303:2005 16000C52
• Kitemark approved – KM559658
• Secured By Design accredited
• Anti-Snap sacrificial front section
• Anti-Pick, Anti-Bump, Anti-Screw, Anti-Pull, Anti-Drill
• Euro retrofit cylinder
• Supplied in keyed alike pairs
• Includes 6 Yale branded, dimple cut keys

Features

• Superior strength with cylinder stability system
• Horizontal keyway
• Flat reversible dimple key with stylish nylon bow
• Key card for easy identification and duplication
• Available in Brass and Nickel finishes

What's in the Pack?

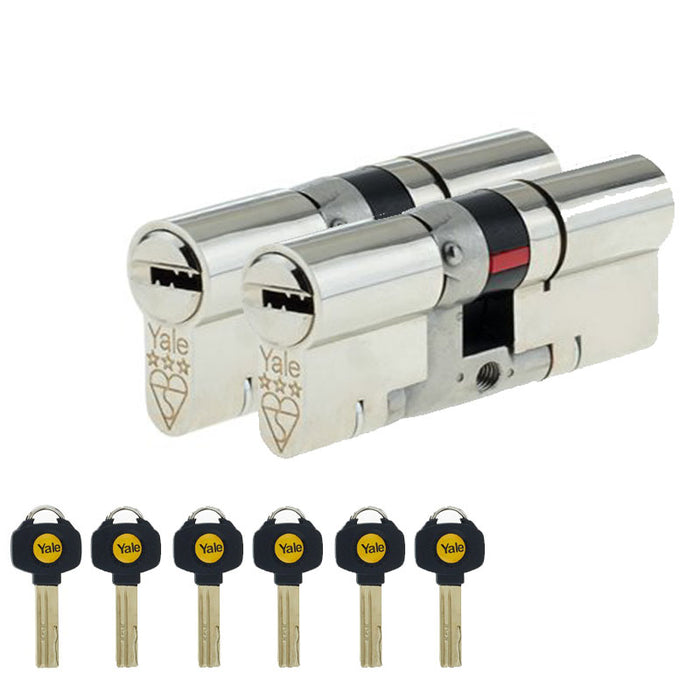

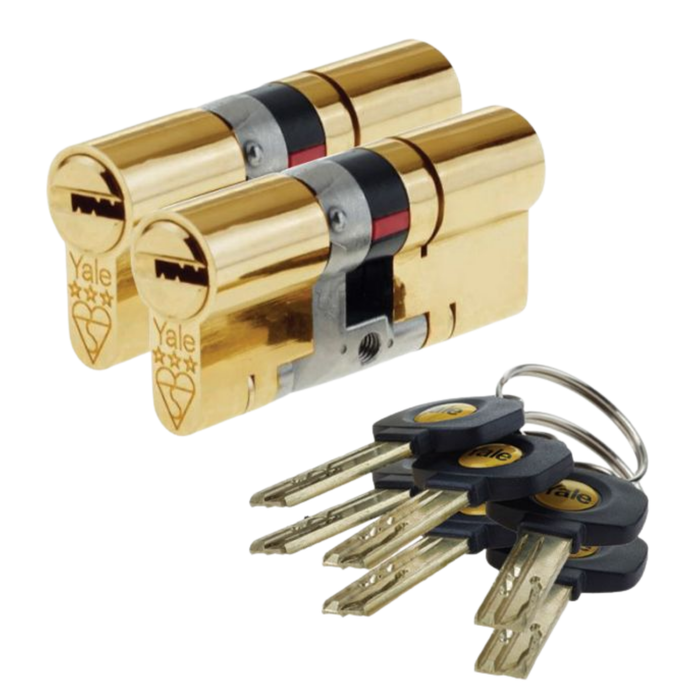

• 1 x Pair Yale Platinum 3 Star Keyed Alike Euro Profile Cylinders
• 6 x Keys (Keyed Alike)
• 1 x Key Card
• 2 x Fixing Screws

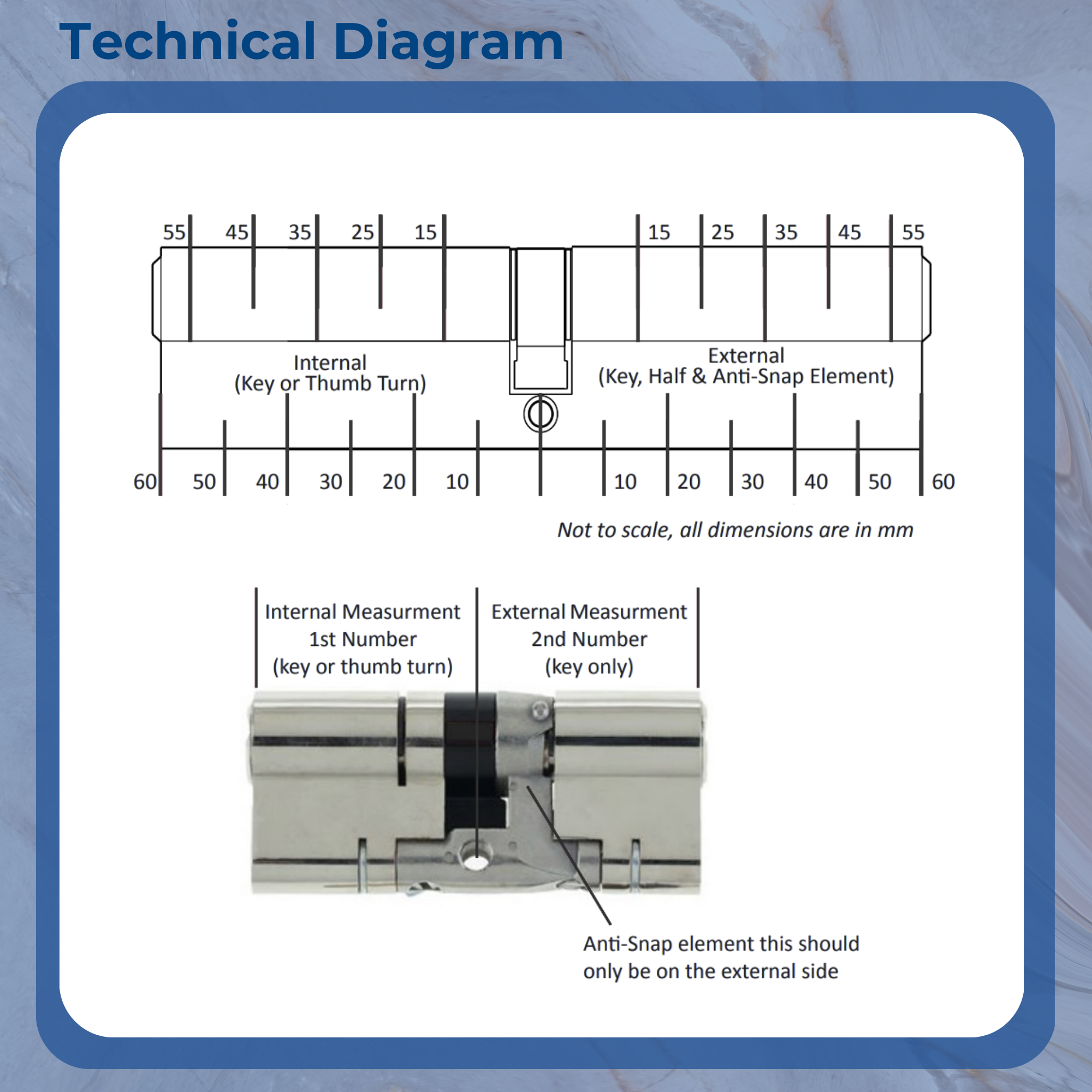

Measuring Your Yale Platinum Cylinder

One side of the Yale Platinum cylinder is dedicated external (marked “EXT”) and the other is internal. Take care to measure correctly:

• Measurement A (Internal): From inside edge to centre of screw hole
• Measurement B (External): From outside edge to centre of screw hole

Example: A = 40mm (Internal), B = 50mm (External). Order size: 40mm Int / 50mm Ext.
