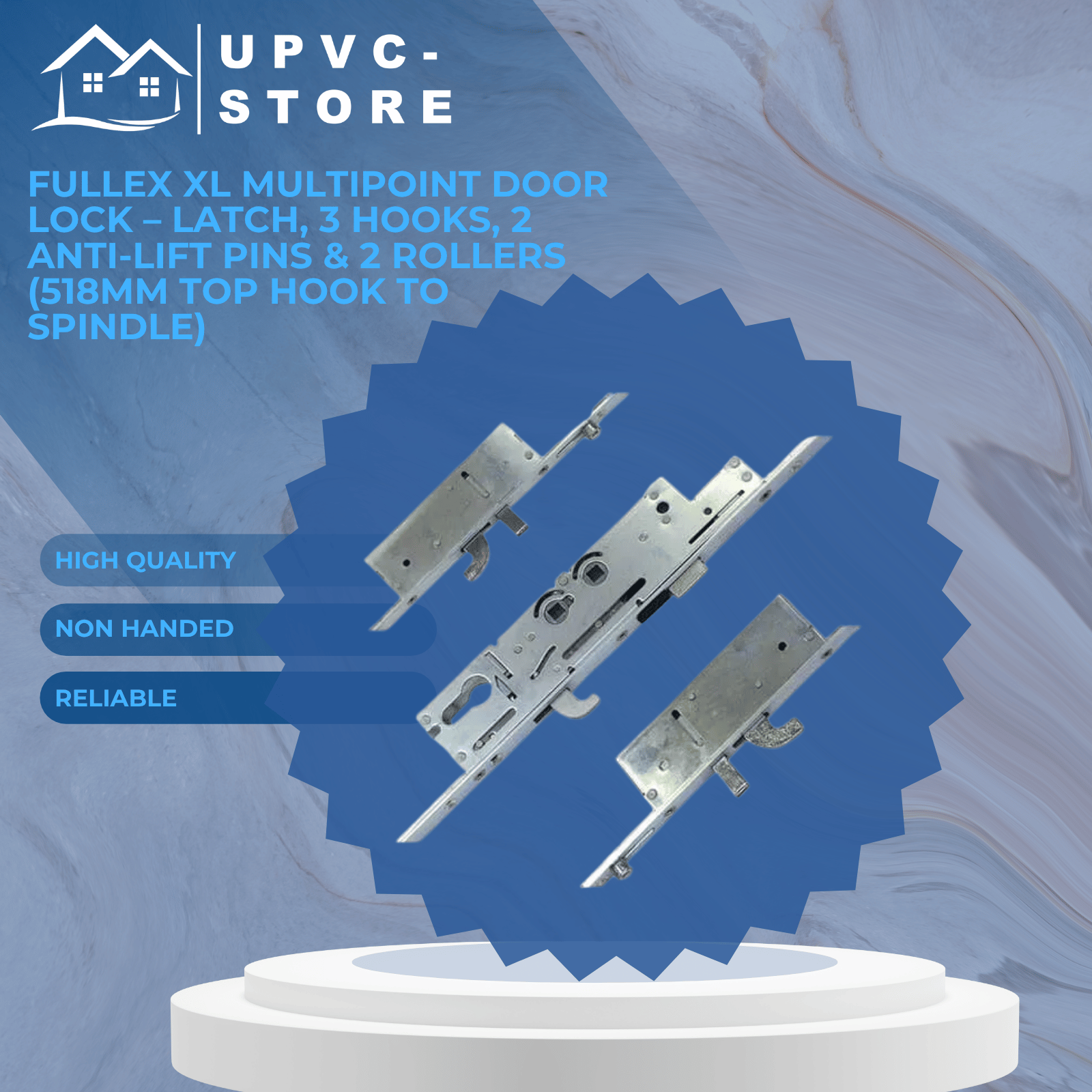

Fullex XL Multipoint Door Lock – Latch, 3 Hooks, 2 Anti-Lift Pins & 2 Rollers (518mm Top Hook to Spindle)

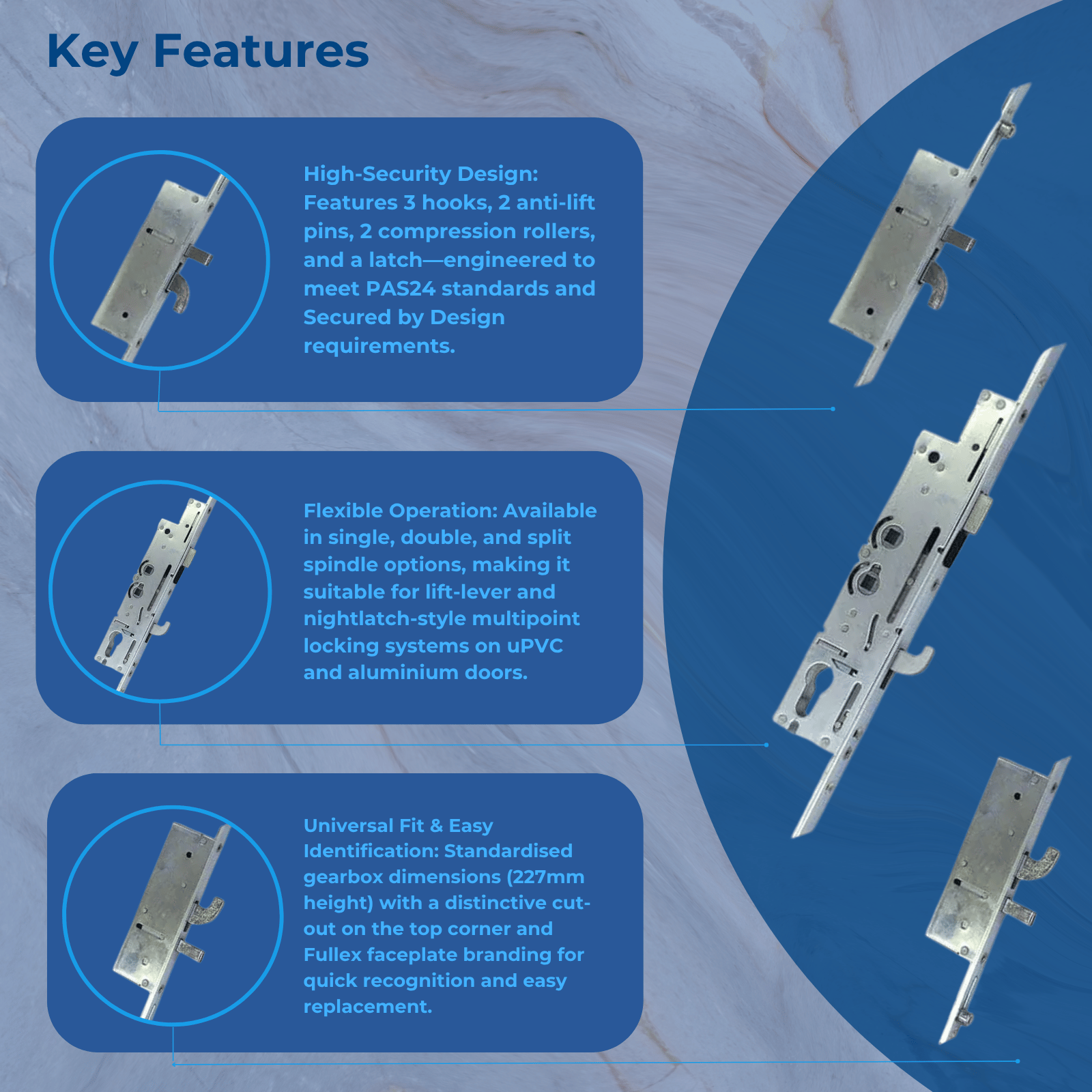

The Fullex XL multipoint door lock is engineered for maximum security and durability on uPVC and aluminium doors. This robust locking system includes 3 hooks, 2 anti-lift pins, 2 compression rollers, and a central latch for enhanced sealing and burglary resistance.

Designed for both residential and commercial use, the Fullex XL supports double spindle, single spindle, and split spindle operations—ideal for lift-lever or nightlatch handle systems. All locks within the XL range feature identical door preparation, ensuring easy replacement or upgrades. Note: different handle types are required for double spindle models.

Key Identification

• Stamped Fullex logo on the faceplate
• Cut-out on the top corner of the gearbox (visible once removed)
• Locking elements (hooks, rollers, pins) may vary in position—refer to the specifications below

Extendable & Secure

All Fullex XL locks are extendable at both ends for flexible installation. When used with Fullex high-security shoot bolts, the lock can meet PAS24 standards and is Secured by Design accredited.

Technical Features

• Backsets: 35mm or 45mm
• Universal gearbox size: 227mm height × (backset + 15mm) width
• 3 screw fixing points, spaced at 108mm intervals
• Snib function on faceplate to hold back the latch
• Central latch and upward-throwing hook in Dacromet-coated A3 sintered steel (23mm height)
• Hooks and anti-lift pins in chrome-plated, hardened A3 cast steel
• Top hook: throws downward, pin above; Bottom hook: throws upward, pin below
• Rollers: ±1mm adjustable for weather sealing and compression

Operation (Double Spindle)

To Lock:

1. Close the door – latch engages automatically
2. Lift the handle to engage hooks, pins, and rollers
3. Turn the key to deadlock the mechanism

To Unlock:

1. Turn the key to release the deadlock
2. Push the handle down to disengage the locking points
3. (Optional) Turn the key again to retract the latch

Durability & Standards

• Corrosion resistance: BS EN 1670 Grade 4 (240-hour salt spray tested)
• Cycle tested: 200,000 operations
• Security: PAS24 & Secured by Design compliant (when used with compatible hardware)

Specifications

• Manufacturer: Fullex
• Backset: 35mm or 45mm
• Centres (PZ): 92mm / 62mm
• Faceplate Width: 16mm or 20mm
• Spindle Size: 8mm double spindle
• Latch: 1
• Hooks: 3
• Anti-Lift Pins: 2
• Rollers: 2 (compression)
• Main Gearbox: Latch & hookbolt
• Handing: Non-handed (suitable for left or right-handed doors)

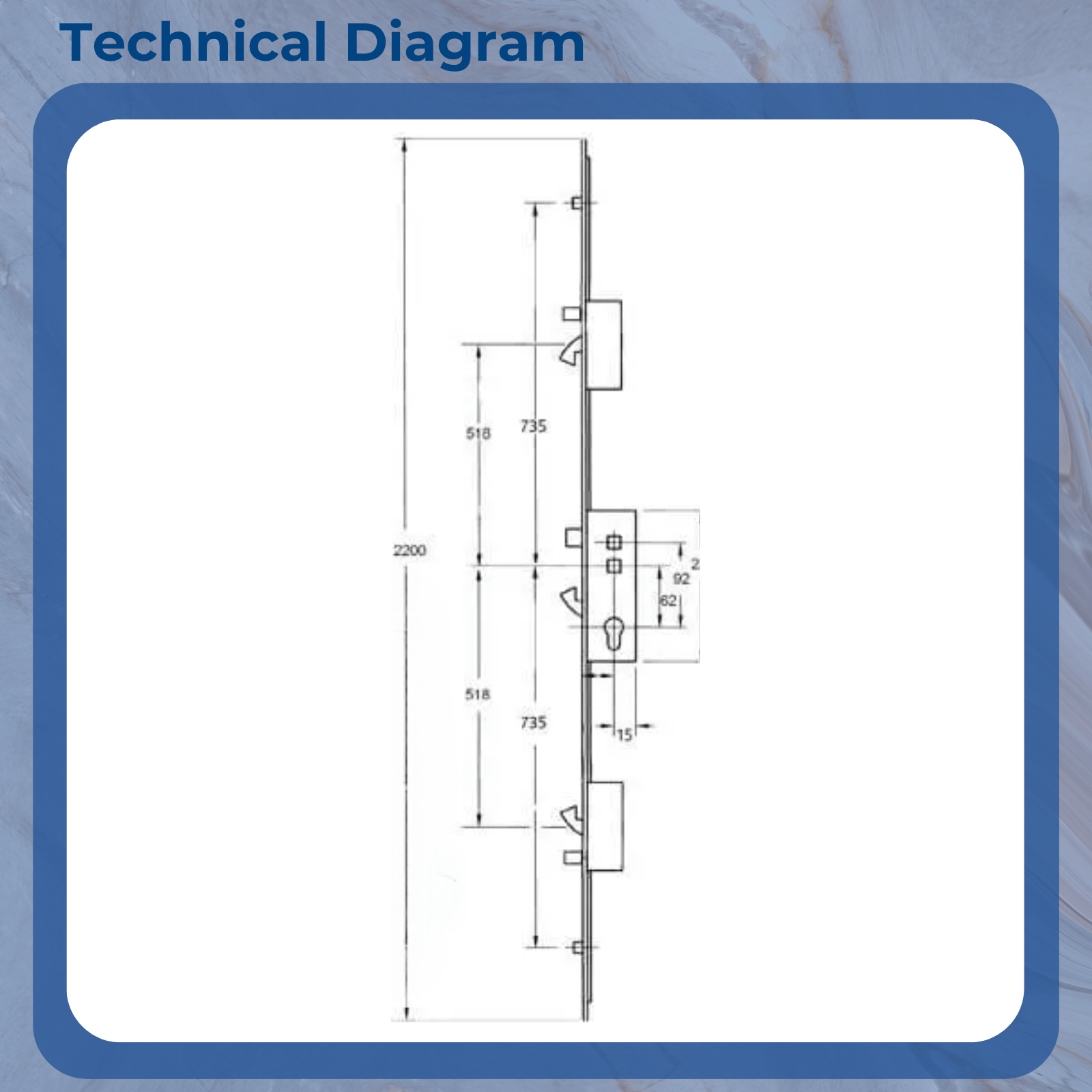

• Distance Between Inner Hooks: 1036mm
• Distance Between Outer Hooks: 1200mm
• Top Hook to Spindle: 518mm
• Bottom Hook to Spindle: 518mm
• Top Roller to Spindle: 585mm
• Bottom Roller to Spindle: 615mm
• Overall Lock Height: 2200mm
• Compatible Door Materials: uPVC & Aluminium
