Sprung Lever/Pad Offset uPVC Multipoint Door Handles – 92mm/62mm PZ Centres – 240mm Screw Fixings

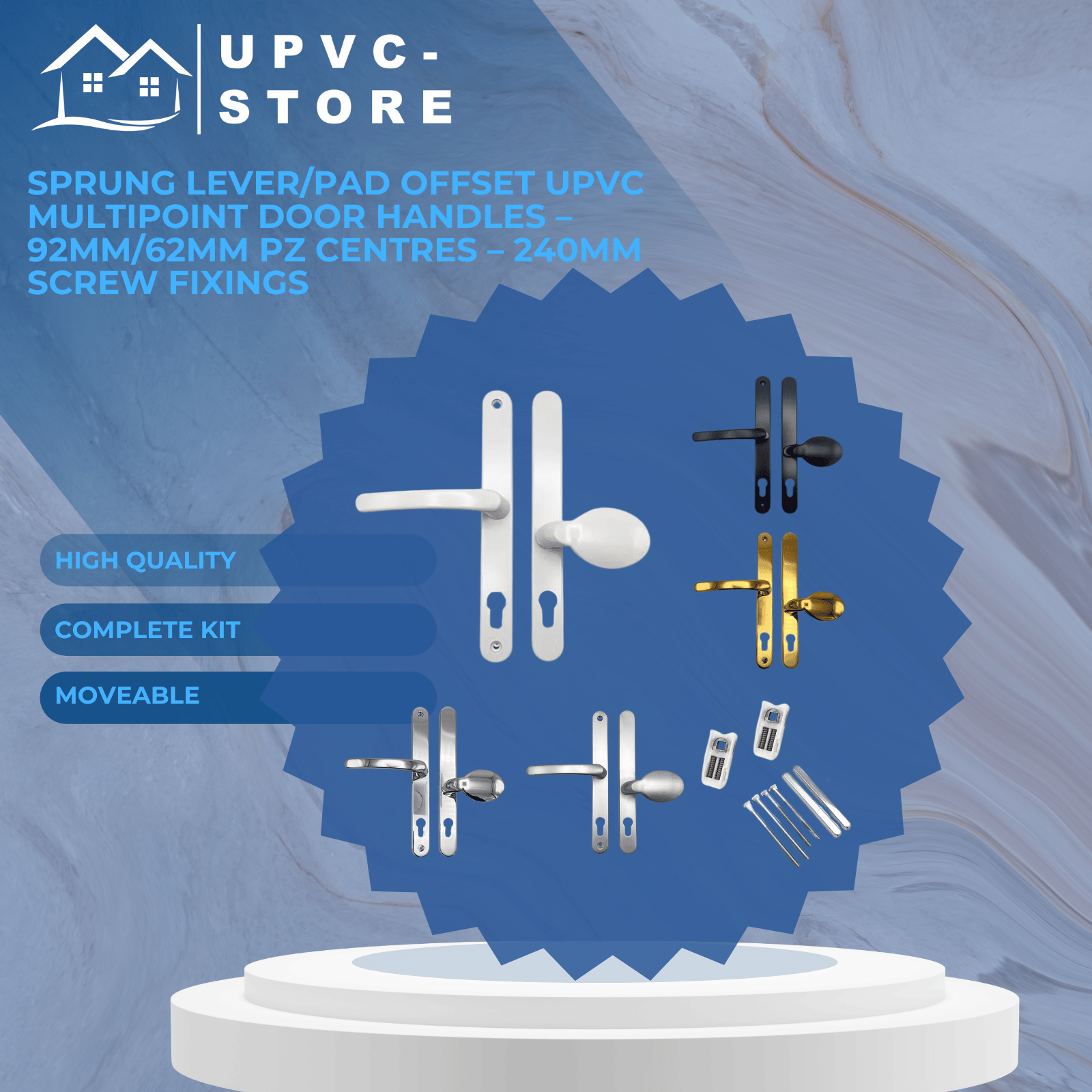

This offset lever/pad multipoint door handle is a high-quality solution for uPVC doors, available in a range of attractive finishes including white, black, polished chrome, silver, and polished brass.

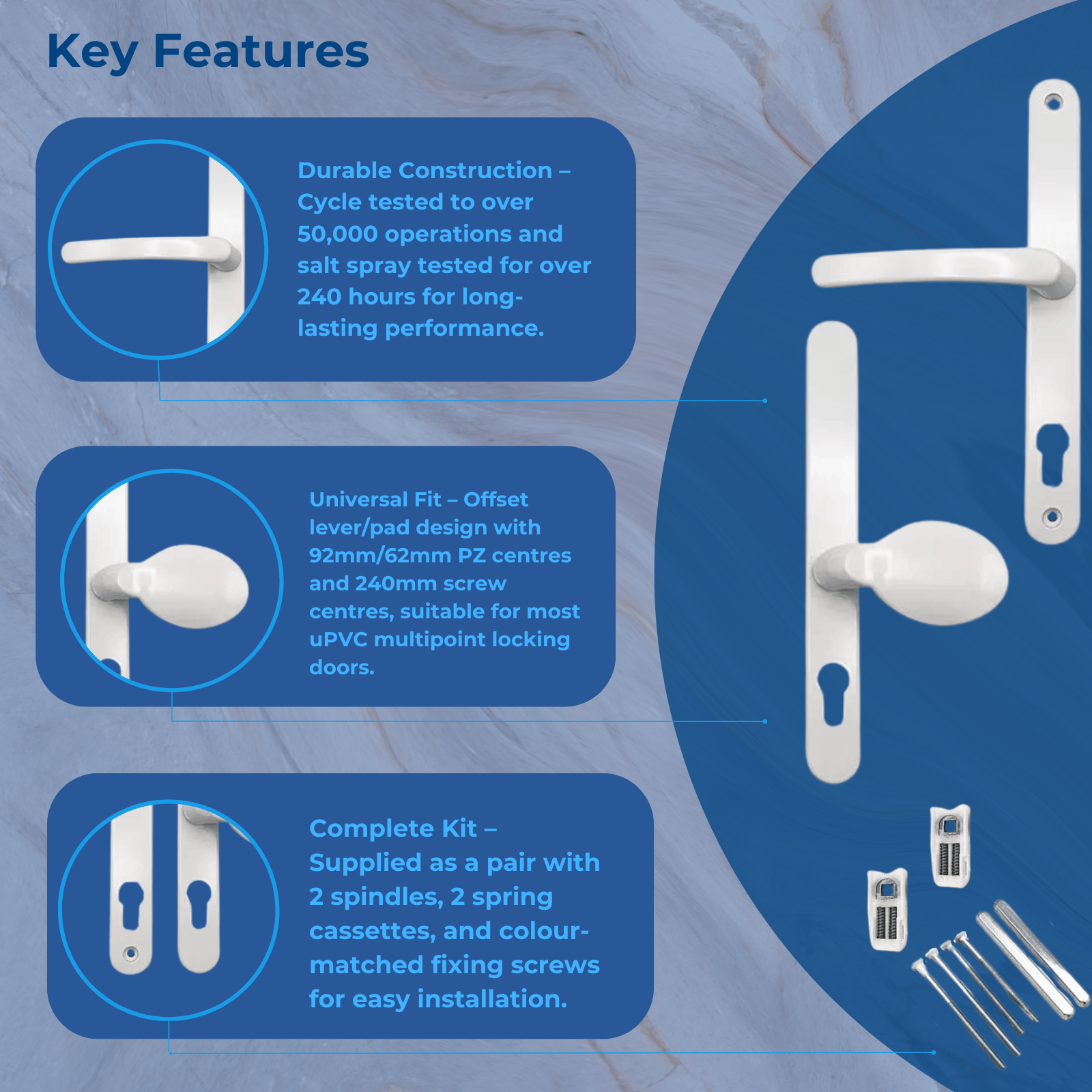

Featuring a durable backplate measuring 270mm with outer screw centres at 240mm, this handle is designed for longevity and performance. It has been cycle tested to withstand over 50,000 operations, while the polished chrome, silver, and polished brass finishes have passed rigorous salt spray testing for more than 240 hours.

Each set includes a pair of handles supplied with 2 spindles, 2 spring cassettes, and 2 colour-coordinated screws for easy installation.

Product Features:

• Sprung handle mechanism
• Backplate Length: 270mm
• Backplate Width: 32mm
• Internal Centres (PZ): 48mm
• External Centres (PZ): 87mm
• Screw Centres: 240mm
• Distance from base of euro profile to bottom screw: 17mm
• Internal Top Screw to Spindle: 106mm
• External Top Screw to Spindle: 136mm
• Supplied with: 2 spindles, 2 spring cassettes, 2 colour-matched screws
• Sold as a pair
• Non-handed (suitable for left or right-handed doors)
• Packaging: Boxed
