UPVC Multipoint Door Handles – Sprung Lever/Moveable Pad, 92mm/62mm PZ, 212mm Screw Centres

UPVC Multipoint Door Handles – Sprung Lever/Moveable Pad, 92mm/62mm PZ, 212mm Screw Centres

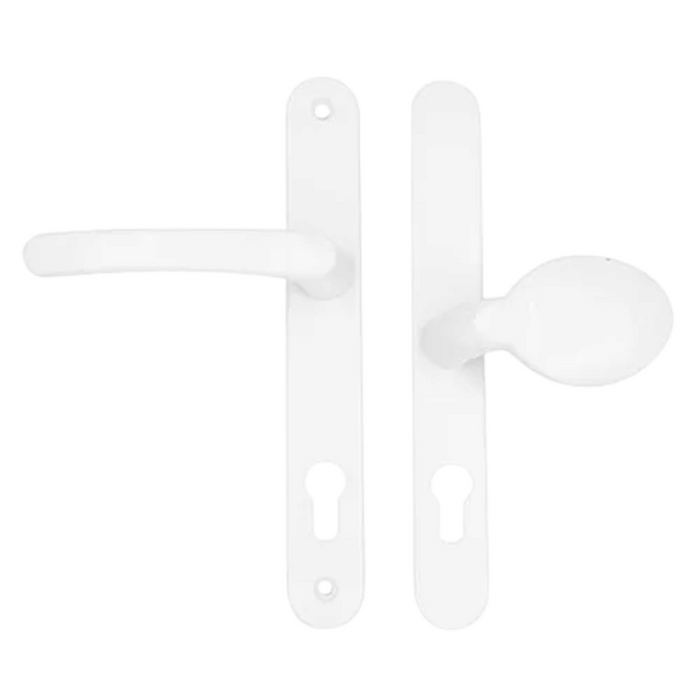

The Offset Lever/Moveable Pad Multipoint Door Handle is a premium-quality handle available in a variety of finishes, including white, black, polished chrome, silver, and polished brass. Like all  multipoint handles, each set is carefully boxed with components individually bagged to prevent damage during transit.

This handle set features a sprung internal lever handle with a 92mm PZ and an external moveable pad with a 62mm PZ. It comes with a robust 245mm backplate and screw centres set at 212mm. Designed for durability, these handles have been cycle-tested for over 50,000 operations. The polished chrome, silver, and polished brass finishes have also been salt-spray tested for over 480 hours to ensure excellent corrosion resistance.

Each pair is supplied complete with:

• 2 removable spring cassettes
• 2 x 75mm colour-matched fixing screws
• 2 x 85mm colour-matched fixing screws
• 2 x 8mm x 90mm solid spindles

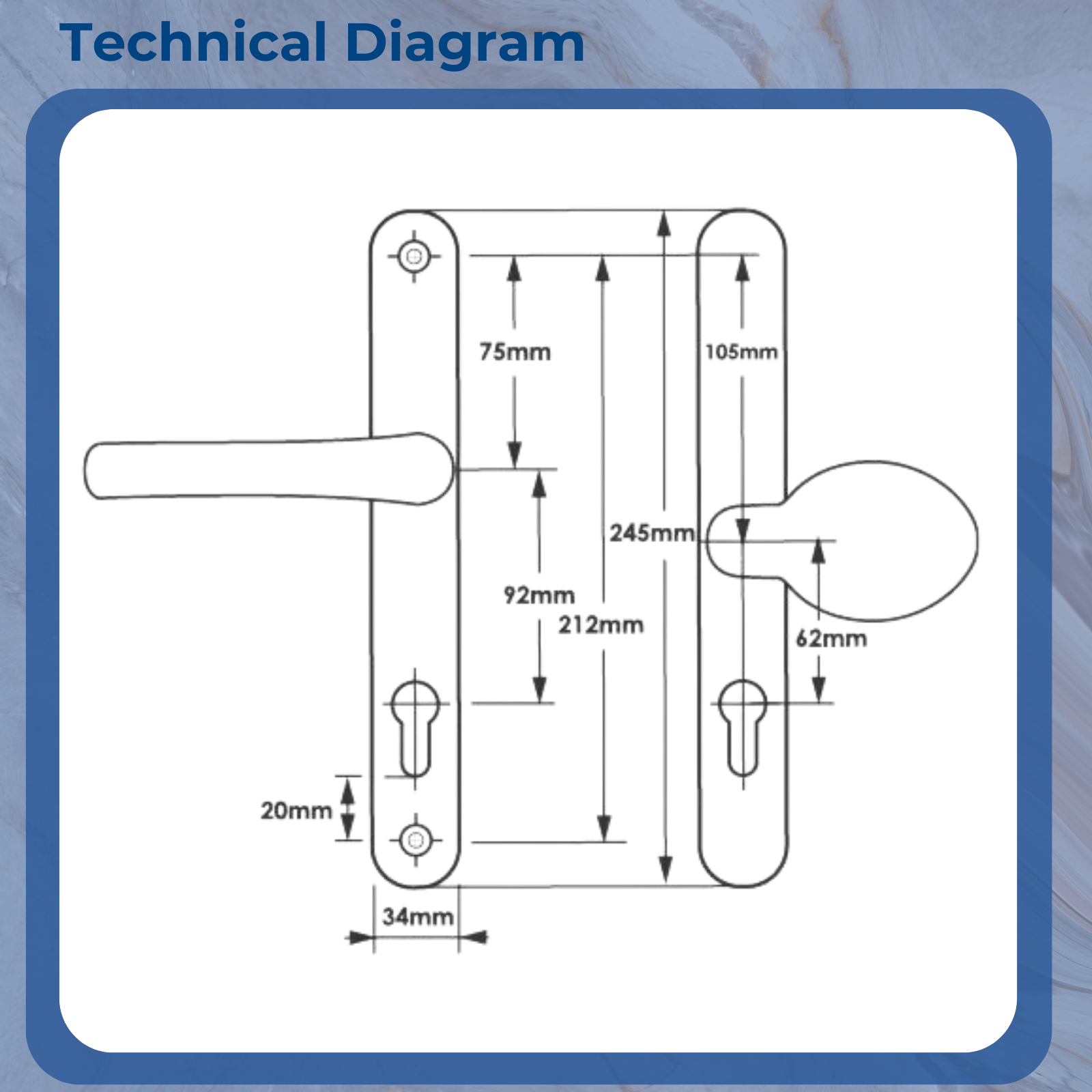

Specifications:

• Sprung mechanism for enhanced performance
• Backplate dimensions: 245mm (length) x 34mm (width)
• Centres (PZ): 92mm (lever side) / 62mm (pad side)
• Screw Centres: 212mm
• Distance from euro cut-out base to bottom screw: 20mm
• Distance from top screw to spindle: 75mm (lever side) / 105mm (pad side)
• Supplied with spindles, colour-matched screws, and 2 spring cassettes
• Sold as a pair
• Non-handed for universal fitting
• Packaged neatly in a protective box
