uPVC Offset Lever/Pad Multipoint Door Handles – 95mm/65mm PZ – 200mm Screw Centres – Sprung

The 95/65mm offset PZ lever moveable pad multipoint door handle is a high-quality and durable solution for uPVC and composite doors. It is available in a range of finishes including white, black, polished chrome, silver, and polished brass to suit various door styles.

This handle features a robust backplate measuring 250mm x 34mm with 200mm screw centres, offering compatibility with a wide range of multipoint locking systems. Built for long-lasting performance, it has been cycle tested to over 50,000 operations. The polished chrome, silver, and polished brass finishes have also undergone over 240 hours of salt spray testing to ensure resistance to corrosion.

Each pair is supplied complete with all necessary fixings, including a spindle, two spring cassettes, and two colour-coordinated screws.

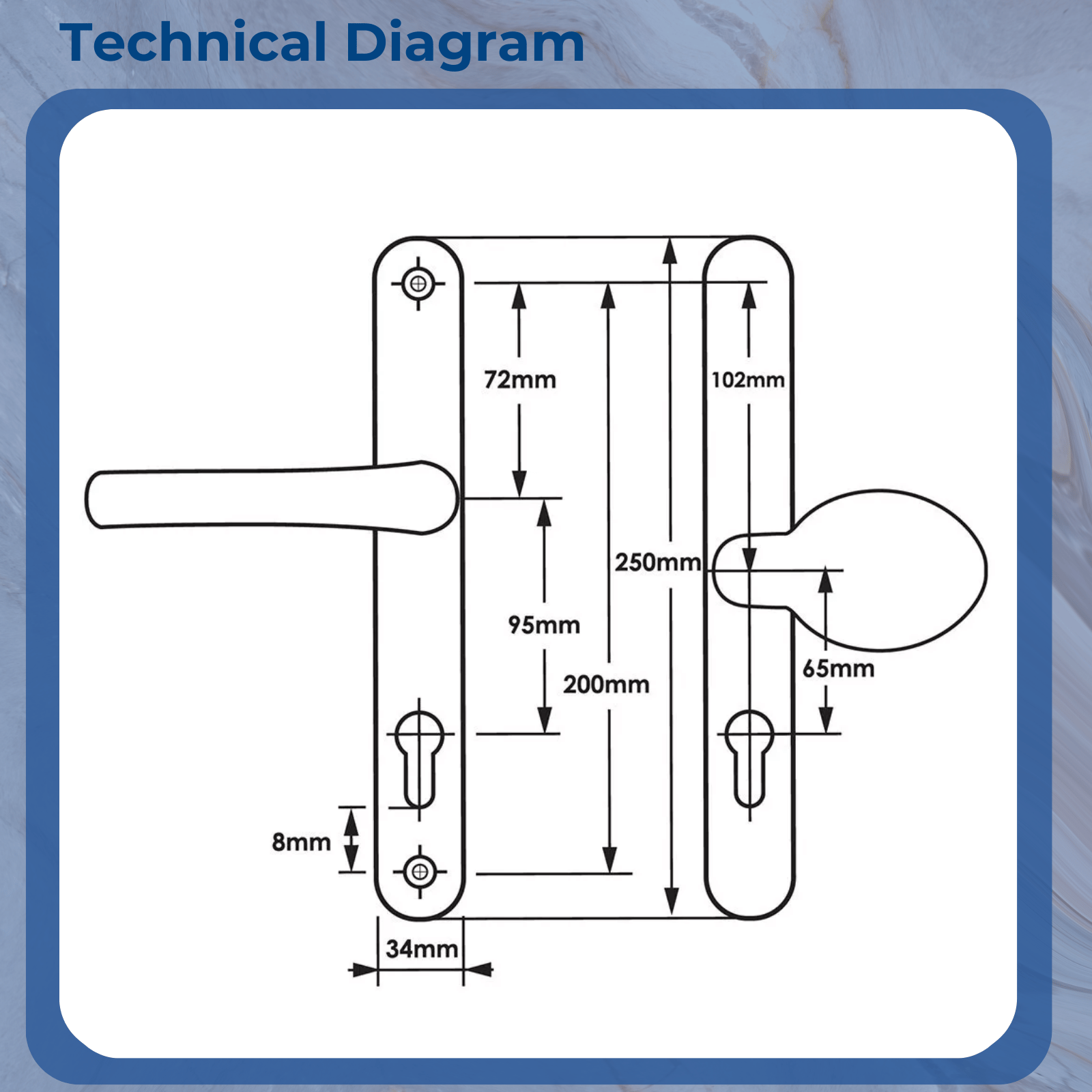

Specifications:

• Sprung mechanism
• Length: 250mm
• Width: 34mm
• Centres (PZ): 95/65mm
• Screw centres: 200mm
• Top screw to spindle (lever side): 72mm
• Top screw to spindle (pad side): 102mm
• Base of euro to bottom screw: 8mm
• Supplied as a non-handed pair
• Boxed packaging
• Includes spindles, spring cassettes, and colour-matched screws
