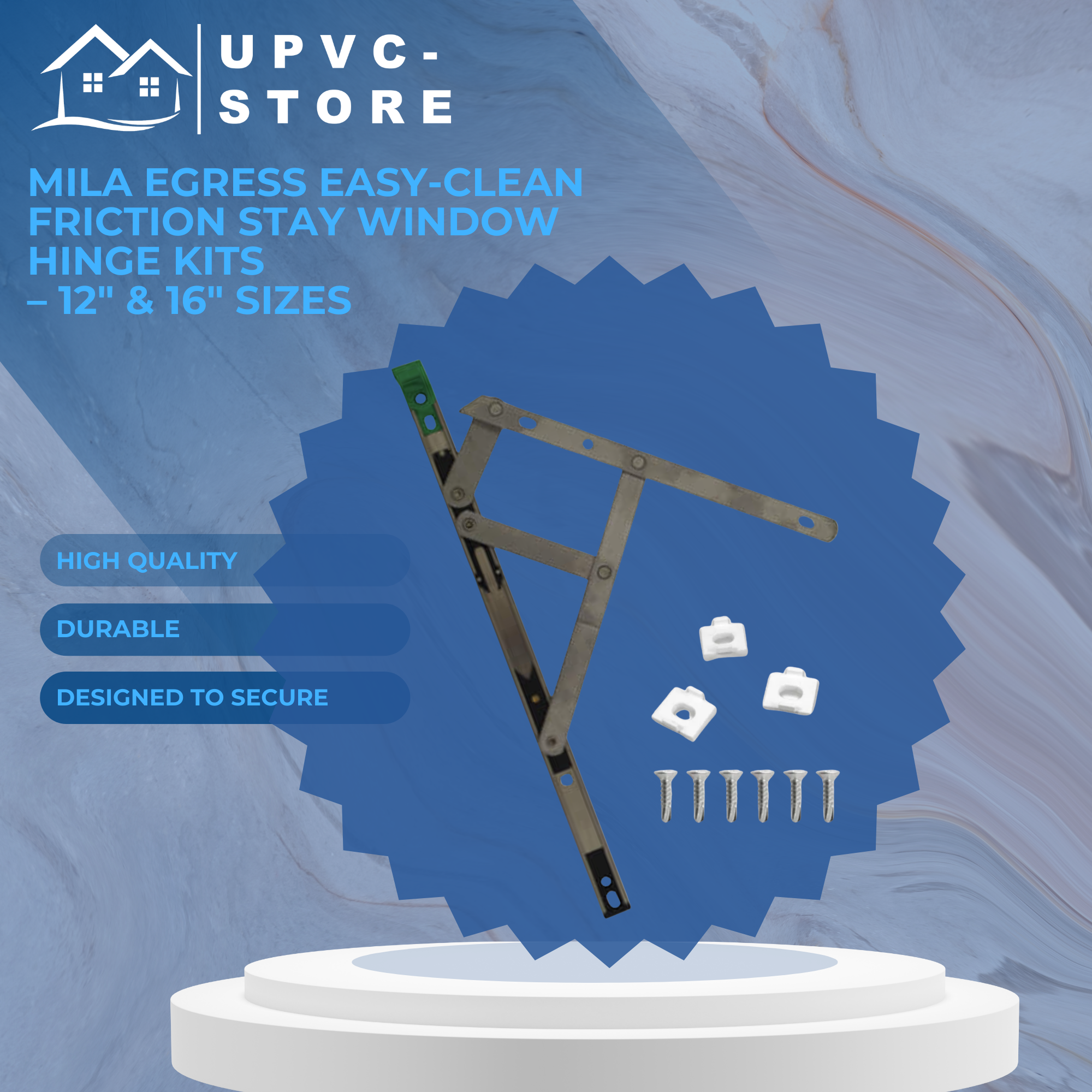

Mila Egress Easy-Clean Friction Stay Window Hinge Kits – 12" & 16" Sizes

Mila Egress Easy-Clean Friction Stay Window Hinge Kits – 12" & 16" Sizes

• Sizes: 12” (300 mm) and 16” (400 mm)
• Stack Height: 13 mm (standard)
• Type: Side-hung egress & easy-clean friction hinge
• Finish: Natural stainless steel
• Material: Ferritic stainless steel (Type 430)
• Max Sash Size:
  • 12” – up to 600 mm W × 1300 mm H
  • 16” – up to 700 mm W × 1400 mm H
• Max Sash Weight: 21 kg (12”) / 26 kg (16”)
• Opening Angle: Up to 84° (12”) / 90° (16”)
• Corrosion Resistance: BS EN 1670 Grade 4 (240 h salt-spray)
• Tested: 20,000 operational cycles

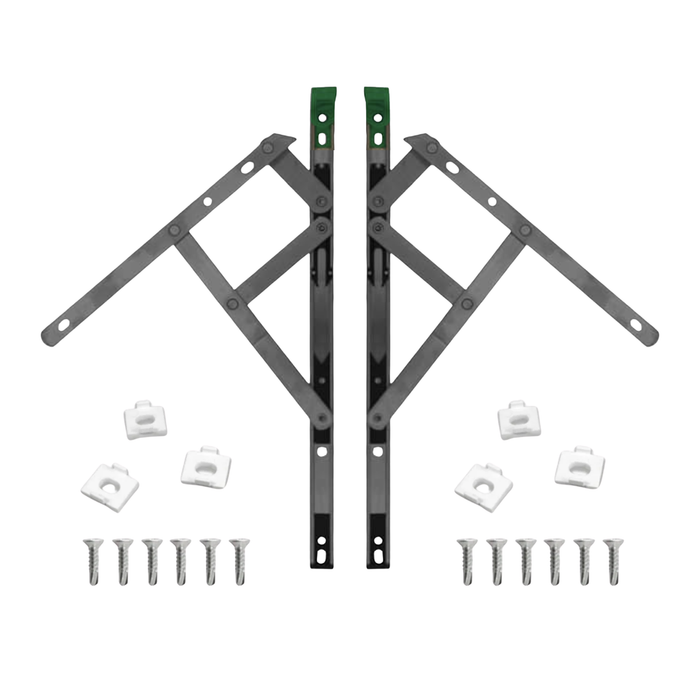

• Supplied As: Pair of hinges (2 stays)
• End Cap: Green for emergency egress identification

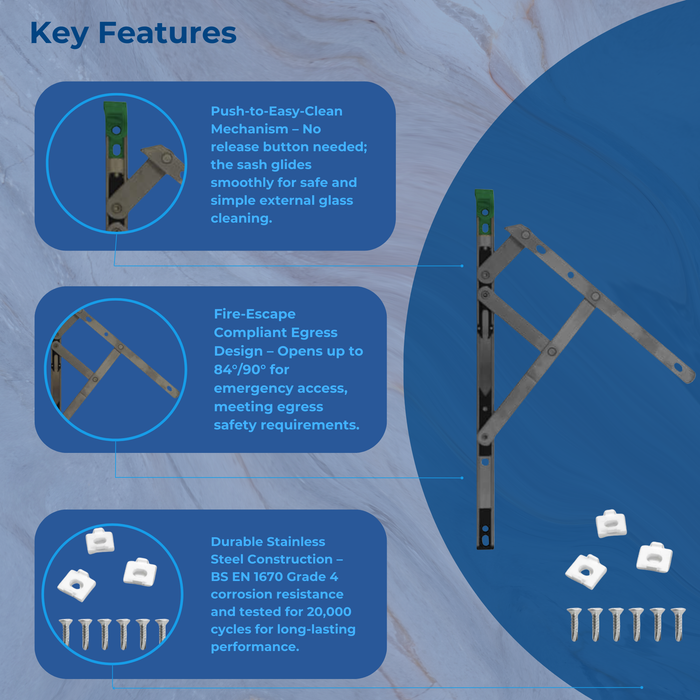

• Push-to-Easy-Clean Mechanism: Allows the sash to glide effortlessly for external glass cleaning without a release button. Safer, smoother, and more intuitive than traditional push-button designs.
• True Egress Design: Suitable for fire escape compliance
• Smooth Push-to-Clean Operation: No button required
• Durable Stainless Steel Performance: Designed for long-term reliability
• Weather Tested: BS EN 1670 Grade 4
• Precision Friction Stays: Provides controlled movement
• Compatibility: Suitable for uPVC, timber, and aluminium side-hung casements
