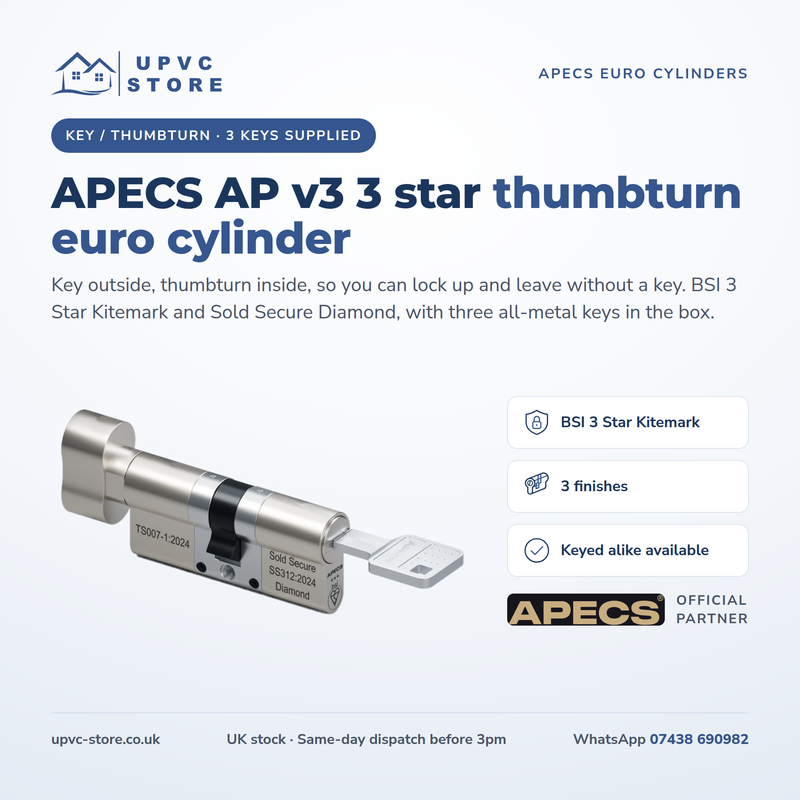

APECS AP v3 3-star Euro cylinder, thumbturn

BSI Kitemark 3 Star · Sold Secure Diamond

From $78.003 keys and a fixing screw included

Finish:

The thumbturn goes on the inside.

Add extra keys Optional $21.00 each, cut to match this cylinder. About extra keys

Supplied to order from APECS. Availability is checked before fulfilment.

Not sure it fits?Send us a photo of your cylinder and the door edge.
WhatsApp
Fitting more than one door?See the keyed-alike builder
From $78.00
Security3-star Kitemark, Sold Secure Diamond

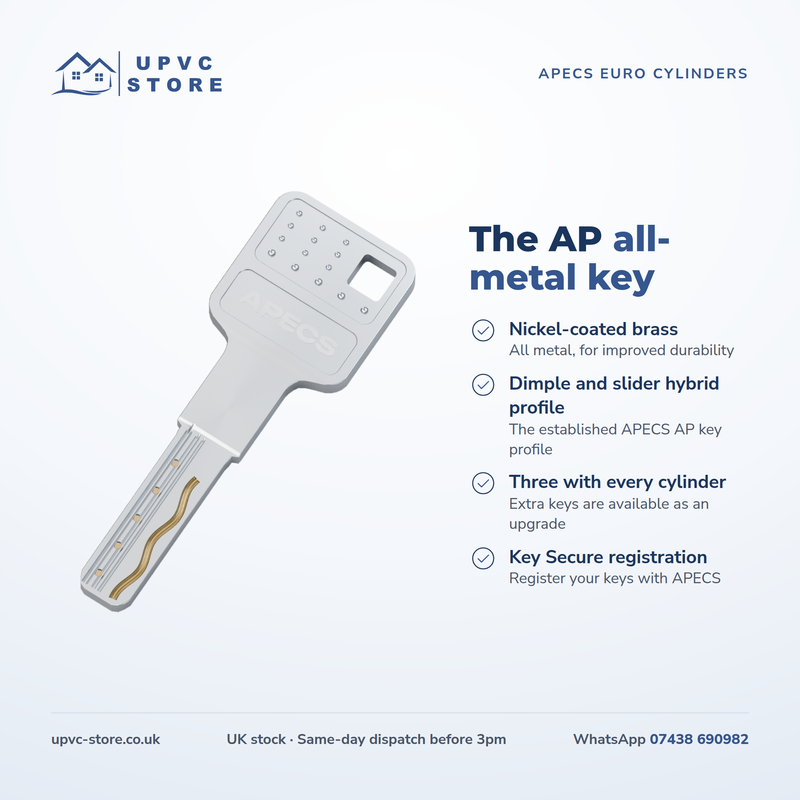

Keys3 all-metal keys

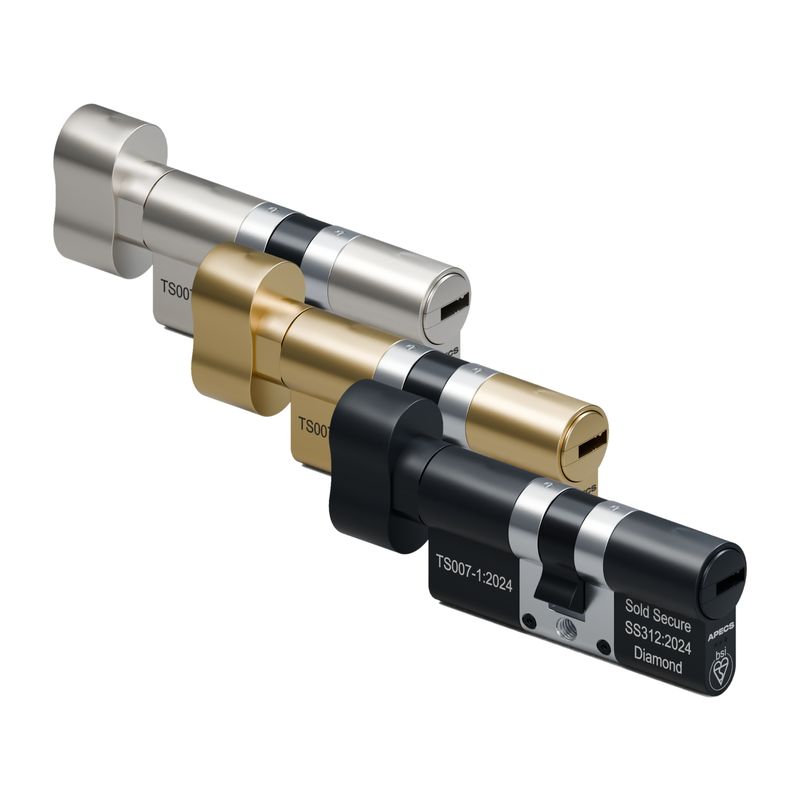

FinishesNickel, brass or black
TypeKey outside, thumbturn inside
KeyingKeyed alike available
SupplyTo order from APECS

Video

How to measure

Every size is measured from the centre of the fixing screw hole to the end of the cylinder. The video shows how, in under a minute.

Why this cylinder

BSI Kitemark 3 Star and Sold Secure Diamond

Tested to TS007-1:2024.

Snap-attack resistance

A snap-secure sacrificial point and anti-snap mechanism.

Pick and bump resistance

4 anti-pick pins on each side and a double locking slider mechanism.

Drill resistance

Hardened pins in the shell and core.

Plug-extraction resistance

Specified by APECS for the AP v3 Euro cylinder.

Freeze-attack resistance

A cold-resistant, high-torsion spring.

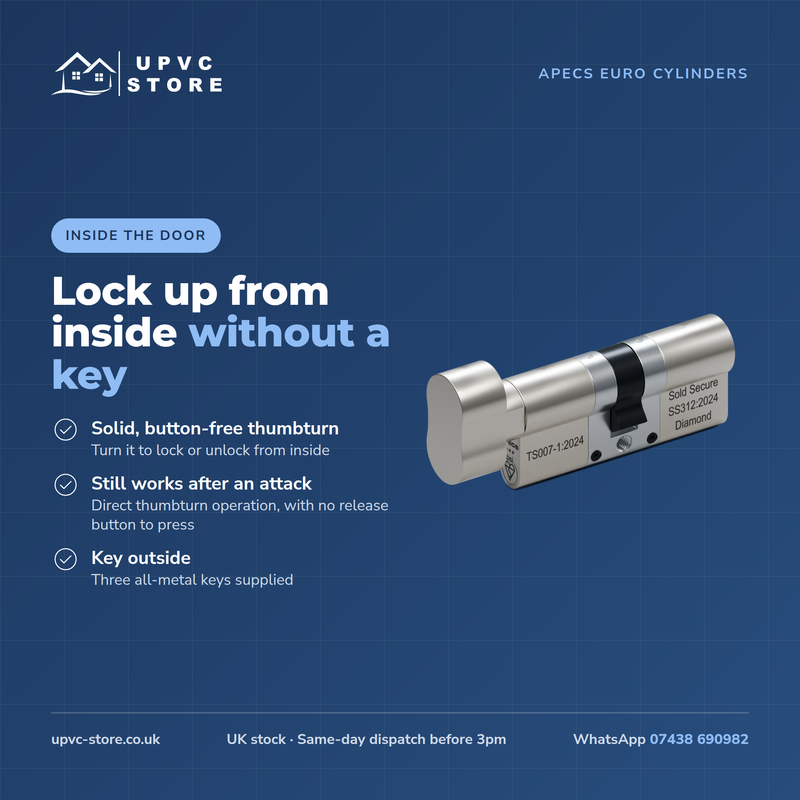

Thumbturn inside

Lock and unlock from inside without a key.

In the box

What you get

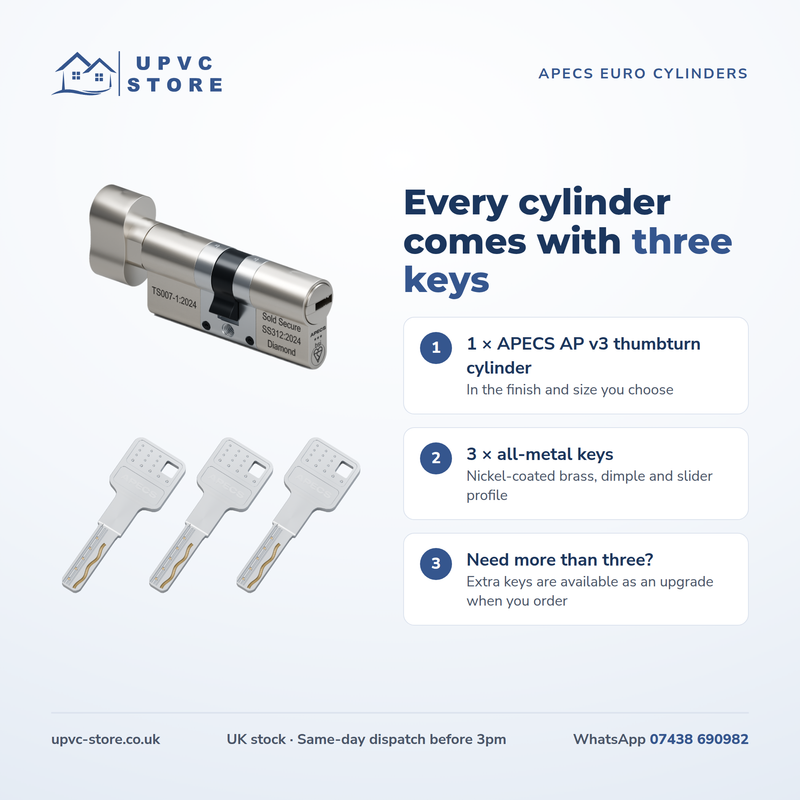

One AP v3 Euro thumbturn cylinder in your finish and sizes, 3 all-metal keys and a fixing screw. Extra keys are sold separately.

In the box: an APECS AP v3 Euro thumbturn cylinder, three all-metal AP keys and a fixing screw

Keyed alike, extra keys and master suites

One key, several doors

Add extra keys with this cylinder, or plan a set in the APECS Builder.

Keyed alike diagram: one APECS AP key opens a brass Euro key/key front door, a black Euro thumbturn back door, a nickel rim nightlatch and a nickel half cylinder garage

Keyed alike

One key opens several doors.

  • Mix key/key, thumbturn, rim and half cylinders on one key
  • One keyed-alike charge for each cylinder after the first
  • A set includes 3 keys in total

Ask on WhatsAppEmail us

Optional extra · 1 key per purchase

Extra AP keys

A cut key for this cylinder, or for one you already have.

  • 1 key per purchase
  • Cut to match your cylinder or keyed-alike set
  • For a cylinder you already have, add the key code from your key card

$21.00 each

Ask on WhatsAppEmail us

One APECS AP master key opens four Euro cylinders, and each door keeps its own key. 1 key per purchase; door keys and cylinders are not included

Master suite

Each door has its own key, and a master key opens the doors you choose.

  • AP v3 Euro cylinders
  • Every cylinder is repinned to order
  • No keys included: order each door key and at least one master key

Ask on WhatsAppEmail us

Accessories

Optional extras

Sold separately. Not included with any cylinder or key.

AP keys only Optional extra · Not included

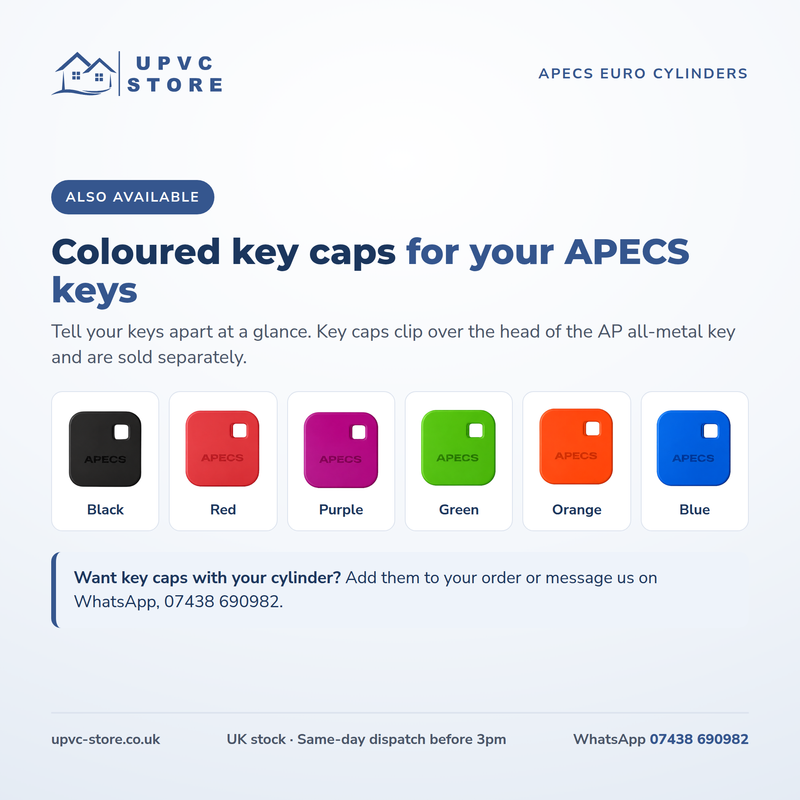

AP key caps

Coloured caps for AP metal keys, so you can tell your keys apart.

$3.00

Any cylinder Optional extra · Not included

APECS Dry Lube, 50 ml

A lock lubricant for any cylinder.

$22.00

Specification

BrandAPECS
ModelAP v3
TypeKey / thumbturn
MaterialBrass and hardened carbon steel
MechanismPin tumbler and slider hybrid, 9 pins
DiffersIn excess of 100,000

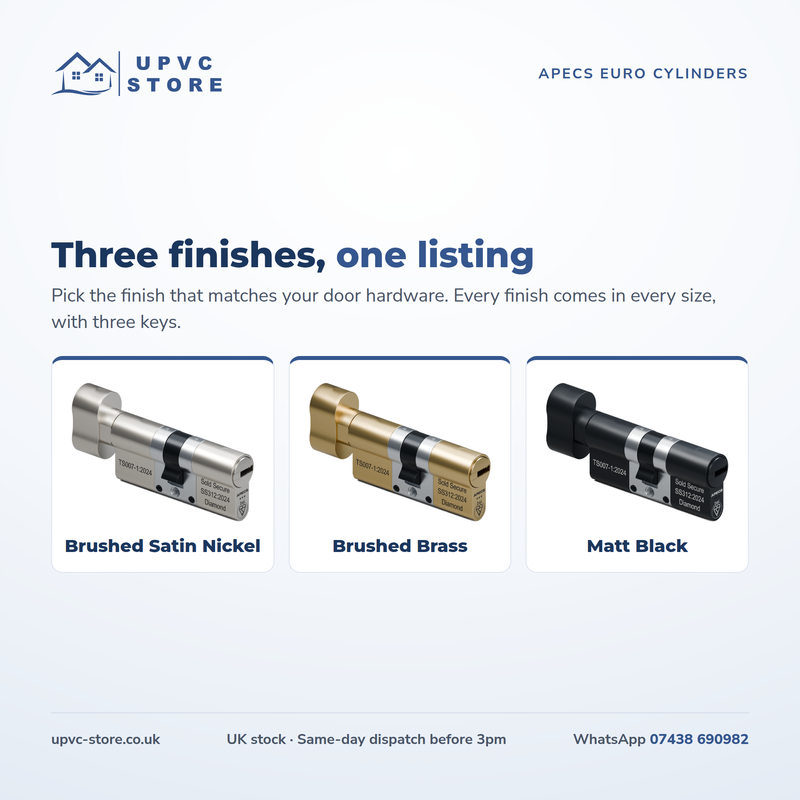

FinishesBrushed Satin Nickel, Brushed Brass, Matt Black
Keys3 all-metal keys with a standard single cylinder
BSI 3 Star KitemarkKM621947
Sold SecureDiamond, SS312:2024, 24622026
TS007-1:2024Pass
BS EN 1303:2015160B0C6D
Suitable foruPVC, composite, aluminium and timber doors with a euro profile lock
Technical drawingSizes are measured from the centre of the fixing-screw hole to each end of the body.
Technical drawing of the APECS AP v3 Euro key/thumbturn cylinder: the standard Euro profile, 17 mm barrel, 33 mm high and 10 mm fin, with the sizes A and B measured from the fixing-screw hole

Common questions

How many keys do I get?

A standard single cylinder includes 3 all-metal keys. A complete AP keyed-alike set includes 3 keys in total, however many cylinders it has. Extra keys are sold separately.

Can I have several cylinders on one key?

Yes. Compatible AP cylinders can be custom-built to share one key. There is one keyed-alike charge for each cylinder after the first in each set.

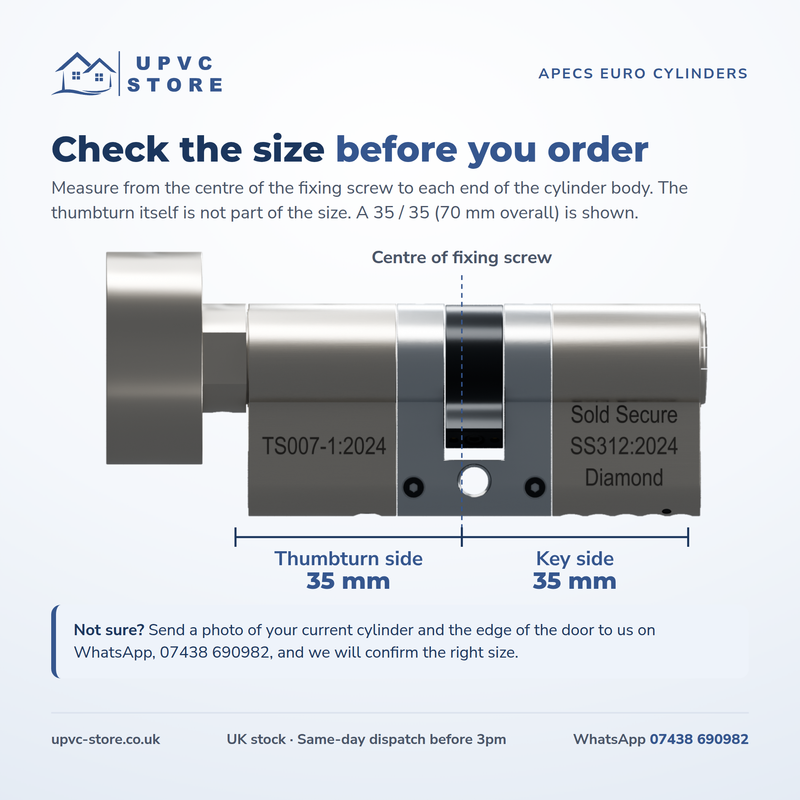

How do I measure?

From the centre of the fixing-screw hole to each end of the cylinder body. Internal is the thumbturn side and external is the key side. Do not include the thumbturn itself. For example, internal 35 mm plus external 35 mm is 70 mm overall.

What doors does it fit?

uPVC, composite, aluminium and timber doors with a euro profile lock.

How is it supplied?

Supplied to order from APECS. Availability is checked before fulfilment. Keyed-alike and master-suite cylinders are custom-built to your specification. Please review the applicable returns terms before purchase.
