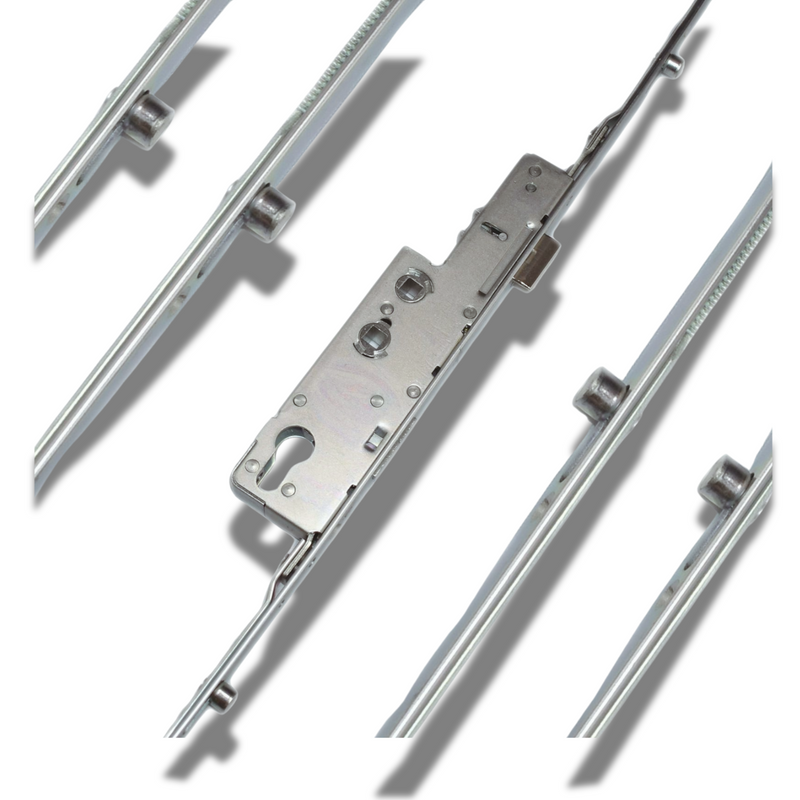

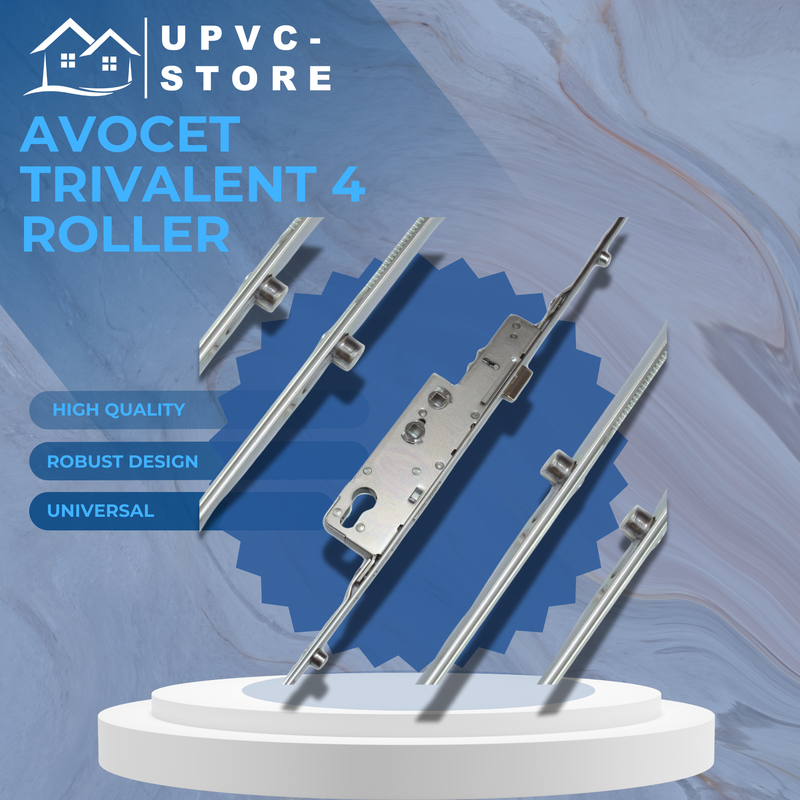

Avocet uPVC Trivalent 4 Roller Multipoint Door Lock Double Glazing 35mm Backset

Avocet WMS Trivalent 4 Roller Door Lock – Available at UPVCSTORE

UPVCSTORE offers the Avocet WMS Trivalent 4 Roller Door Lock, a high-quality product from Avocet Hardware, a trusted leader in the window and door hardware industry. This lock is suitable for both left- and right-handed doors, featuring a reversible latch and compatibility with lever/lever or lever/pad door handles. Constructed from durable steel, it boasts a modern Trivalent silver finish for added corrosion resistance.

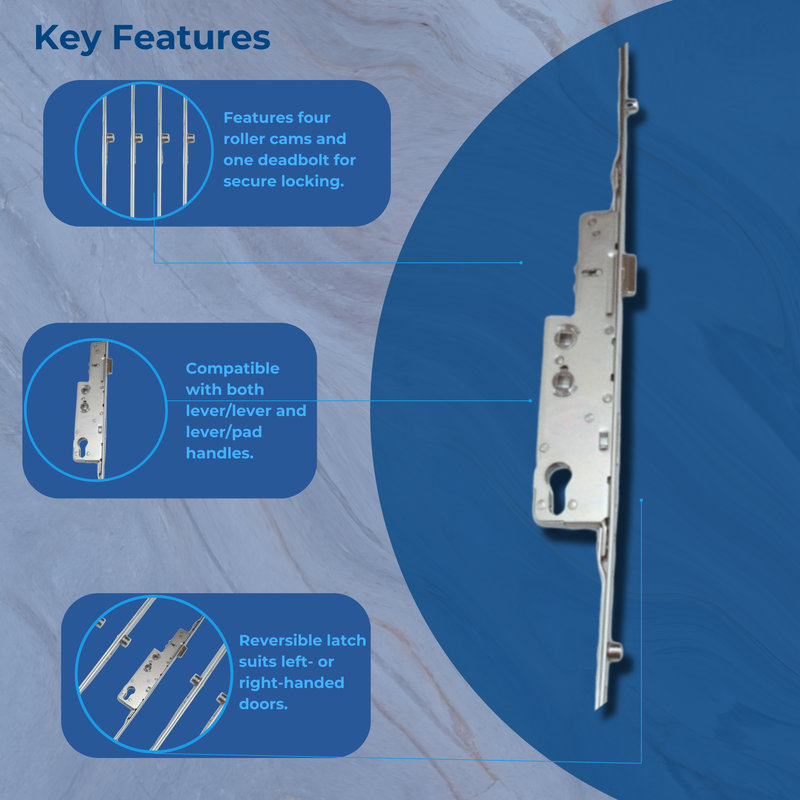

Key Features:

• Locking Points: 4 Roller cams
• Backset: 35mm
• PZ Centres: 92mm / 62mm
• Faceplate Width: 16mm
• Compatible with lever/lever and lever/pad operations
• Reversible centre latch for use on left- or right-handed doors

Important Things To Consider Before Ordering:

1. Backset and PZ Centres: Ensure these measurements match your existing lock to align with the routed holes in your door for the handle and euro cylinder.

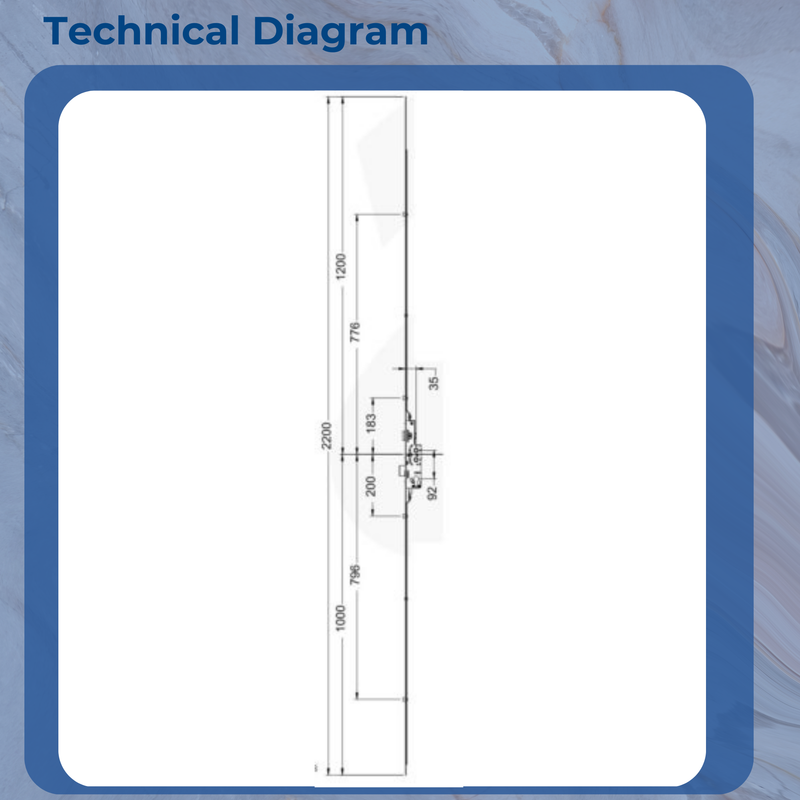

2. Height Adjustment: The lock’s height is provided in the technical diagram. It may need trimming at the ends to fit your door.
3. Roller Cam Distance: Measure the distance between the rollers on your current lock. If they don’t match exactly, the keeps can be repositioned to accommodate the new lock.
