Axim TC9600 Transom Door Closer – Size 2, Non Hold Open

Axim TC9600 Transom Door Closer – Size 2, Non Hold Open

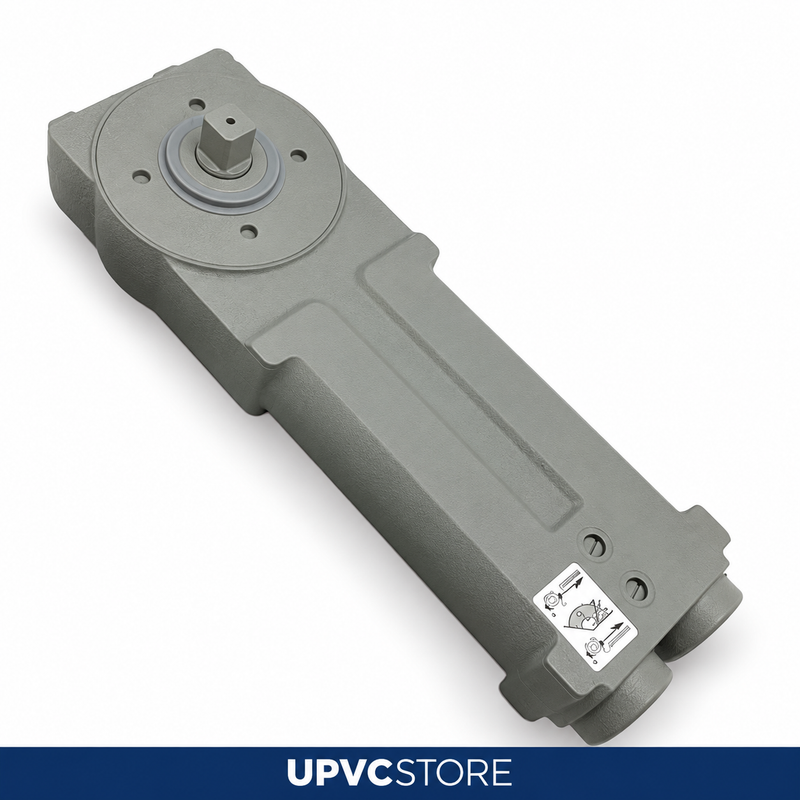

The Axim TC9600 provides controlled overhead door closing from a concealed body within the transom. This size-2, non-hold-open version has the extended spindle used with patch fittings and door rails. It suits single-action and double-action doors within the stated width and weight limits.

Technical information

• Model: TC9600; supplier reference ATC960200.
• Closing power: size 2.
• Door width: 751–950mm.
• Maximum door leaf weight: 100kg.
• Separate valves for closing speed and latching speed adjustment.
• Pre-set cushion back-check.
• Non-hold-open operation.
• Extended spindle compared with the TC8800.
• Body unit and fixings with 70mm bracket.

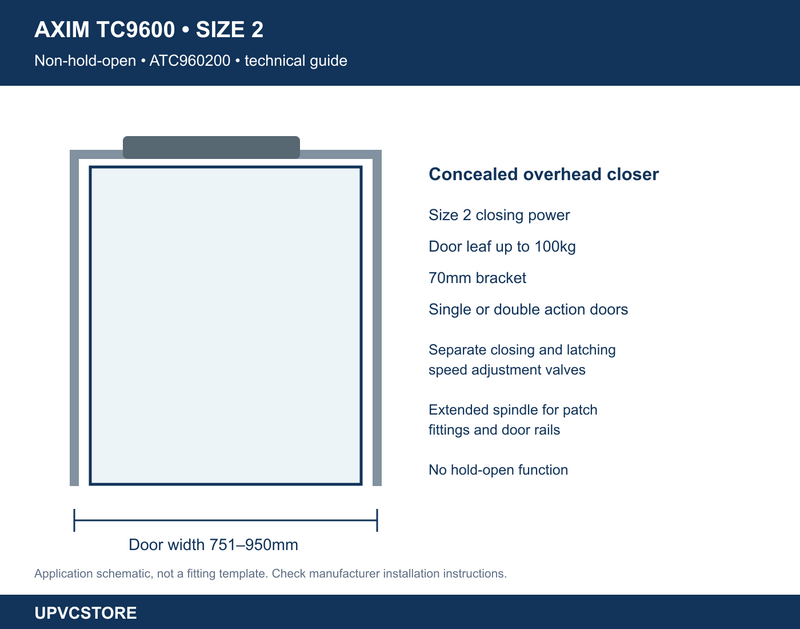

Window Ware specifies conformity to EN 1154 and a 30-month manufacturer's guarantee, subject to the manufacturer's terms. Check the spindle, bracket and door preparation against the manufacturer's fitting instructions before ordering. The gallery guide is an application schematic, not a drilling template.
