UPVCSTORE GENUINE ERA PART
Warmcore & Liniar Bi-Fold Doors · Lock Repair

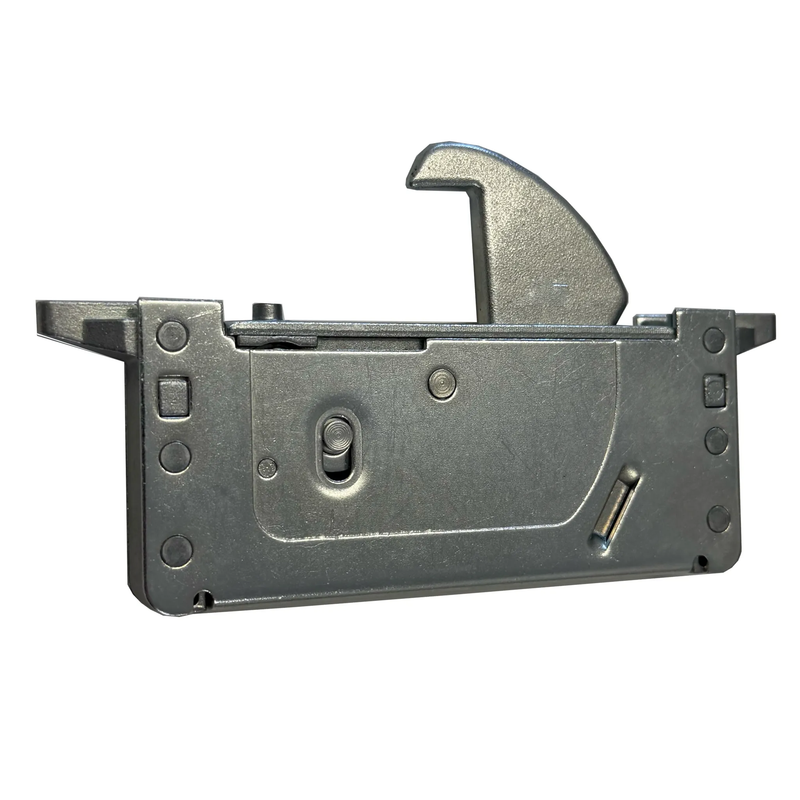

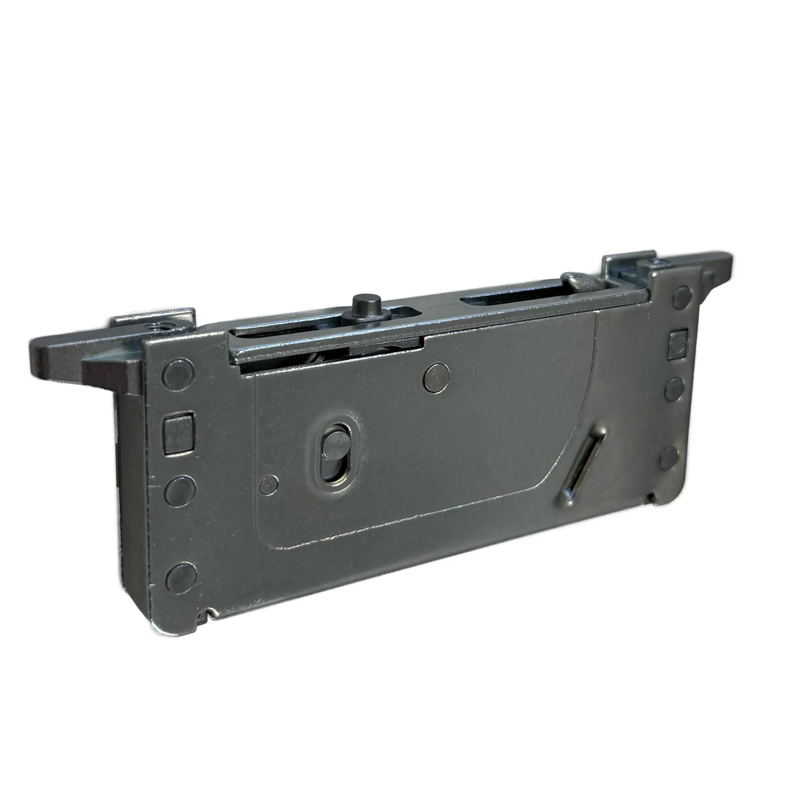

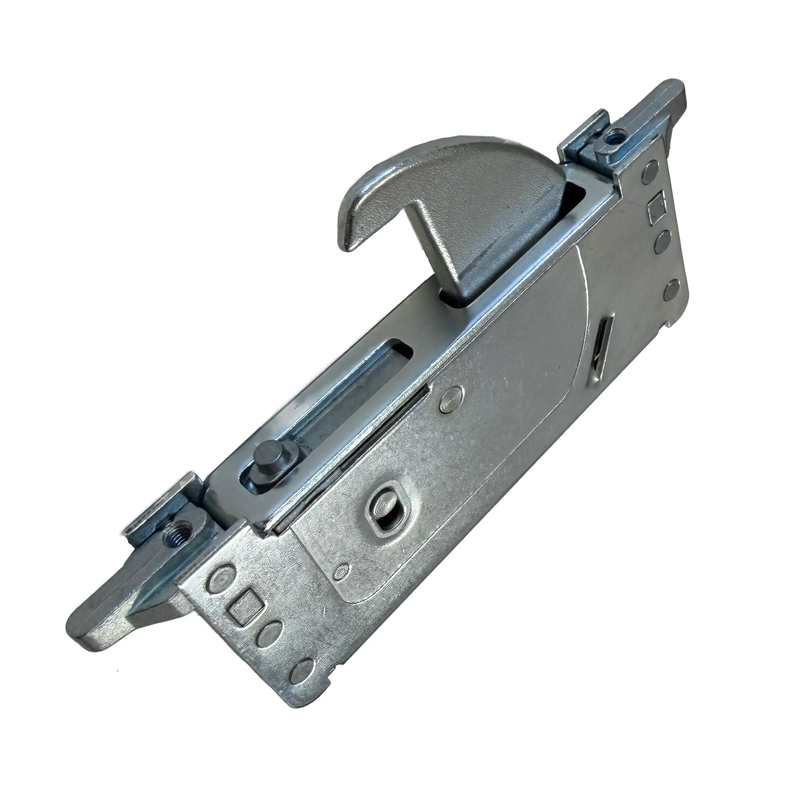

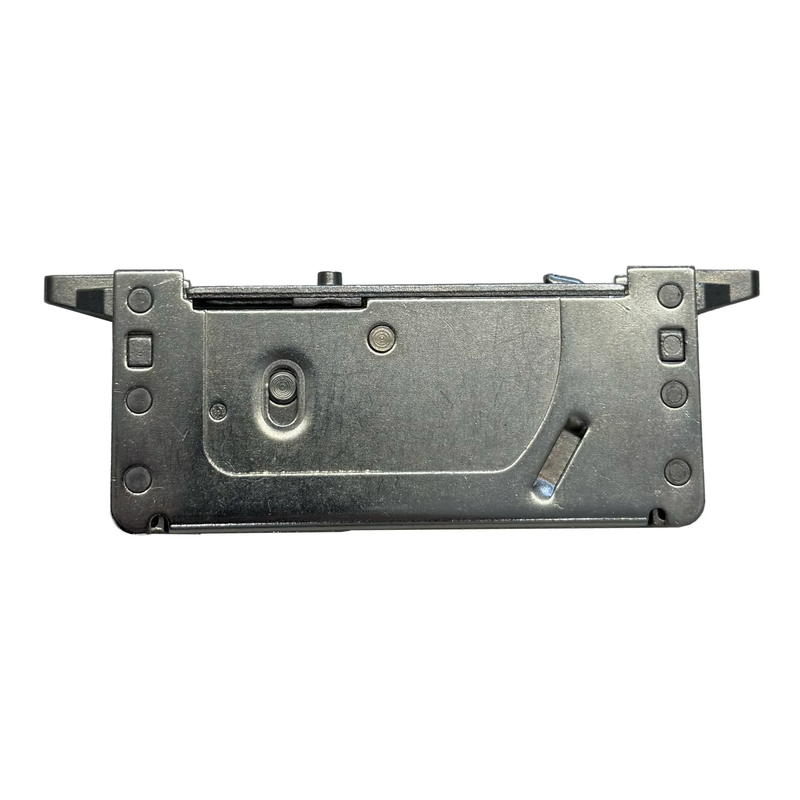

ERA Bi-Fold Hook Box for Warmcore & Liniar Doors
Hook box only — the deadlocking hook that pulls your folding leaf tight. One per pack.
98mm
SCREW CENTRES
140mm
LENGTH (TAB TO TAB)
50mm
DEPTH

This is the genuine ERA bi-fold hook box for Warmcore (Synseal) and Liniar folding door systems. It carries the deadlocking hook that throws into the keep to pull the folding leaf tight against the frame and hold it secure. This is the hook box only — not the handle and cylinder-operated centre gearbox — and it is one of the parts most likely to wear, round off or seize on a bi-fold lock strip. Replacing just the hook box restores positive locking without renewing the whole mechanism.

The bi-fold hook is unique and is not the same as the hook used on standard composite or uPVC doors, so this fits bi-fold door systems only. It bolts onto your existing Warmcore or Liniar lock strip on 98mm screw centres. Supplied singly — one hook box per purchase.
Replace the hook box if…
• The hook will not throw out or pull back in
• The hook is worn or rounded and the leaf no longer pulls tight
• The hook has cracked or snapped
• The door will not stay locked or feels loose when shut
• There is grinding or binding as the hook engages the keep
Key Features
✓  Genuine ERA part for Warmcore & Liniar bi-folds ✓  Houses the deadlocking hook that secures the leaf
✓  Hook box only — bolts to your existing lock strip ✓  98mm fixing screw centres
✓  Plated steel — corrosion resistant ✓  Supplied singly — one hook box per pack
Specifications
Brand ERA (genuine)
Product type Bi-fold door hook box (hook box only)
Suits Warmcore (Synseal) & Liniar bi-fold doors
Screw centres 98mm
Overall length (tab to tab) 140mm
Faceplate width 16mm
Depth 50mm
Locking action Single deadlocking hook
Finish Plated steel
Supplied Singly — one hook box per pack
In the box
1 × ERA bi-fold hook box
Hook box only — the centre gearbox, handles, cylinder, keeps and lock strip are not included.
Frequently asked questions
Is this the centre gearbox?
No. This is the hook box only — the part that carries the deadlocking hook. The handle and cylinder-operated centre gearbox is a separate component.
Will it fit my door?
It suits Warmcore (Synseal) and Liniar bi-fold systems. The bi-fold hook is unique and will not fit standard composite or uPVC doors. Check the 98mm screw centres and 140mm length against your existing hook box before ordering.
How do I fit it?
Expose the leaf's lock strip, unscrew the old hook box and bolt the new one on using the same 98mm screw centres. Refit and check the hook throws cleanly into the keep before final tightening.
How many do I get?
One hook box per purchase. Order the quantity you need if you are replacing more than one.
