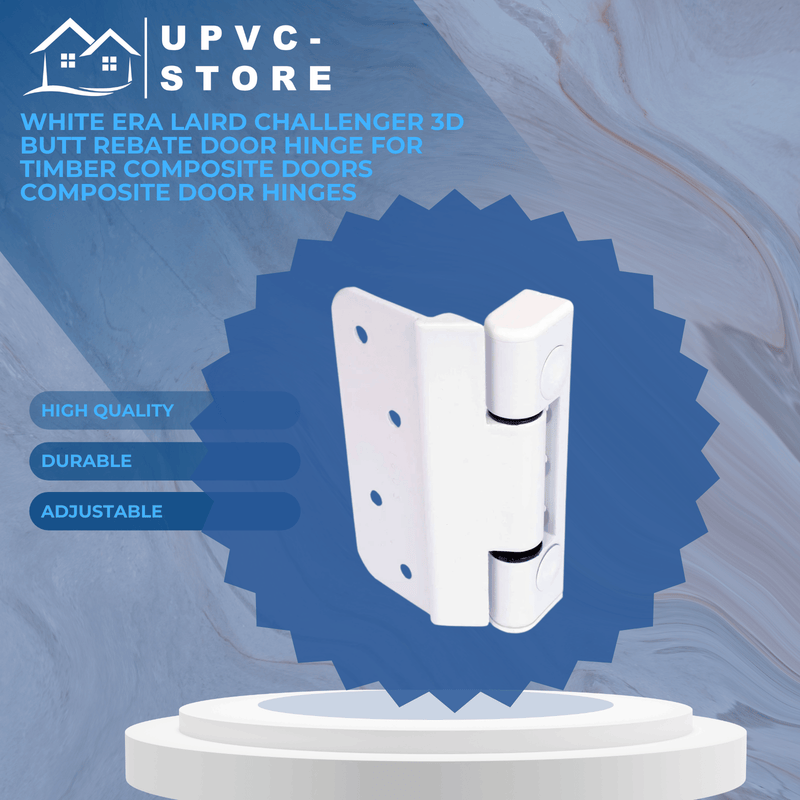

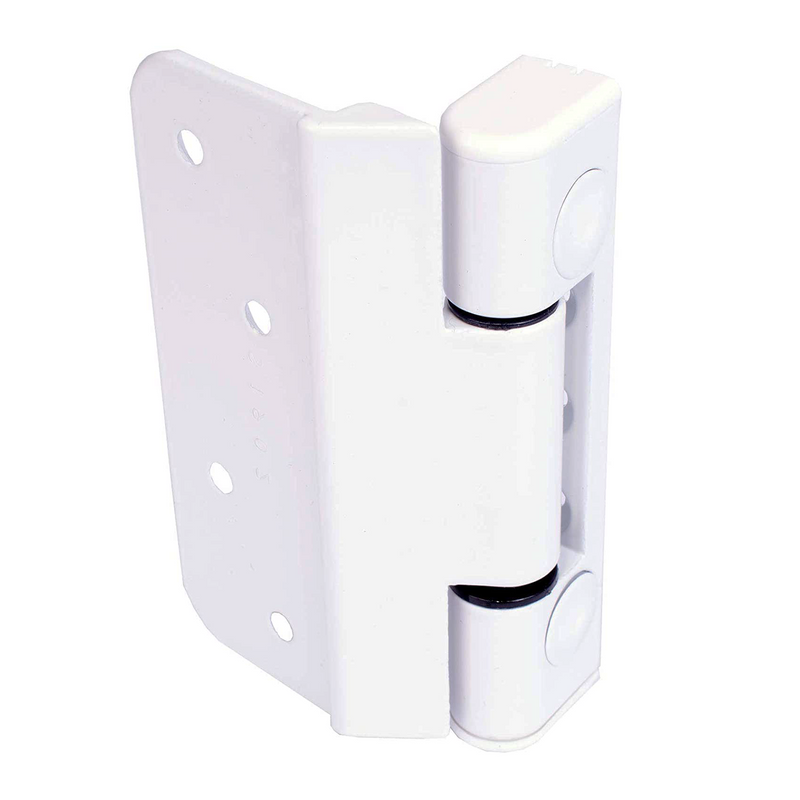

White Era Laird Challenger 3D Butt Rebate Door Hinge for Timber Composite Doors

Composite Door Hinges

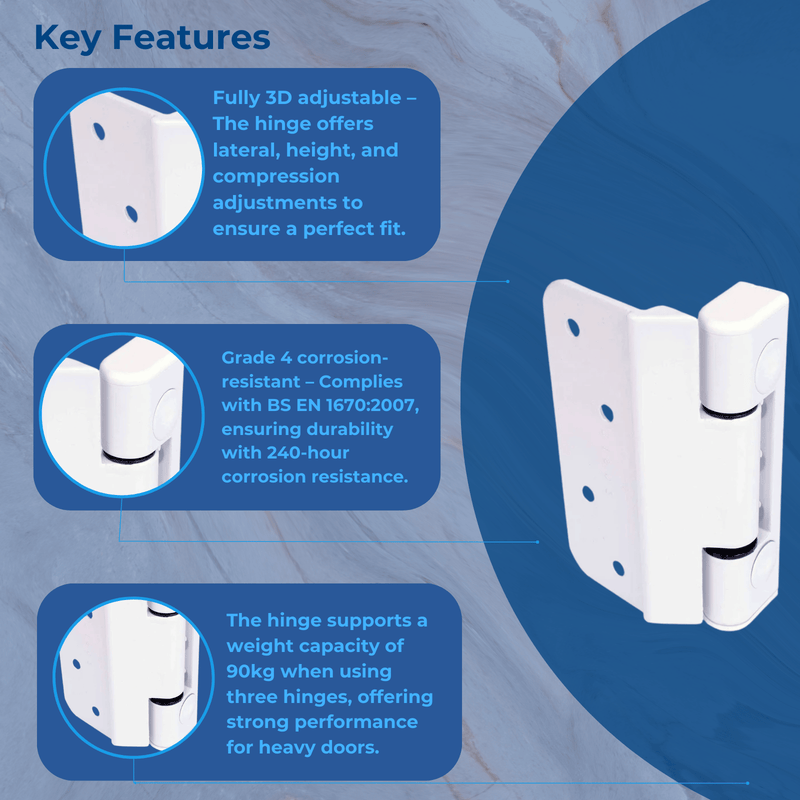

Key Features:

• Fully 3D adjustable
• Durable body
• For use on timber and composite doors
• Suitable for both inward and outward opening doors
• 1 x Hinge supplied (33.3 kg Weight capacity per hinge)

This Era Challenger Composite Door Hinge has been especially designed to meet the requirements of BS EN 1670:2007 and is Grade 4 Corrosion Resistant (240 hours). It is suitable for use on composite and timber doors and is fully 3D adjustable (Lateral, Height, and Compression). It features a secured security pin for inward and outward opening doors, a classic durable body with superior performance and weight loading capacity of 90kg if 3 hinges are used.

Features:

• Meets BS EN 1670:2007 requirements
• Grade 4 corrosion resistant (240 hours)
• Endurance tested in excess of 50,000 cycles
• Suitable for use on composite and timber doors
• Suitable for use on inward and outward opening doors
• Fully 3D adjustable
• Secured Security Pin
• Durable classic body
• 90kg Weight loading capacity if 3 hinges are used

What's in the pack?

• 1 x Era Challenger White Composite Door 3D Hinge Body
• 1 x Era Challenger White Composite Door 3D Hinge Flag
• 1 x Top Cap
• 1 x Bottom Cap
• 4 x Adjuster Cap
• 1 x Flag Bush
• 1 x Spring Bush
• 1 x Hinge Pin

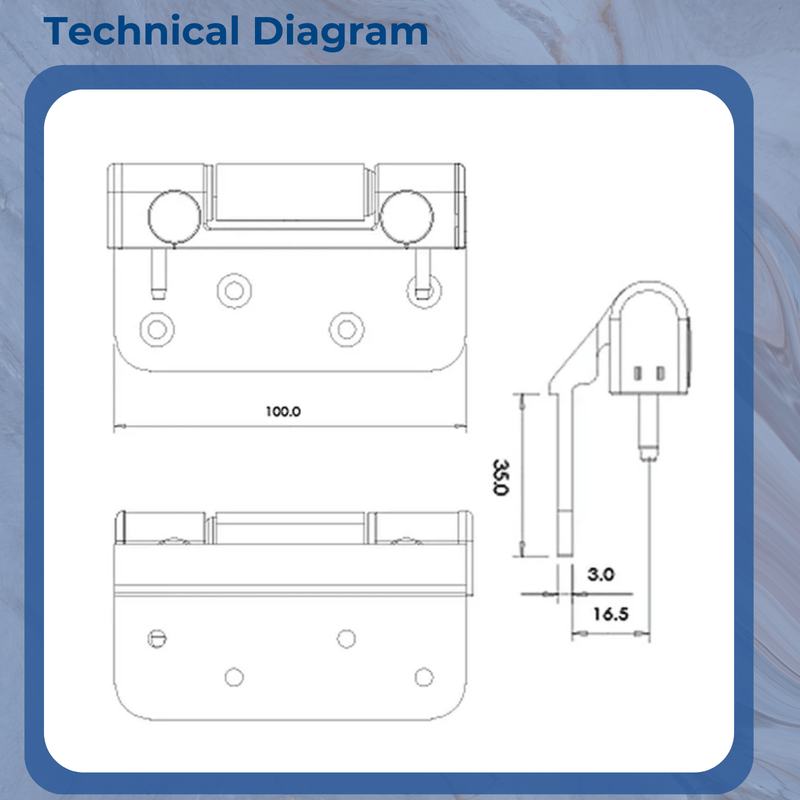

Measurements:

• Lateral 3D adjustment: +2mm / -2mm
• Vertical 3D adjustment: +3mm
• Compression 3D adjustment: +0.5mm / -0.5mm
