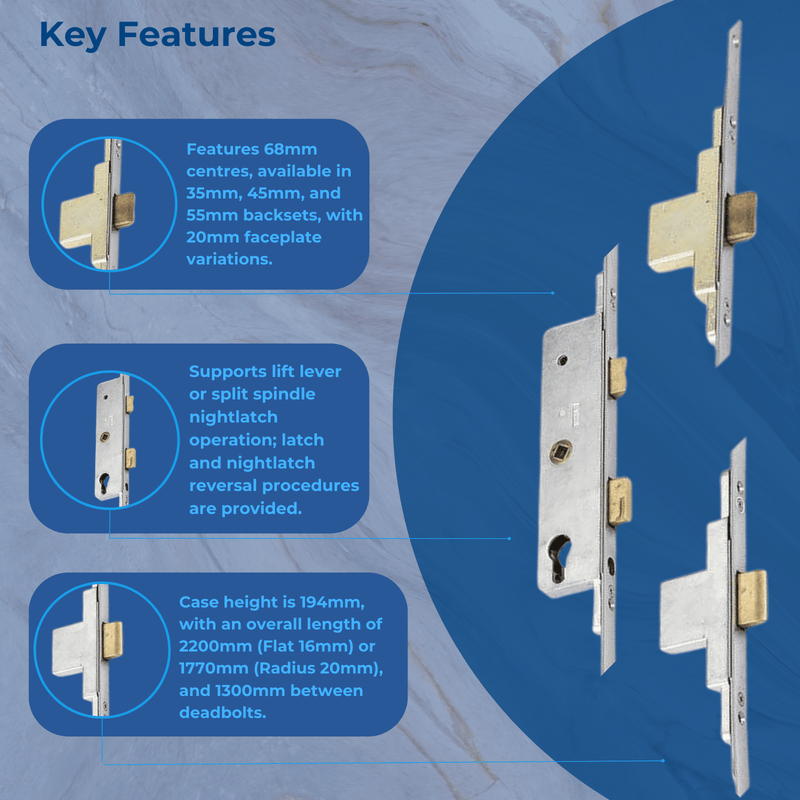

SL16 locks feature 68mm centres and 35mm backset.
Not to be confused with the A - G series locks with 68mm centres and 39mm backset which are now discontinued and only available as a case A or F gearbox.
20mm faceplate variations.
Backset: 35mm 45mm and 55mm.
Operation: Lift lever or split spindle nightlatch.
Latch reversal: Undo the screw or screw in the latch to remove. Reverse, reinsert and replace screw.
Nightlatch reversal: Insert the split spindle 2/3 of the way in on the internal side and 1/3 of the way in on the external side.

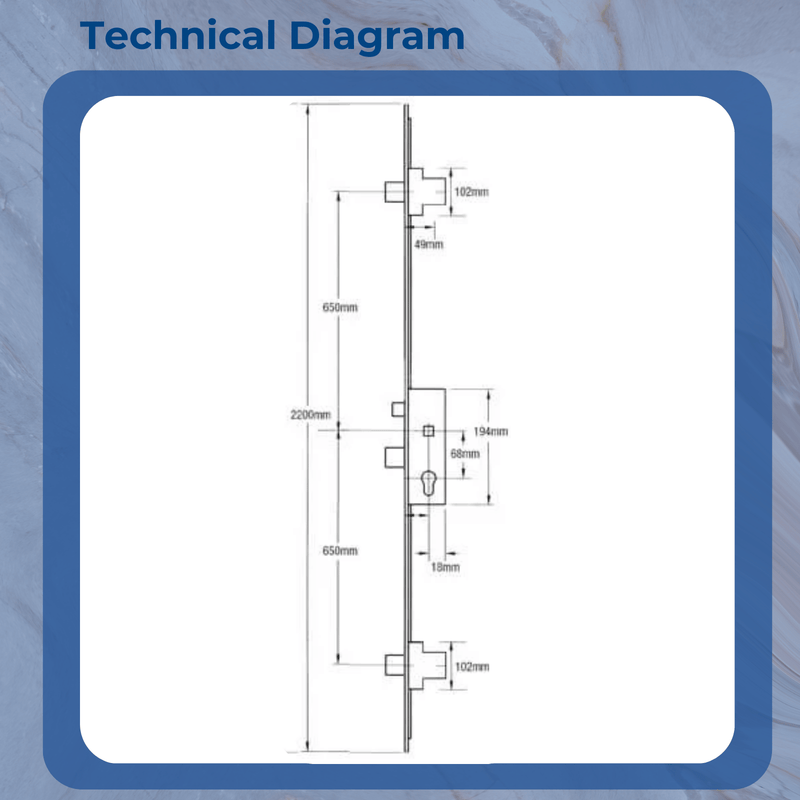

Technical Information-
- Centres: 68mm
- Case height: 194mm
- Case depth: Backset + 18mm
- Overall length: SL16 - 2200mm - Flat 16mm
- Overall length: SL160052 - 1770mm - Radius 20mm
- Overall length: SL160108 - 1770mm - Radius 20mm
- Overall length: SL160074 - 1770mm - Radius 20mm
- Distance between deadbolts: 1300mm
