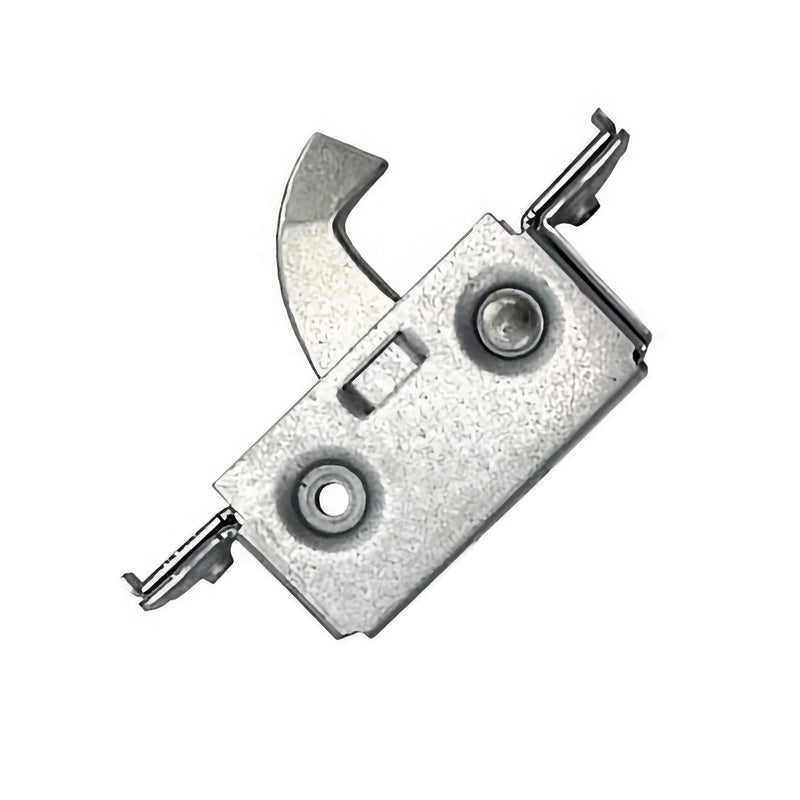

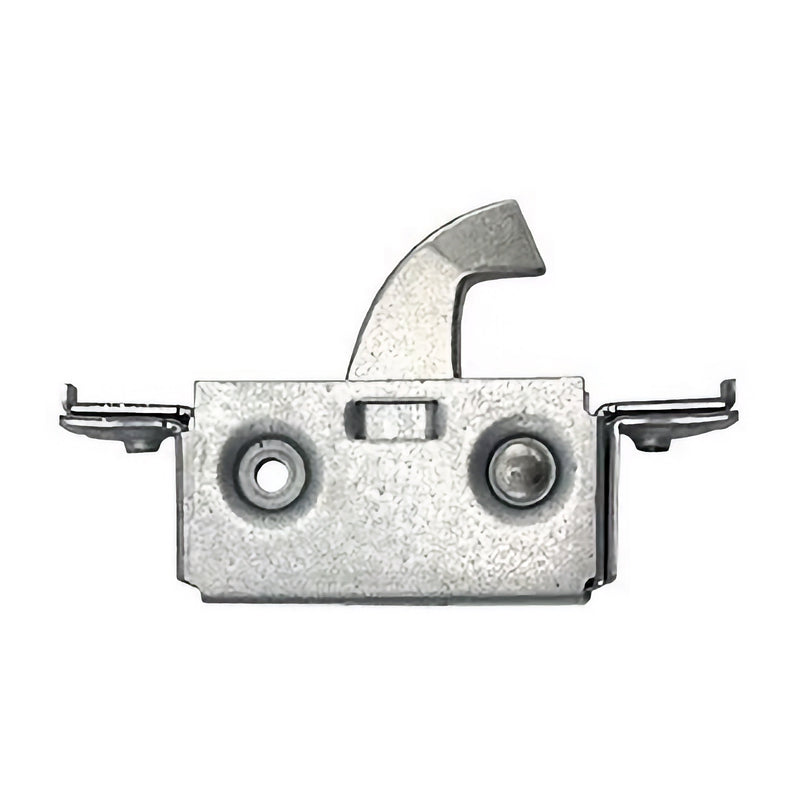

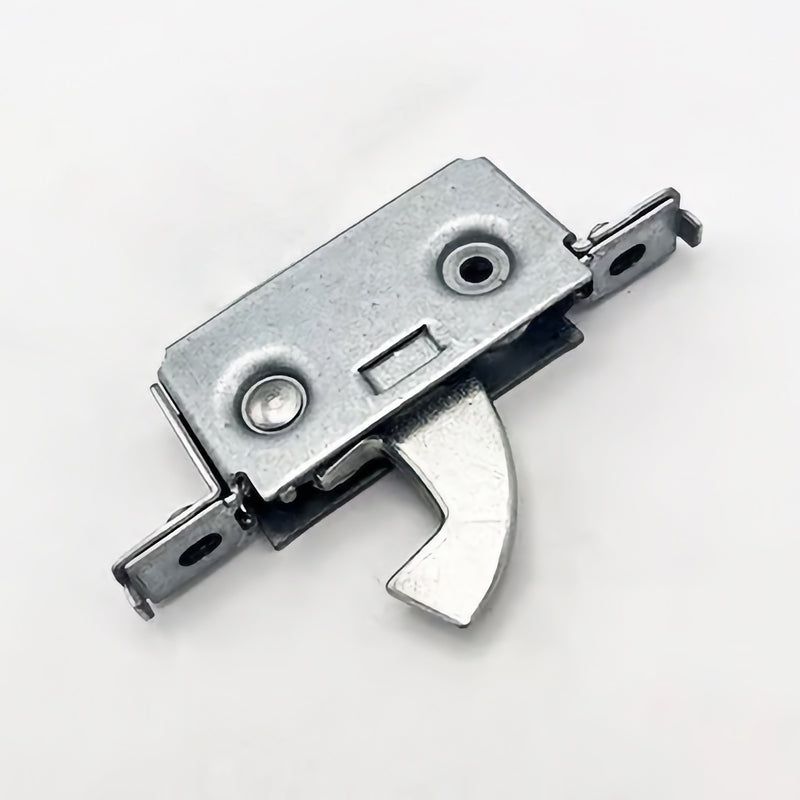

Genuine ERA Small Hook Case - Multipoint Lock Top/Bottom - 70mm Screw Centres
Genuine ERA Small Hook Case - Multipoint Lock Top/Bottom - 70mm Screw Centres
Genuine ERA Small Hook Case - Multipoint Lock Top/Bottom - 70mm Screw Centres
Genuine ERA Small Hook Case - Multipoint Lock Top/Bottom - 70mm Screw Centres
Genuine ERA Small Hook Case - Multipoint Lock Top/Bottom - 70mm Screw Centres
Genuine ERA Small Hook Case - Multipoint Lock Top/Bottom - 70mm Screw Centres

Genuine ERA Small Hook Case - Multipoint Lock Top/Bottom - 70mm Screw Centres

by ERA
$20.00 - $20.00
$20.00
$20.00 - $20.00
$20.00
UPVCSTORE
Trade Door & Window Hardware Specialists
✓ Genuine ERA Replacement Part

Genuine ERA Small Hook Case

Multipoint Lock Hook Locking Point  •  Top or Bottom  •  70mm Screw Centres

Brand
ERA
Height
60mm
Depth
29mm
Screw Centres
70mm

A genuine ERA small hook case – the compact case that houses one of the upward-throwing hook locking points on an ERA multipoint door lock. It is suitable for use as either the top or bottom hook case on the strip, making it a versatile repair part for a worn, seized or damaged locking point.

The case measures 60mm high by 29mm deep and is held in place by two fixing screws at 70mm centres (screws not supplied). Replacing just the affected hook case restores secure locking without the cost and labour of fitting an entire new multipoint strip.

Ideal for locksmiths, installers and homeowners maintaining an existing ERA-equipped uPVC, composite or timber door.

Make sure this is the part you need: This is a hook locking-point case, not the centre gearbox. The centre gearbox is the larger case operated by your handle and cylinder. This small case sits further up or down the strip and carries a single hook. Check your existing case is an ERA small hook type with screws at 70mm centres before ordering.

Key Features

✓ Genuine ERA replacement hook case
✓ Suitable as either the top or bottom hook locking point
✓ Compact small case – 60mm high x 29mm deep
✓ Fixed by 2 screws at 70mm centres (screws not supplied)
✓ Repairs a single locking point without replacing the whole strip
✓ Fits ERA multipoint locks on uPVC, composite and timber doors
✓ Sold individually – one hook case per purchase

Technical Specifications

Specification Detail
Manufacturer ERA
Type Multipoint lock hook case (locking point)
Position Top or bottom
Case Height 60mm
Case Depth 29mm
Fixing 2 screws (not supplied)
Screw Centres (top to bottom) 70mm
Condition New
Suitable For ERA multipoint door locks – hook locking point replacement
Packaging One hook case supplied per purchase – fixing screws not included

Frequently Asked Questions

Q: Is this the centre gearbox?
No. This is a hook locking-point case, not the centre gearbox. The centre gearbox is the larger case driven by your handle and key cylinder; this small case sits above or below it on the strip and carries a single hook.
Q: Can I use it at the top or the bottom of the strip?
Either. The case is suitable to replace the top or the bottom hook case on a compatible ERA multipoint lock.
Q: How do I check it will fit?
Confirm your existing case is an ERA small hook type, then measure the two fixing screws – they should be 70mm apart, centre to centre. Case height is 60mm and depth 29mm.
Q: Are the fixing screws included?
No. The hook case is supplied on its own; the two fixing screws are not included.
Q: Why replace just the hook case?
If only one locking point has worn or failed, swapping the single hook case restores secure locking at a fraction of the cost and effort of replacing the entire multipoint strip.
