Glazpart AluVent Aluminium Trickle Vent
by Glazpart
Original price
$29.00
-
Original price
$40.00
Original price
$29.00
$29.00
-
$40.00
Current price
$29.00
Glazpart AluVent Aluminium Trickle Vent

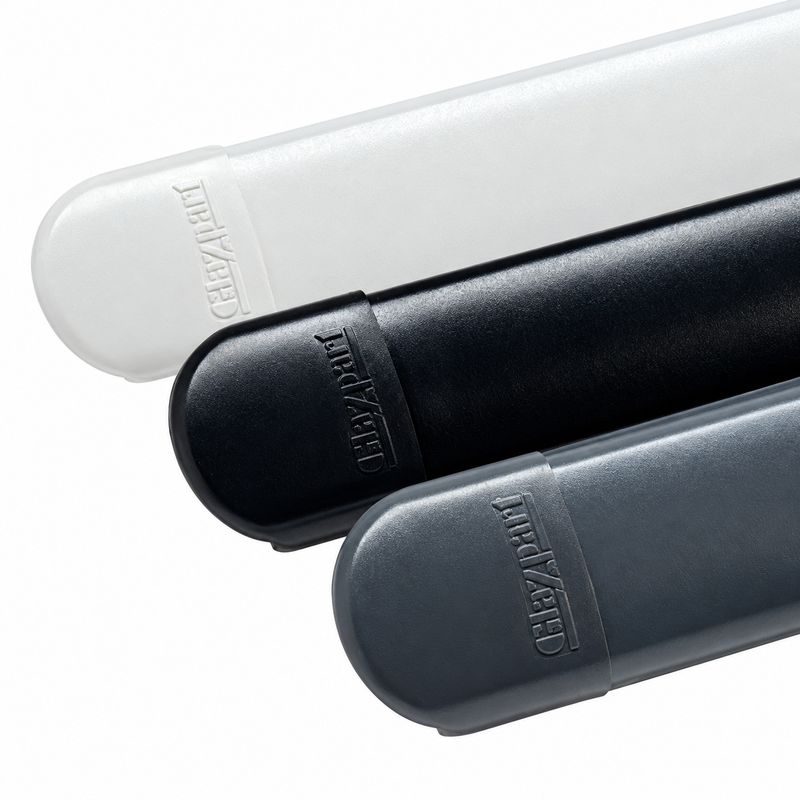

A low-profile surface-mounted trickle vent for aluminium window sashes, frames and knock-on profiles. Choose the size and finish to suit your window. Sold individually in the selected size and finish; the gallery close-up illustrates the available colours.
Features
- Aluminium construction with tool-free interlocking end caps.
- Offset clips help position the vent for screw fixing.
- Foam-insulated closure plate.
- Compatible with the specified 10mm or 13mm routing slots.
Dimensions and routing
| Option | 249mm / 2500EA | 390mm / 4000EA |
|---|---|---|
| Equivalent area | 2500mm² | 4000mm² |
| Internal vent (L × H × D) | 249 × 23 × 7.5mm | 390 × 23 × 7.5mm |
| External canopy (L × H × D) | 240 × 19.5 × 26mm | 380 × 19.5 × 26mm |
| Routing | 204 × 10mm or 204 × 13mm | Two 167mm slots with a 14mm bridge; slot width 10mm or 13mm |
Finish choices
White (RAL9003), black (RAL9005), anthracite grey (RAL7016), white/black or white/anthracite.
Before ordering
Check the overall dimensions and routing layout against your window profile. Equivalent area is a ventilation performance measurement, not the physical slot area. Refer to the technical guides and the window fabricator’s installation requirements before routing or fitting.
