GU Europa Compact Latch Deadbolt 4 Rollers Lift Lever
by GU
Original price
$93.00
-
Original price
$93.00
Original price
$93.00
$93.00
-
$93.00
Current price
$93.00
A shorter (1765mm long) version of the ubiquitous 4 roller lock from GU at a cheaper price.
Backset: 35mm
Centres: 92mm
Operation: Lift lever.
Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.

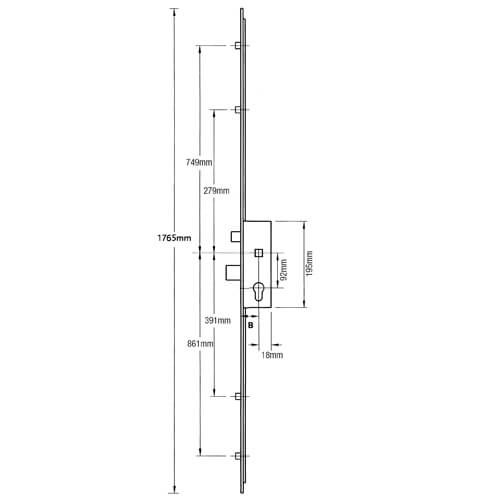

Technical Information-
Centres: 92mm
Case height: 195mm
Case depth: Backset + 18mm
Overall length: 1765mm
Distance between outer rollers: 1610mm
Distance between inner rollers: 670mm
Backset: 35mm
Centres: 92mm
Operation: Lift lever.
Latch reversal: Push a flat bladed screwdriver into the small rectangular slot above spindle and pull out latch at same time. reverse and reinsert.
Technical Information-
Centres: 92mm
Case height: 195mm
Case depth: Backset + 18mm
Overall length: 1765mm
Distance between outer rollers: 1610mm
Distance between inner rollers: 670mm
