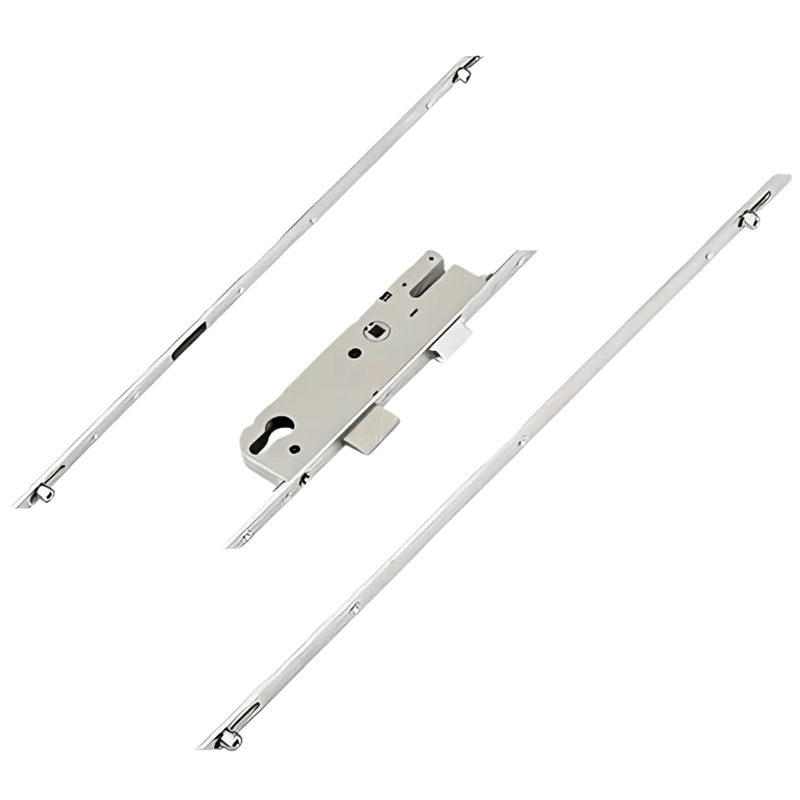

GU Europa Compact Multipoint Door Lock – Latch, Deadbolt, 4 Rollers (Lift Lever Operation)

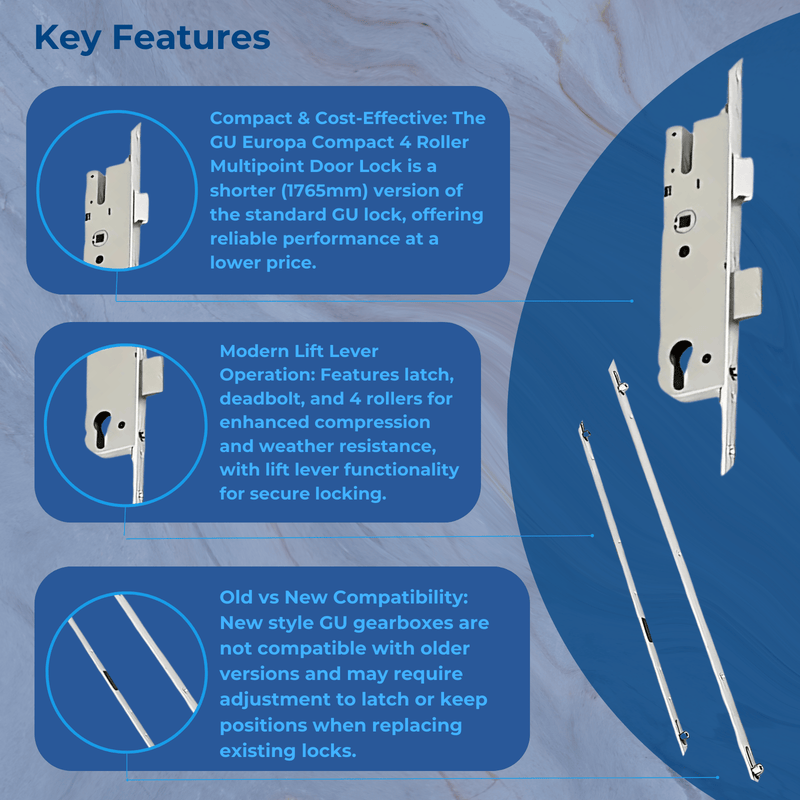

Looking for a high-performance multipoint lock at a lower cost? The GU Europa Compact 4 Roller Multipoint Door Lock offers all the reliability of the standard GU roller lock in a shorter 1765mm version, making it ideal for replacement or new door installations where a compact design is needed.

Product Overview:

The GU SECURY Europa range is a trusted series of multipoint door locks, designed for uPVC, timber, and composite doors. Operated by lift lever or split spindle, these locks are known for their reliable security and consistent configurations, simplifying manufacturing and installation.

• The Europa range is often referred to as GU Ferco due to historical naming conventions.
• Modern locks are branded as GU, while older 70mm PZ versions are still referred to as Ferco.
• GU logos are typically stamped on the faceplate, aiding easy identification.

Old vs New Lock Compatibility:

GU revamped their lock designs over a decade ago. If you're replacing an older style (recognizable by a cut-out top corner on the gearbox), be aware that:

• New gearboxes feature a vertical groove and are not compatible with old-style faceplates.
• You may need to adjust the latch and deadbolt keeps for proper fitment when upgrading to the new version.
• Thicker deadbolts on newer locks may require updated keeps to avoid fouling.

Locking Mechanism & Features:

• Operation Type: Lift Lever
• Locking Points: Latch, Deadbolt, and 4 Rollers
• Rollers: Provide frame compression for weather resistance and reduce door warping (not a primary security feature)
• Roller Adjustment: ±1mm for improved weather sealing
• Deadbolts: Chamfered for better compression and frame fit
• Latch Reversal: Easily reversed using a flat screwdriver

How to Lock and Unlock:

• Lock: Lift the handle to engage all locking points, then turn the key to secure.
• Unlock: Turn the key to release, then push the handle down to retract the latch.

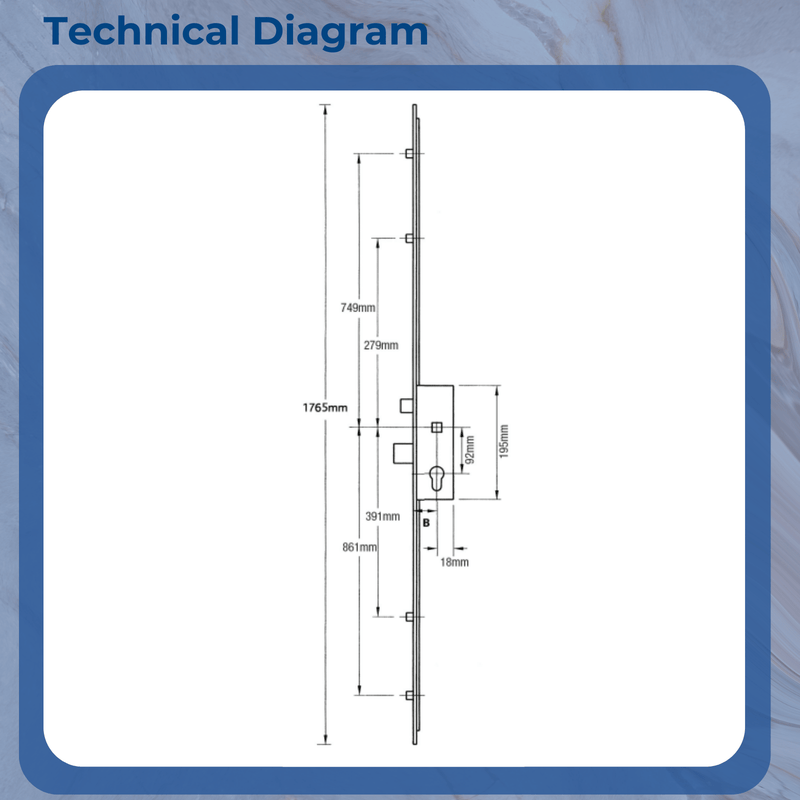

Gearbox Dimensions (New Style):

• Height: 191mm (excluding fixing lugs)
• Width: Backset + 16mm
• Latch: 32mm high
• Deadbolt: 35mm high
• Distance between latch and deadbolt: 54mm
• Screw distances: Top to middle – 108mm; middle to bottom – 92mm

Available Gearbox Options:

• Backset sizes: 28mm, 35mm, 40mm, 45mm, 55mm
• Functions: Lift lever, split spindle (35mm & 45mm), Europa Plus fast lock (35mm only)

Additional Information:

• The GU-SECURY MR system uses enhanced deadbolts for anti-saw protection.
• Introduced in 1979, GU has continuously innovated its multipoint locking systems, including the self-locking GU-SECURY Automatic launched in 1996.
• We also stock a wide range of compatible accessories, including keeps, door handles, spindles, and additional components for GU Europa locks.
