Mila ProSecure Hybrid uPVC Door Hinge - Adjustable Flag Hinge

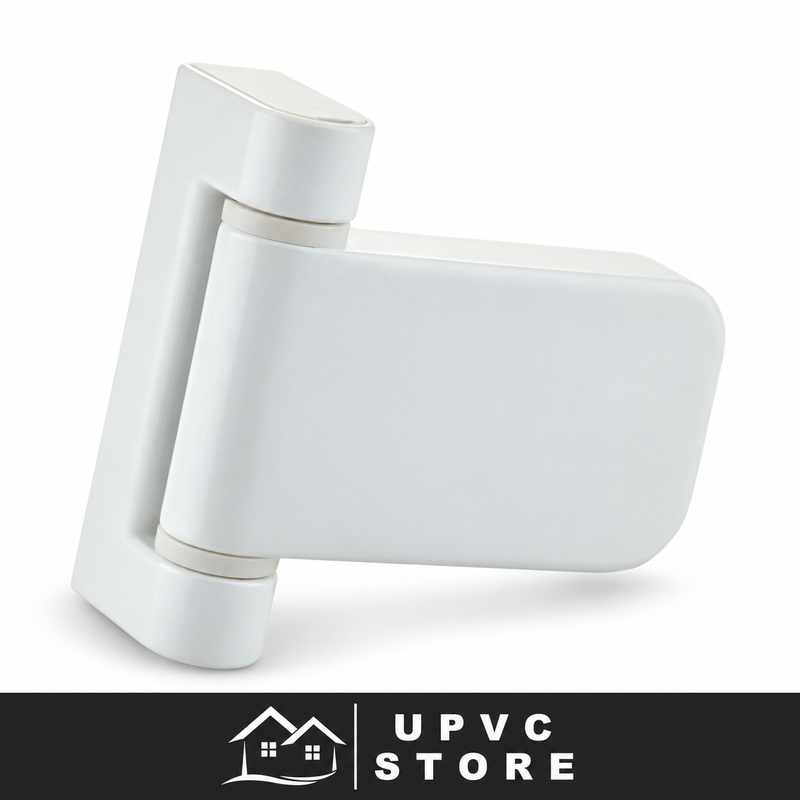

Mila ProSecure Hybrid uPVC Door Hinge
Replace a matching door hinge with the Mila ProSecure Hybrid, a flag-style hinge for compatible uPVC doors. Its adjustable design lets an installer fine-tune the door position vertically, laterally and against the seal. Choose the finish and upstand that match your existing hinge and door profile.
Product features

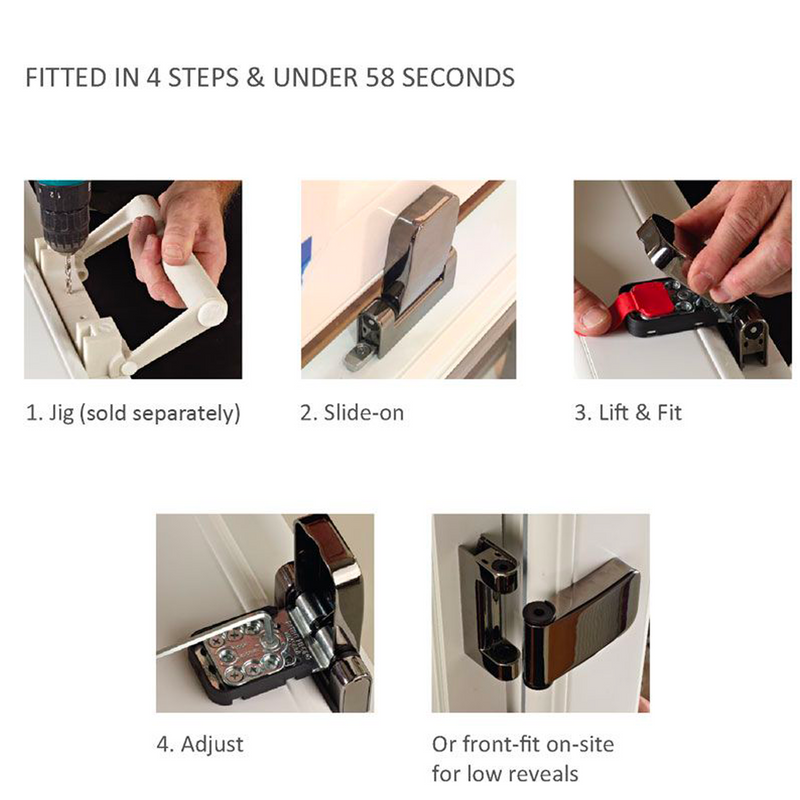

- One-piece hinge with slide-on installation or a removable pin for front-fitting where the reveal is restricted.
- Three-way adjustment: +5 mm vertical, ±5 mm lateral and ±1 mm compression.
- Captive lid gives access to the fixing screws; optional loose fixing lugs are included.
- Supplied as one hinge. Order the quantity required for your door.
Technical information
| Brand / range | Mila ProSecure Hybrid |
|---|---|
| Application | Compatible uPVC door profiles |
| Overall front height × width | 87 × 86 mm |
| Hinge barrel width | 19 mm |
| Flag cover height | 50 mm |

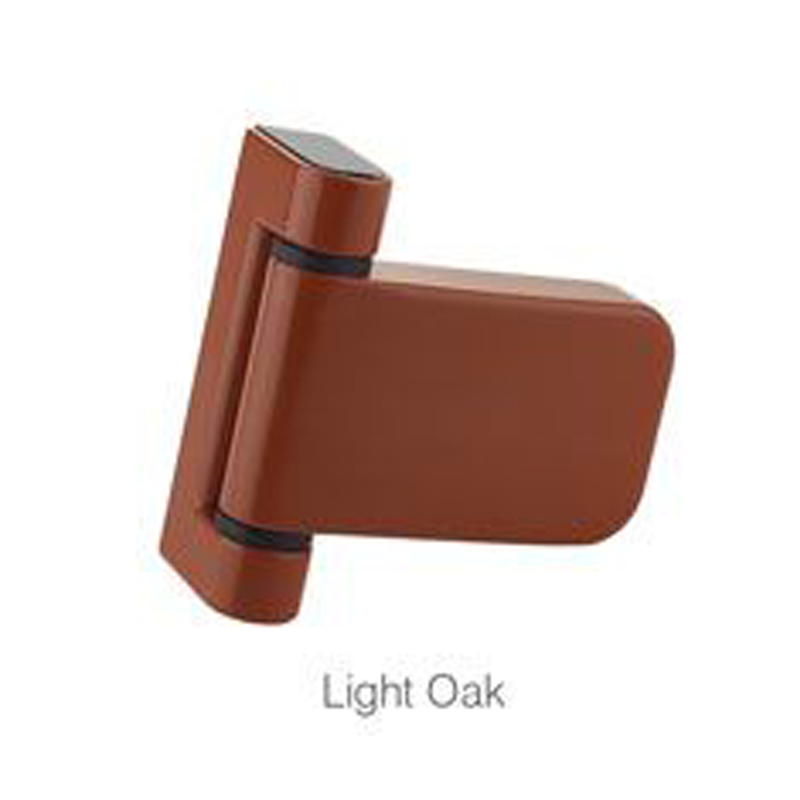

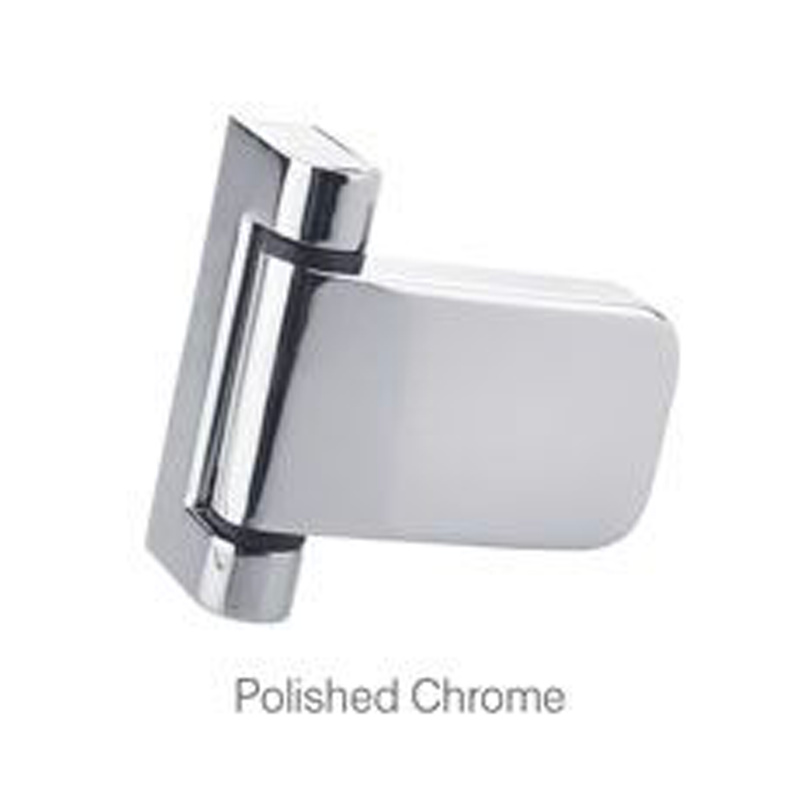

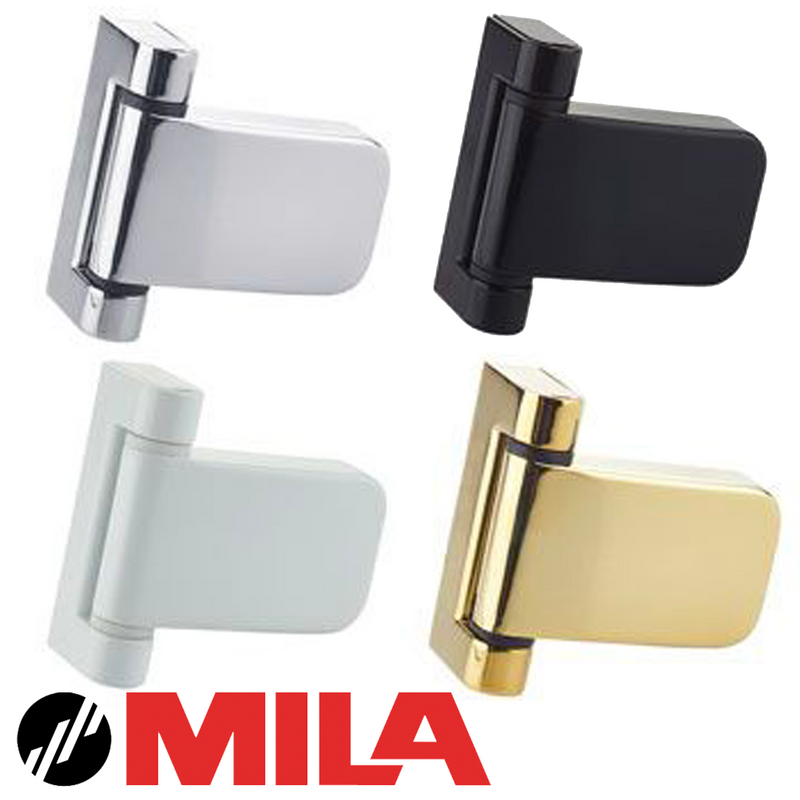

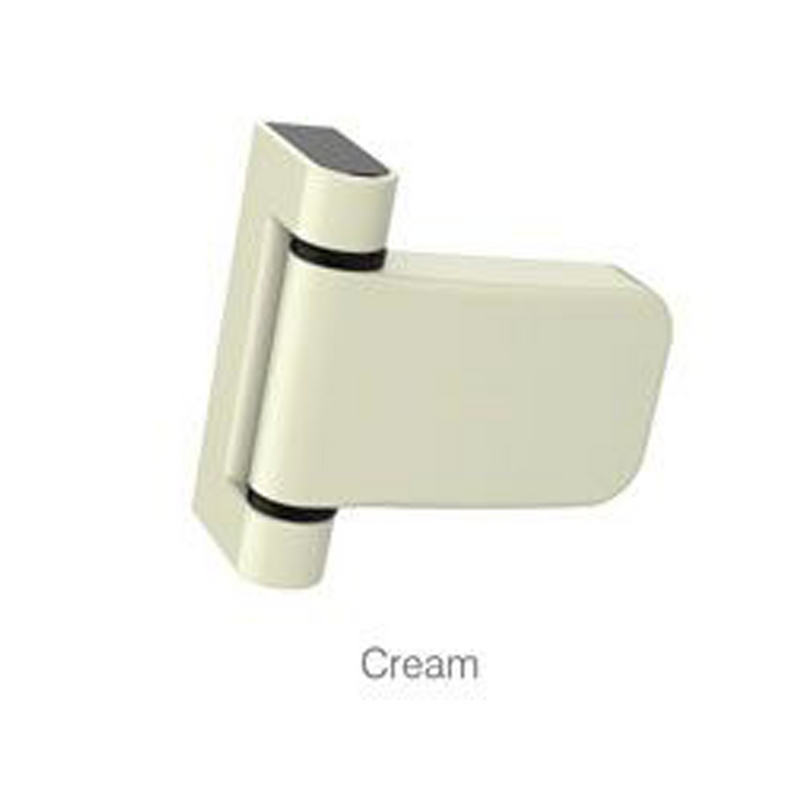

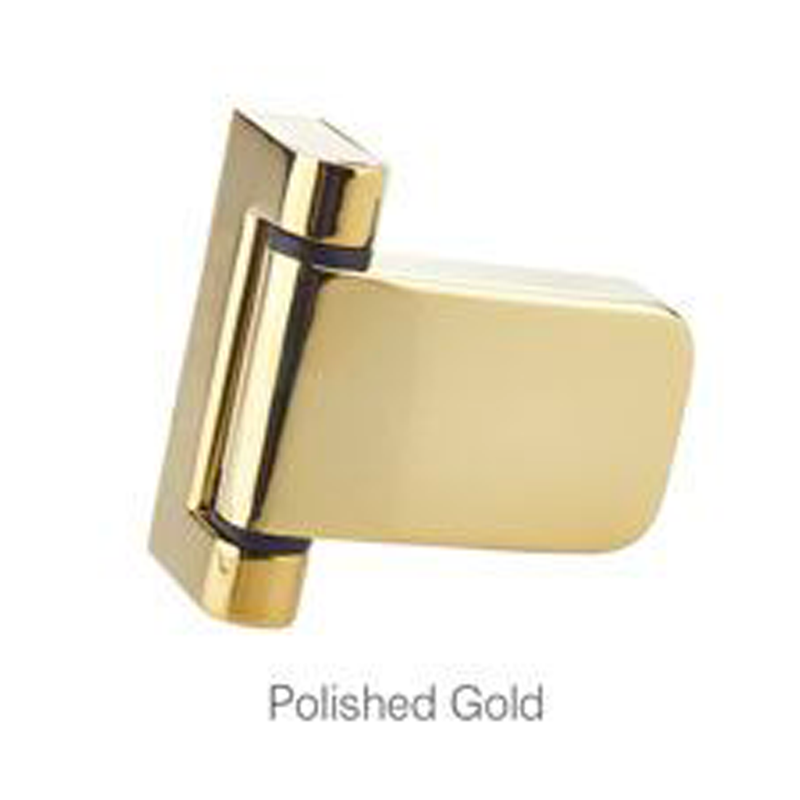

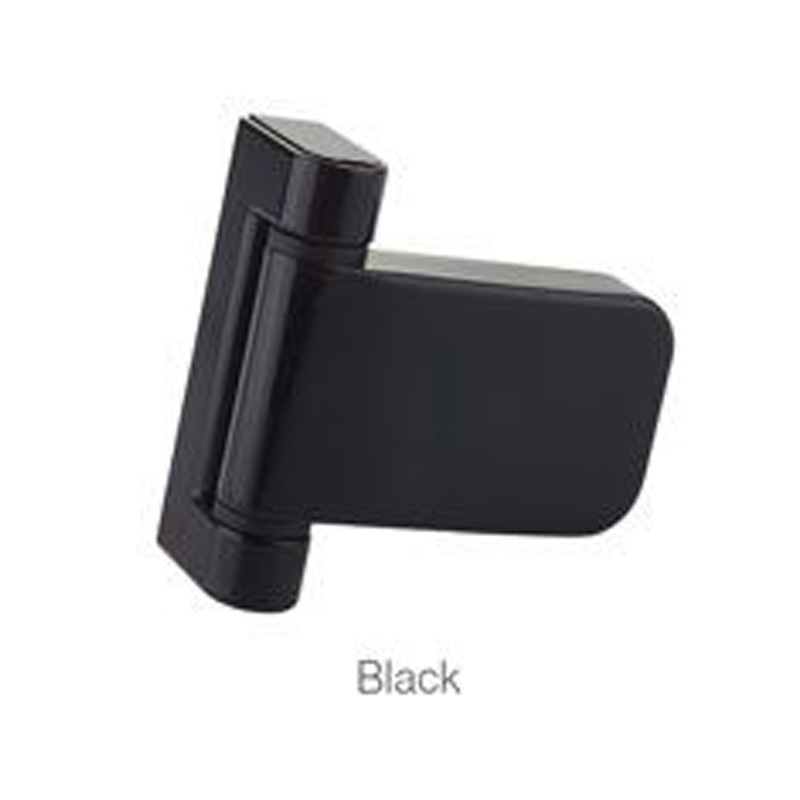

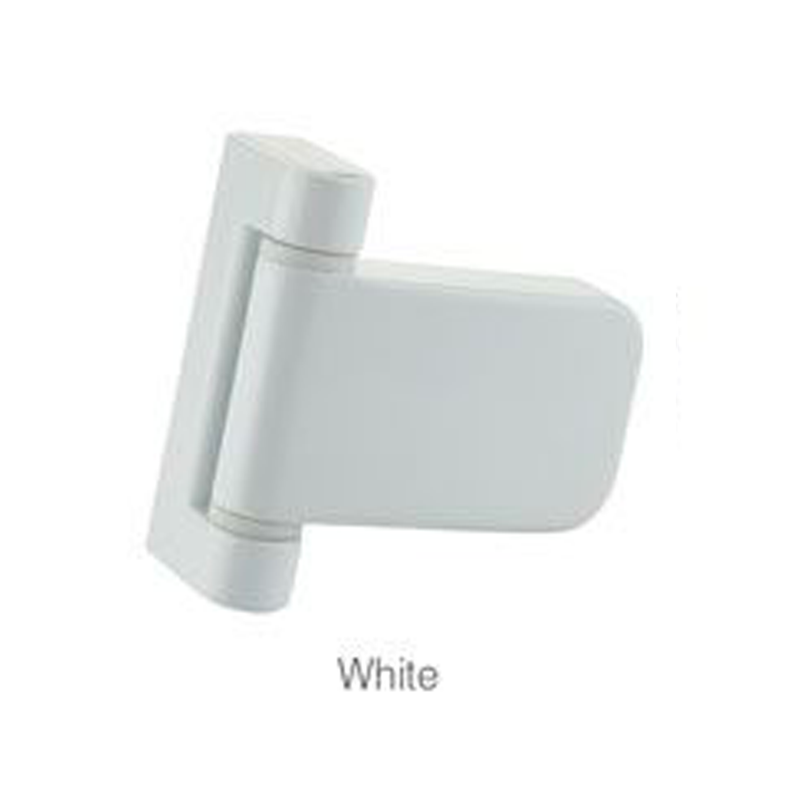

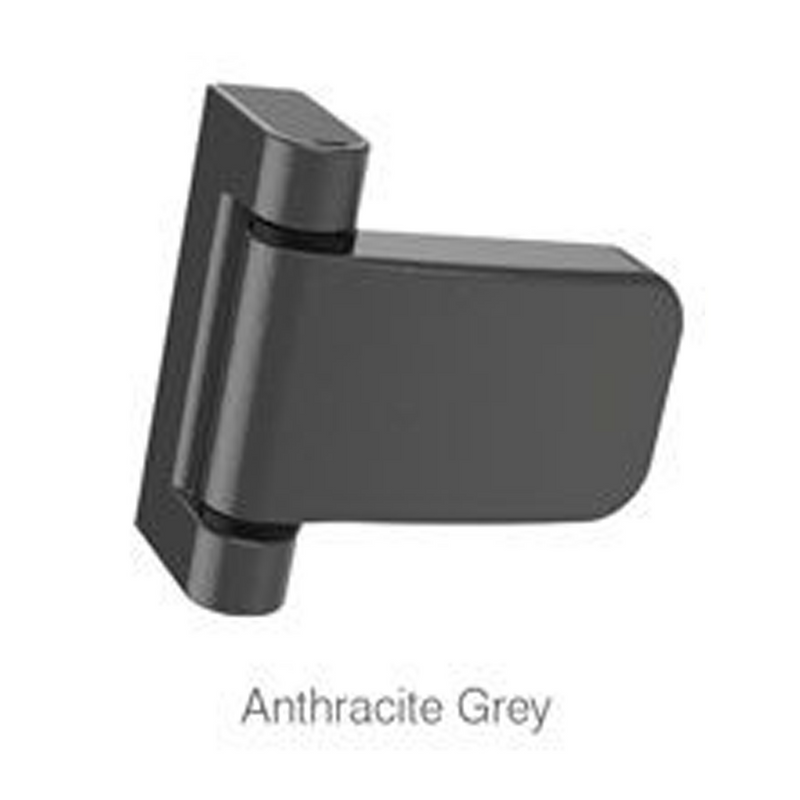

| Upstand and finish | As selected in the product options |
| Vertical / lateral / compression adjustment | +5 mm / ±5 mm / ±1 mm |
| Door load rating | 100 kg when using two hinges, subject to the manufacturer's fitting requirements |
| Quantity supplied | 1 hinge |
Compatibility and fitting

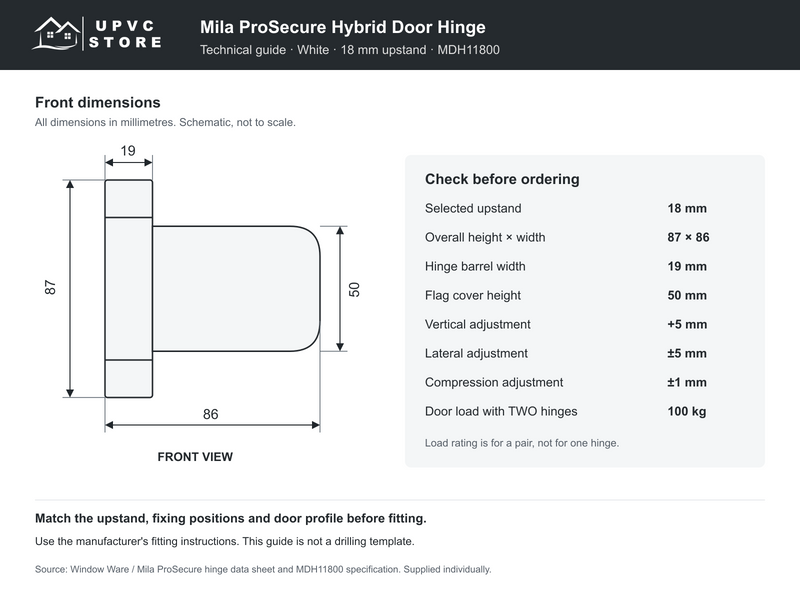

Check the upstand, fixing positions, dimensions and profile suitability against your existing hinge before ordering. Matching the colour alone does not confirm compatibility. Follow the manufacturer's installation instructions; the technical illustration is a measuring guide, not a drilling template. The fitting jig is sold separately.
The supplier identifies this hinge as PAS 24 compliant and reports Grade 5 corrosion resistance to BS EN 1670:2007. Door security performance depends on the complete tested doorset and correct installation.
