Mila Trinity Sliding Patio Door Handle Set 92mm PZ 109mm Screw Centres
by UPVCSTORE
Original price
$86.00
-
Original price
$114.00
Original price
$86.00
$86.00
-
$114.00
Current price
$86.00
| UPVCSTORE | GENUINE MILA |
SLIDING PATIO DOOR HARDWARE

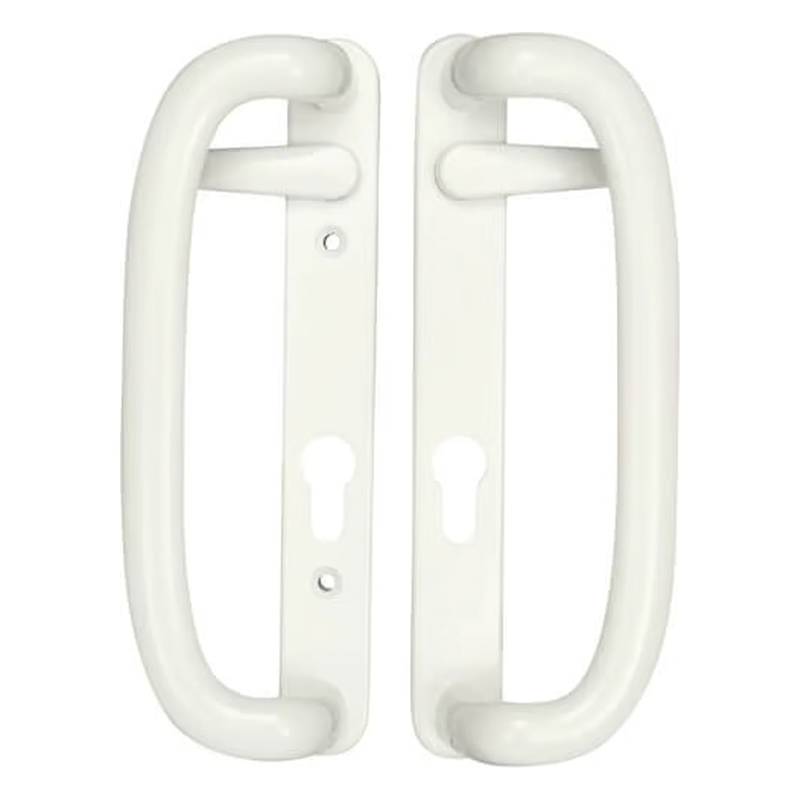

Mila Trinity Patio Door Handle Set 92mm PZ · Supplied in Pairs
The genuine Mila Trinity inline handle set for sliding patio doors — auto-engaging patio lever, available in White or Polished Brass.

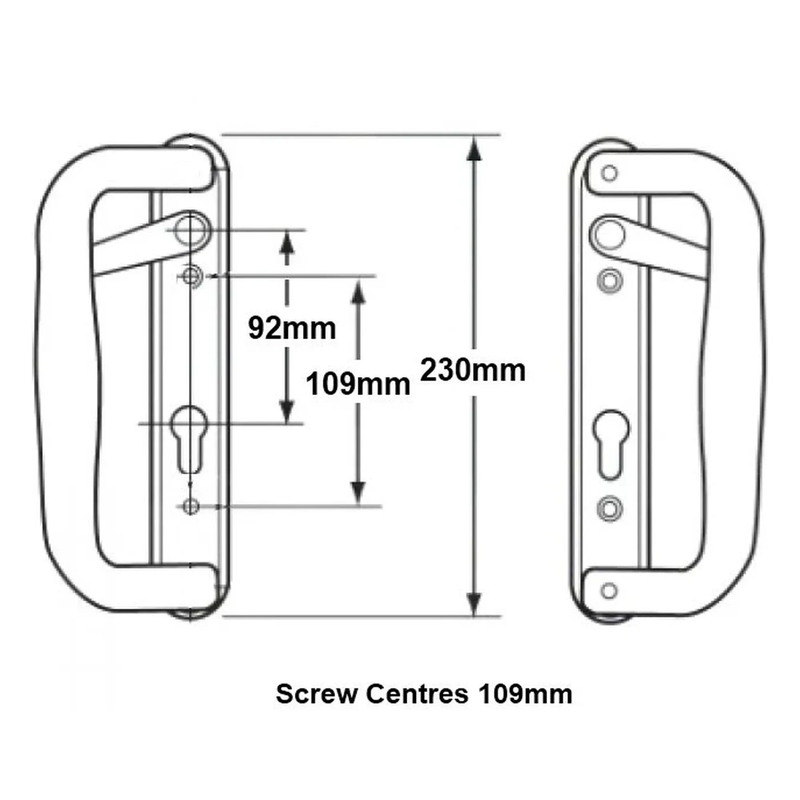

FITMENT AT A GLANCE
|
92mm
PZ (Centres)
|
109mm
Screw Centres
|
230mm
Overall Length
|
The Mila Trinity patio handle set is a genuine Mila inline handle designed for sliding patio doors. As the door slides across, the locating pin engages and activates the patio lever — simply throw the lever to drive the locking points home. Supplied as a complete pair with fixing screws and a 7mm metal spindle, it is a direct fit for Mila FLIPEW and FLIPEG patio locks.

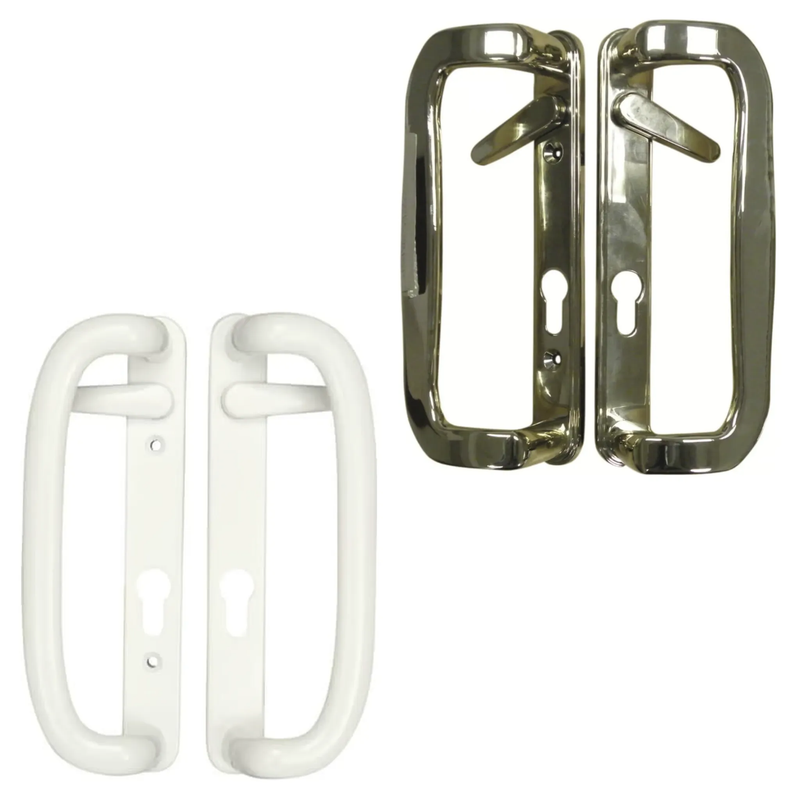

With a 92mm PZ, 109mm screw centres and a slim 30mm backplate, the Trinity is the standard replacement for thousands of uPVC and aluminium sliding patio doors fitted across the UK. Choose White or Polished Brass to match your existing furniture.
Replace your patio handles if…
the lever no longer throws the locking points, the handle is cracked, discoloured or loose on the plate, or the locating pin fails to activate the lever when the door closes. Measure your PZ (handle lever centre to key centre) — if it is 92mm with 109mm screw fixings, this set will fit.
KEY FEATURES
| ✓ Genuine Mila Trinity patio handle set | ✓ Supplied in pairs — inside and outside handles |
| ✓ Auto-engaging locating pin activates the patio lever | ✓ Direct fit for Mila FLIPEW & FLIPEG patio locks |
| ✓ 92mm PZ · 109mm screw centres · 30mm backplate | ✓ Fixing screws and 7mm metal spindle included |
TECHNICAL SPECIFICATIONS
| Brand | Mila |
| Model | Trinity Patio Handle Set |
| Overall length | 230mm |
| Backplate width | 30mm |
| PZ / centres (lever to euro) | 92mm |
| Screw centres | 109mm |
| Top screw to centre of euro | 75mm |
| Bottom screw to centre of euro | 40mm |
| Spindle | 7mm diameter metal spindle (supplied) |
| Suits | Mila FLIPEW and FLIPEG patio locks |
| Door types | uPVC and aluminium sliding patio doors |

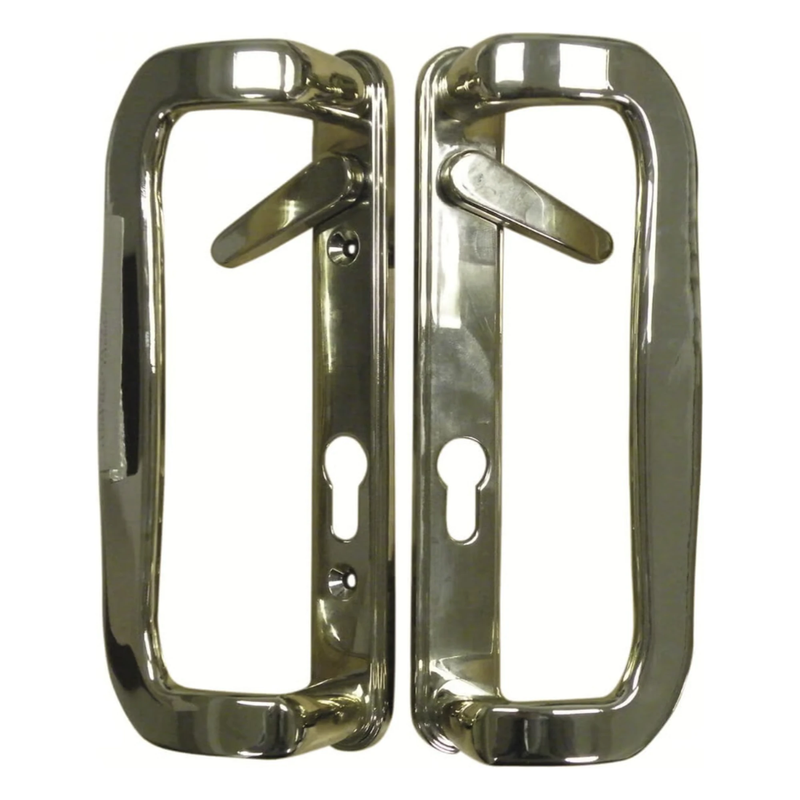

| Finishes available | White · Polished Brass |
HOW IT WORKS
|
01
Slide the patio door closed — the locating pin engages automatically.
|
02
The pin activates the patio lever, readying the lock.
|
03
Throw the lever to engage the locking points and secure the door.
|
IN THE BOX
• 1 × pair of Mila Trinity patio handles (inside & outside)
• 1 × 7mm diameter metal spindle
• Fixing screws
• 1 × 7mm diameter metal spindle
• Fixing screws
FREQUENTLY ASKED QUESTIONS
How do I check this will fit my door?
Measure from the centre of the lever spindle hole to the centre of the euro cylinder cut-out — this is the PZ and should be 92mm. Then check the screw fixings measure 109mm apart. If both match, the Trinity set will fit.
Which patio locks is it compatible with?
It is designed for Mila FLIPEW and FLIPEG patio locks, and suits sliding patio doors where the locating pin engages the lever as the door closes.
Is this one handle or a pair?
A complete pair — you get the inside and outside handles, plus the spindle and fixing screws, so one set does one door.
Is a euro cylinder included?
No — the handle set accepts a standard euro profile cylinder, which is available separately. Your existing cylinder can usually be re-used.
How quickly will it be delivered?
Orders are picked and dispatched quickly from our UK warehouse — see the delivery options at checkout for timescales to your postcode.
