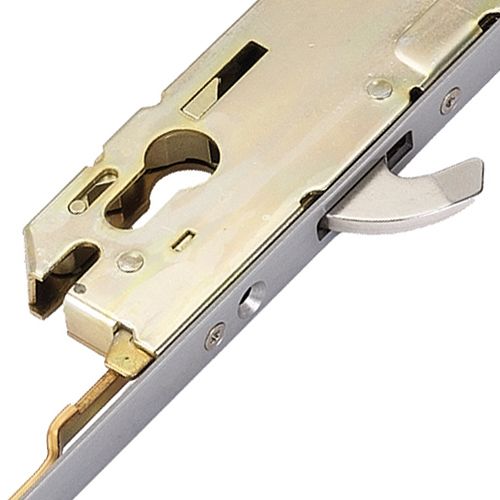

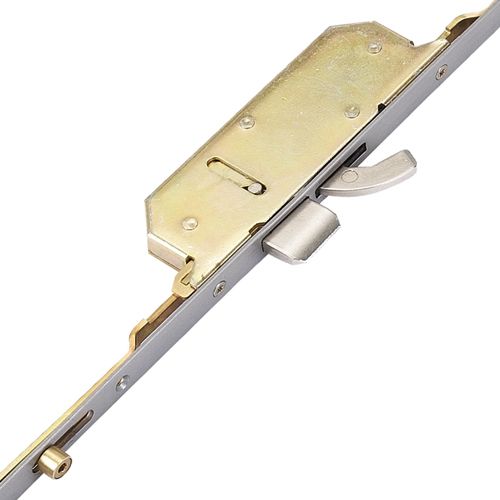

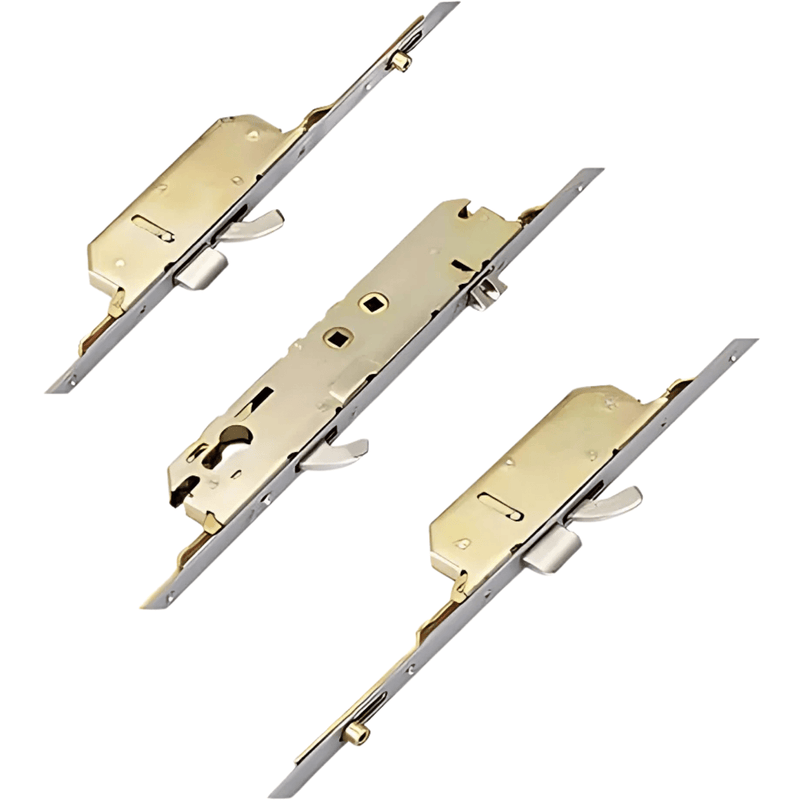

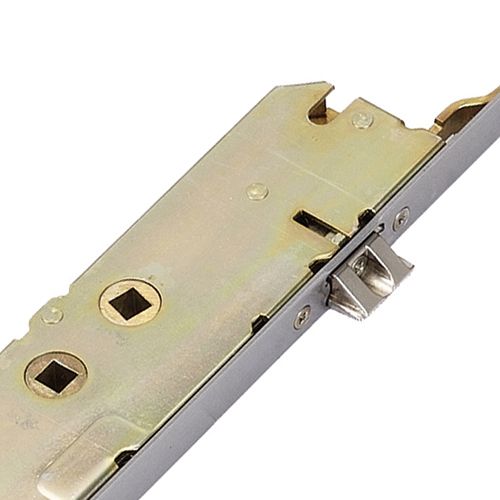

Millenco Mantis 1 Latch 3 Hooks 2 Deadbolts 2 Rollers Double Spindle
by Millenco
Original price
$268.00
-
Original price
$268.00
Original price
$268.00
$268.00
-
$268.00
Current price
$268.00
The original Mantis 1 lock has a unique gearbox featuring 86/117mm centres. Please note that older versions of this lock do not have any markings on the faceplate.
Operation: Lift lever or double spindle nightlatch.
Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

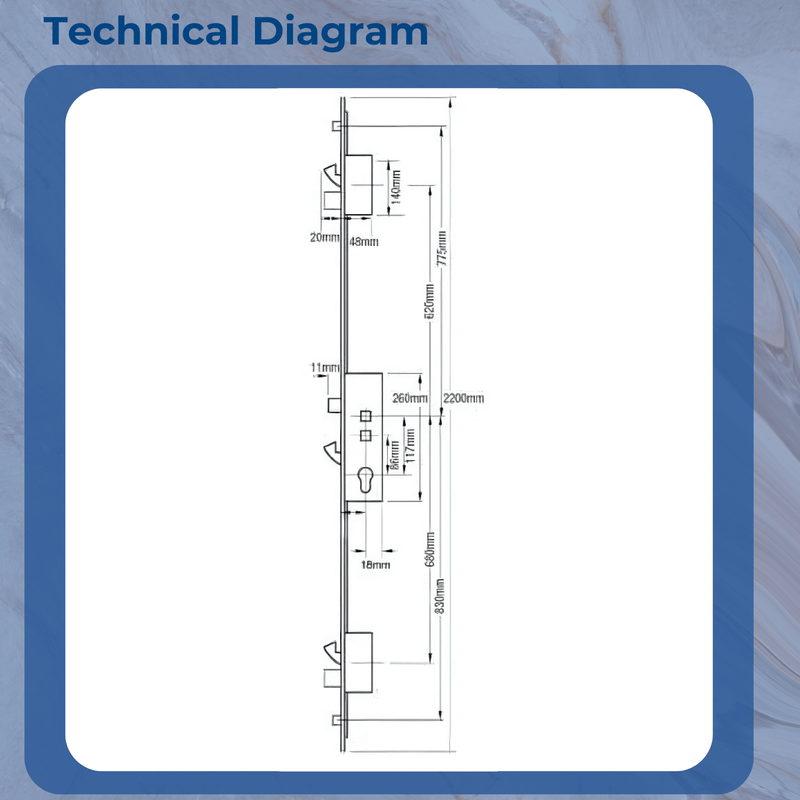

Technical Information-
- Faceplate: Flat - square
- Case height: 260mm
- Case depth: 53mm
- Overall length: 2200mm
- Centres: 86mm/117mm
- Distance between hooks: 1290mm
- Distance between deadbolts: 1300mm
- Distance between rollers: 1605mm
