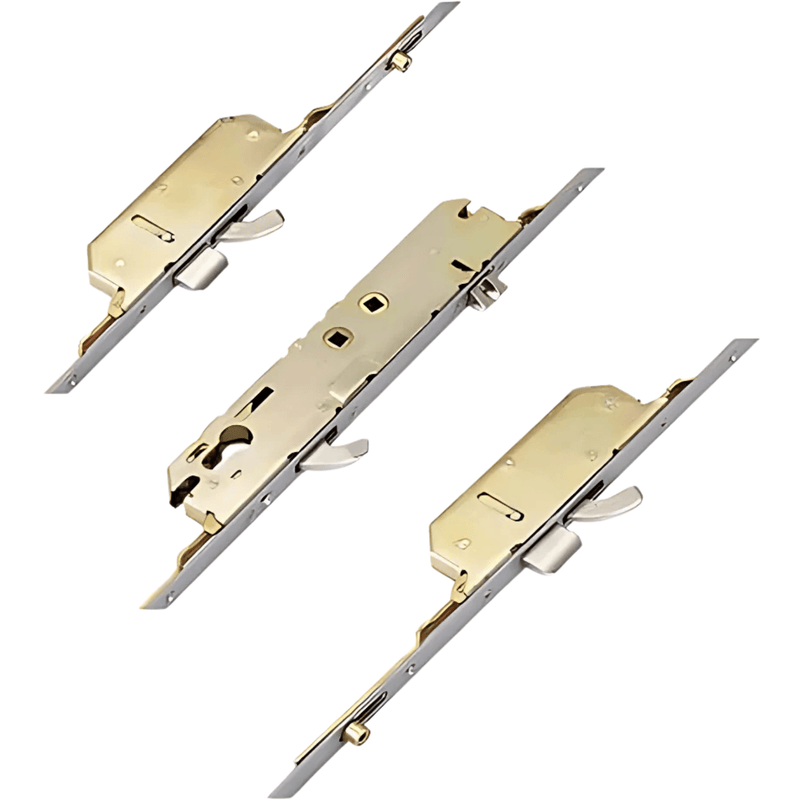

Millenco Mantis 1 Latch 3 Hooks 2 Deadbolts Double Spindle
by Millenco
Original price
$264.00
-
Original price
$264.00
Original price
$264.00
$264.00
-
$264.00
Current price
$264.00
The original Mantis 1 lock has a unique gearbox featuring 86/117mm centres.Please note that older versions of this lock do not have any markings on the faceplate.If you are replacing a 24 or 44mm faceplate lock, please use this product and retain the original faceplate.
Backset: 35mm
Operation: Lift lever or double spindle nightlatch.
Latch reversal: Undo the screw or screws (depending on the model) in the latch to remove. Reverse, reinsert and replace screw(s).

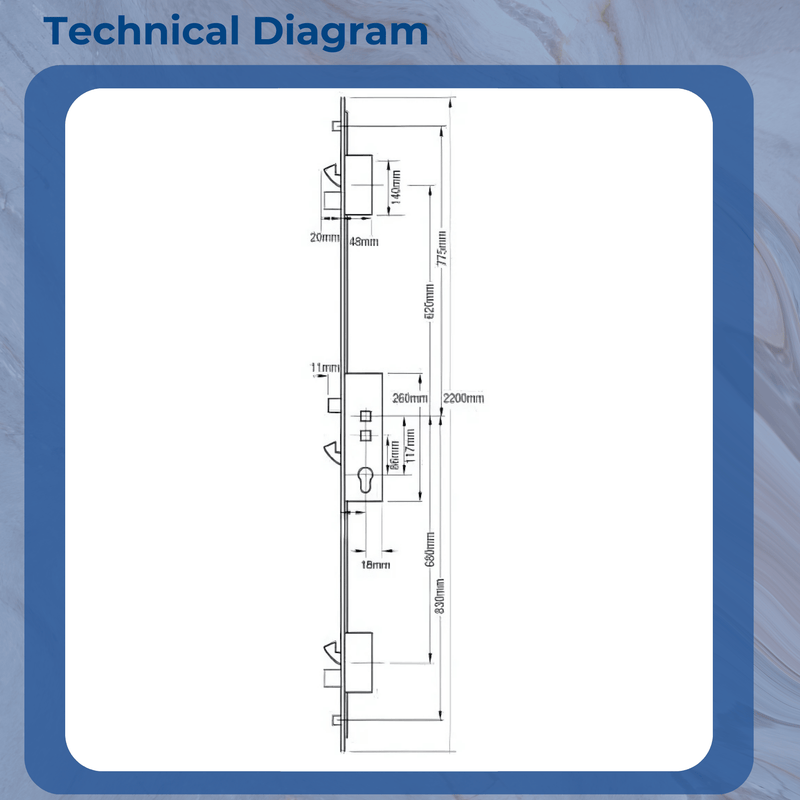

Technical Information-
- Backset: 35mm
- Centres: 86mm/117mm
- Case height: 260mm
- Case depth: 53mm
- Overall length: 2200mm
- Distance between hooks: 1290mm
- Distance between deadbolts: 1300mm
