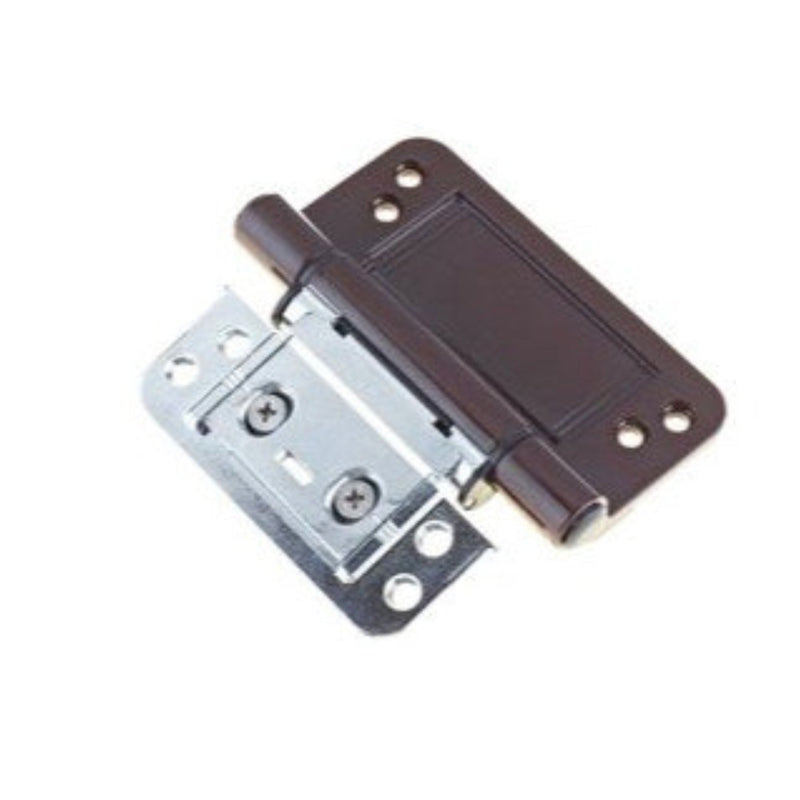

Yale / Trojan 3D Composite Door Hinge

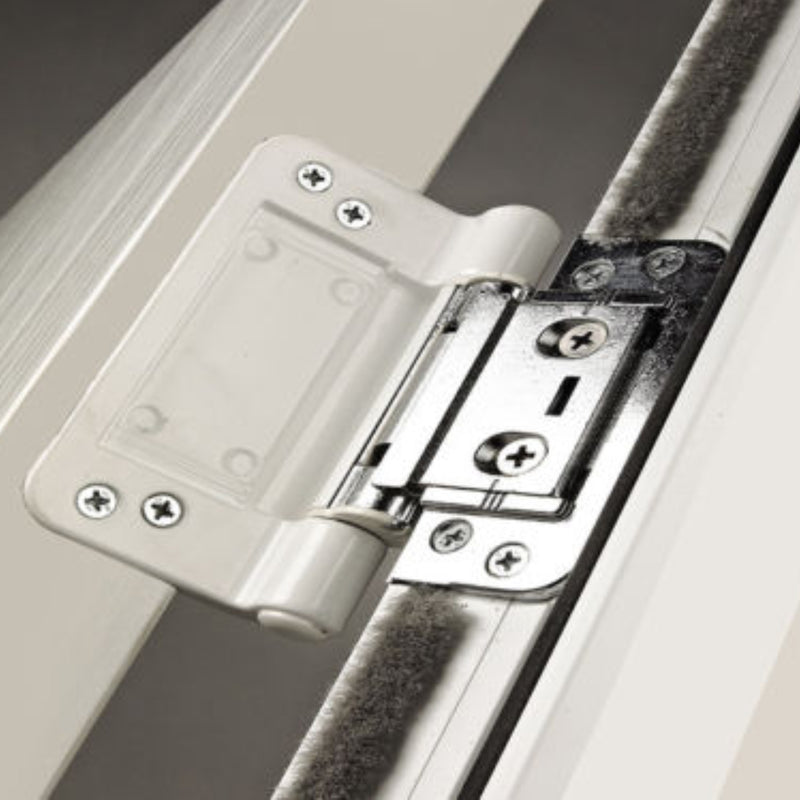

A rebated, adjustable butt hinge for composite doors, with a neat profile and a detachable sash piece to simplify fitting. Supplied pre-assembled, it offers lateral, vertical and compression adjustment to help align the door and set the seal pressure.
Supplied individually: the price is for one hinge in your selected finish, not a pair or a set of three.

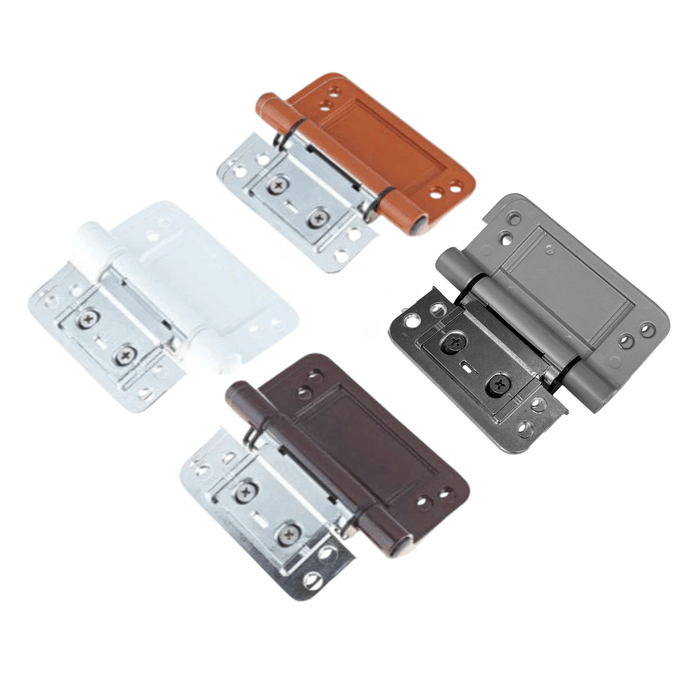

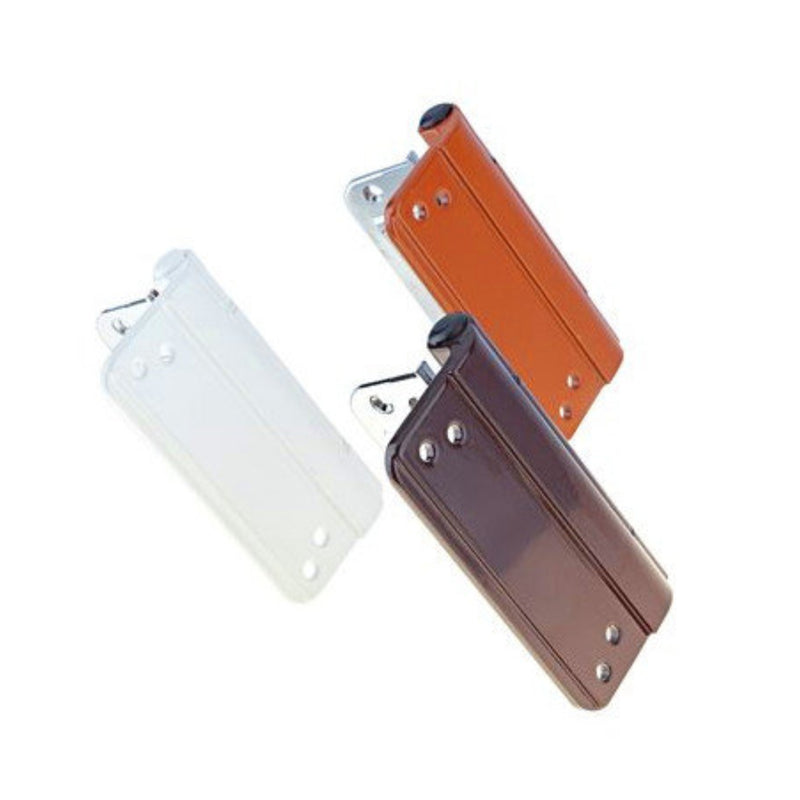

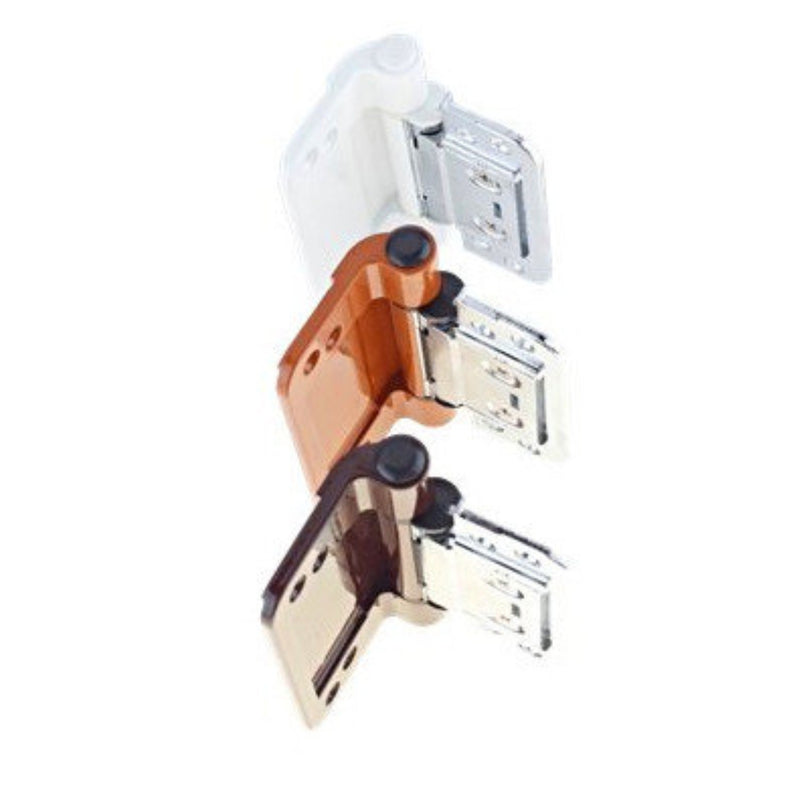

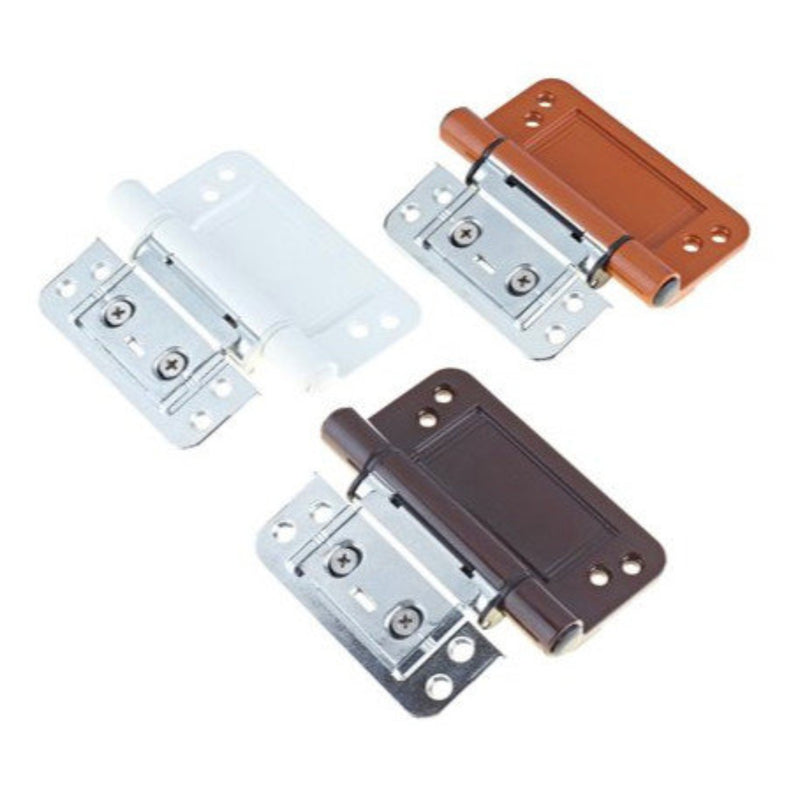

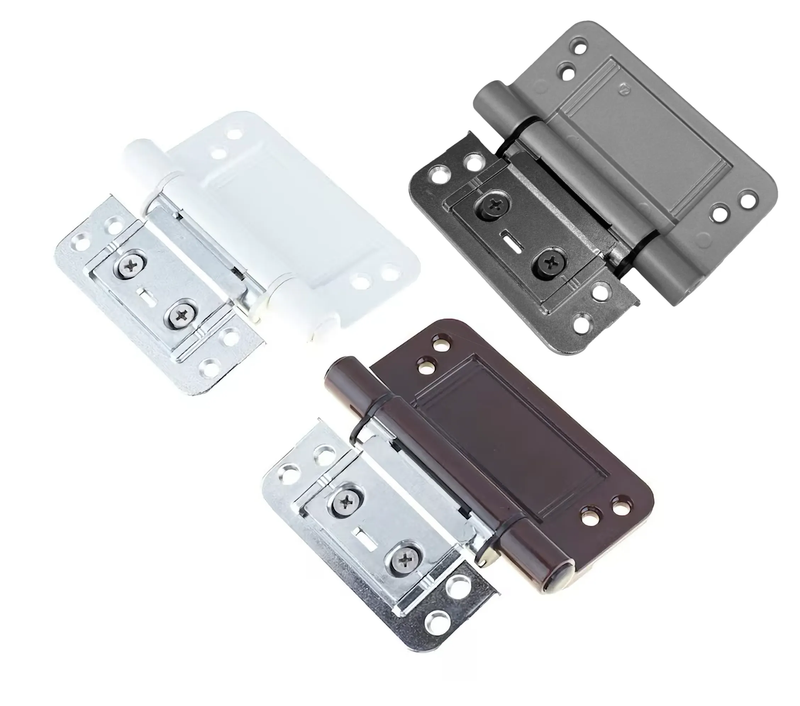

Choose your finish

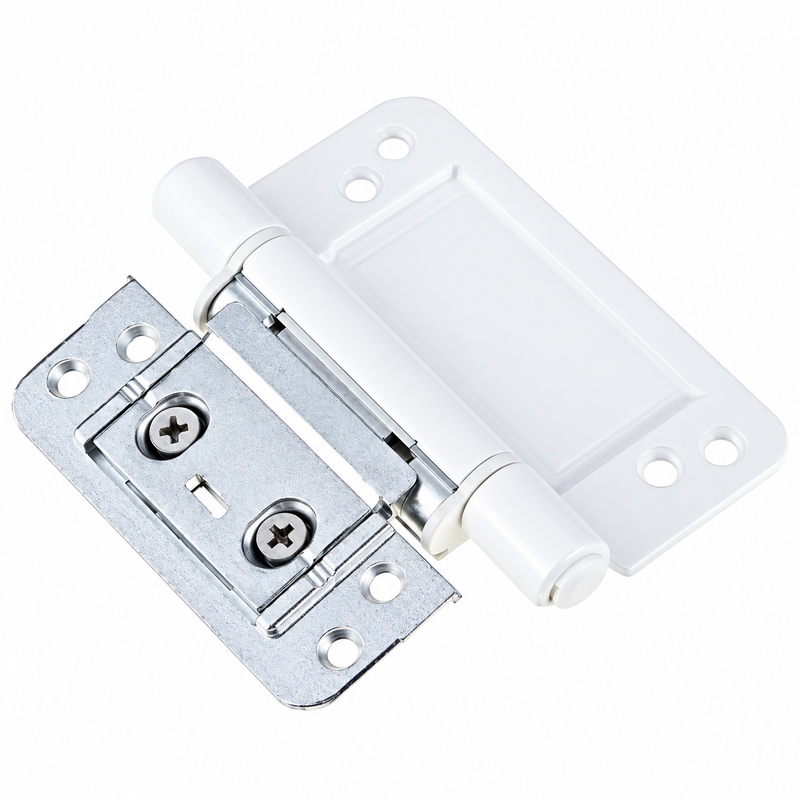

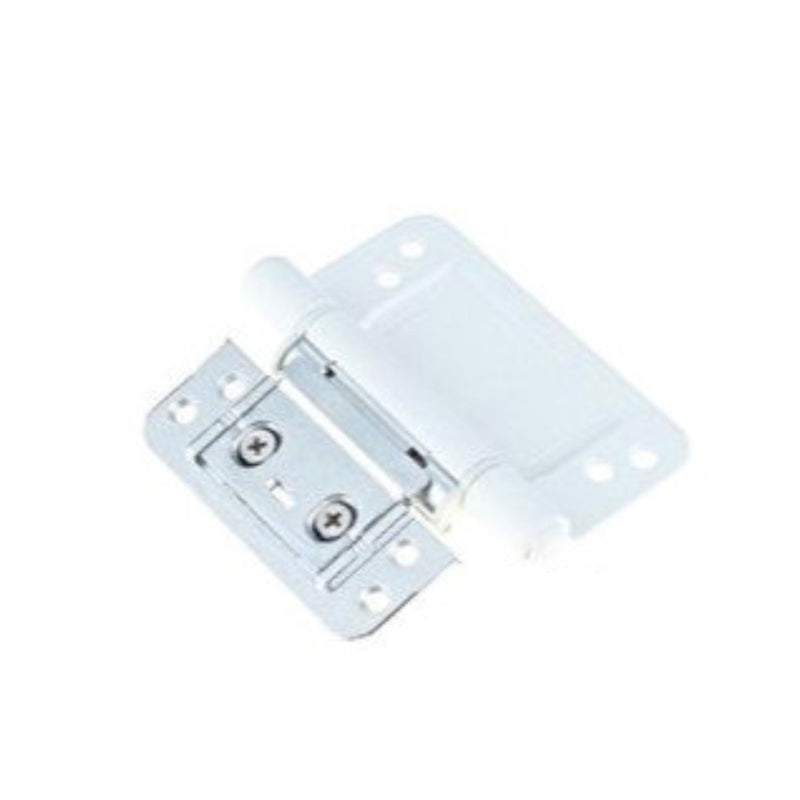

- White — HIN14000

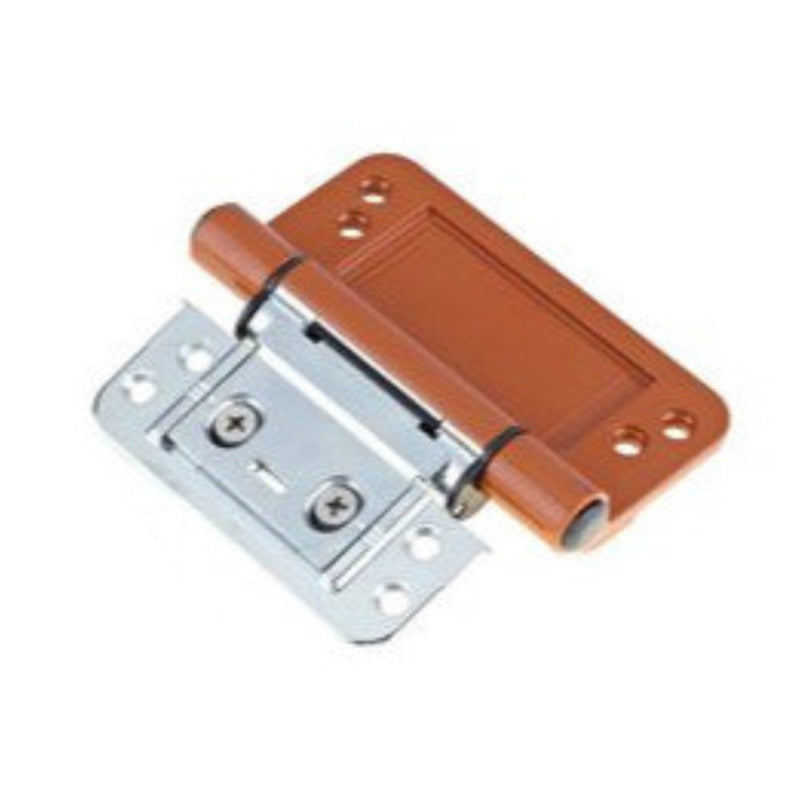

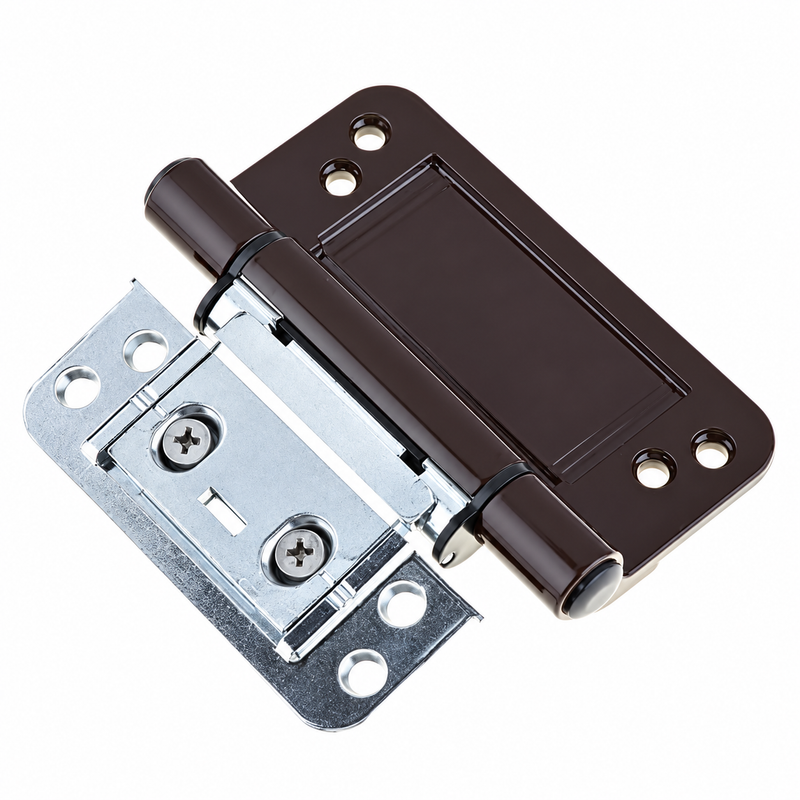

- Brown — HIN14002

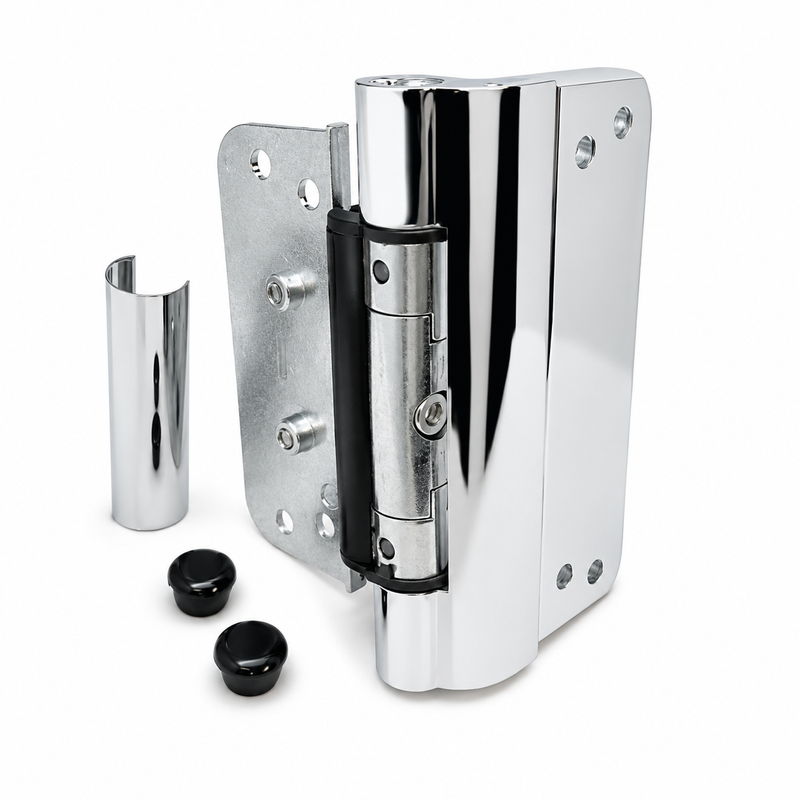

- Chrome — HIN14003

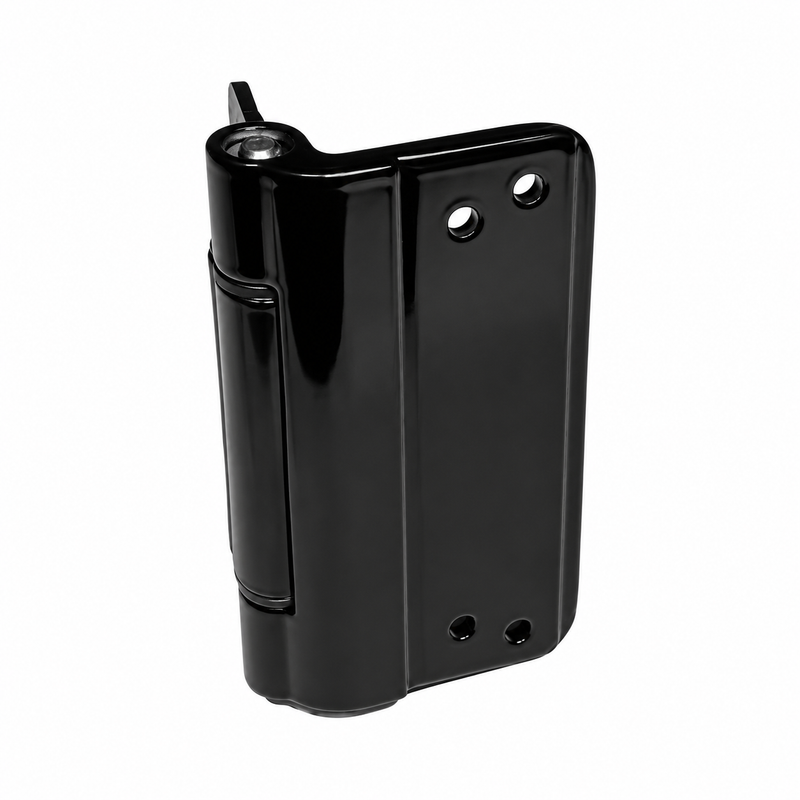

- Black — HIN14005

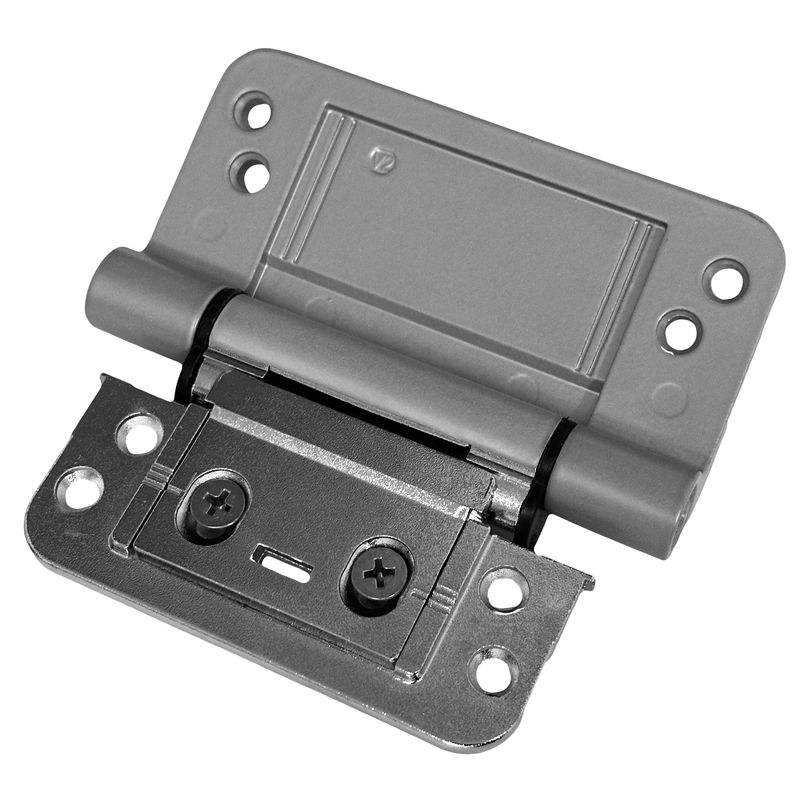

The existing Silver option remains available separately. Silver and Chrome are different finishes; select the finish you require.

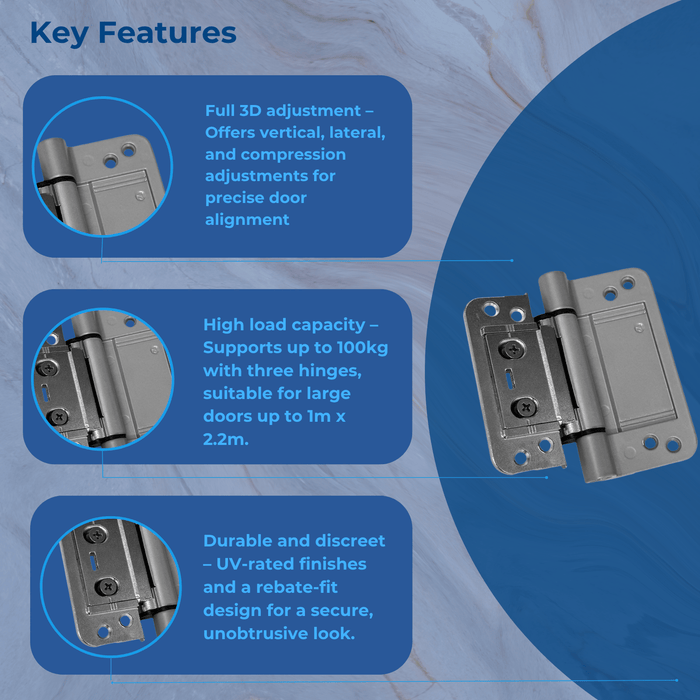

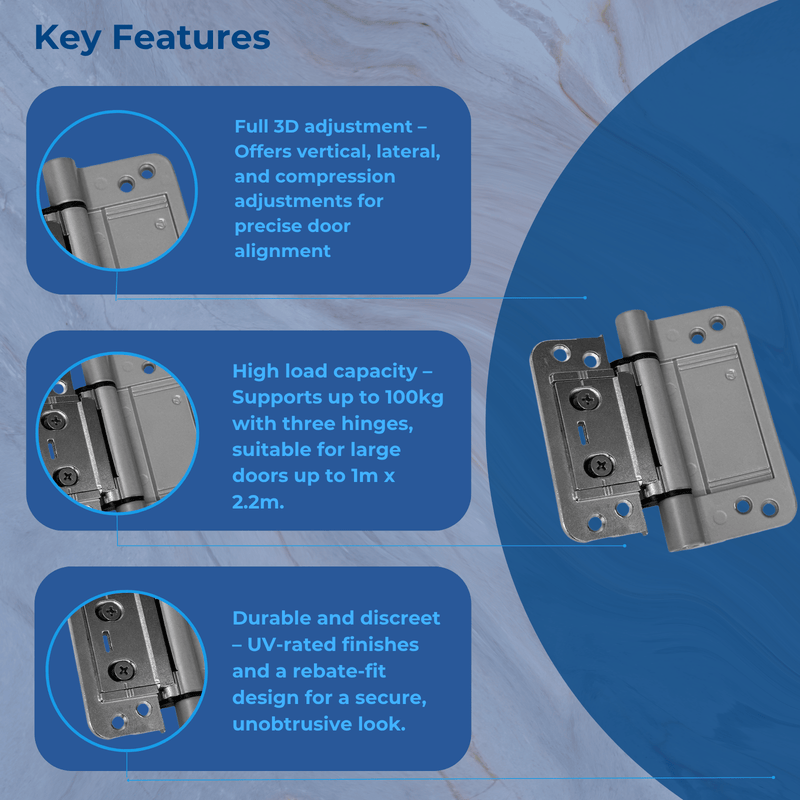

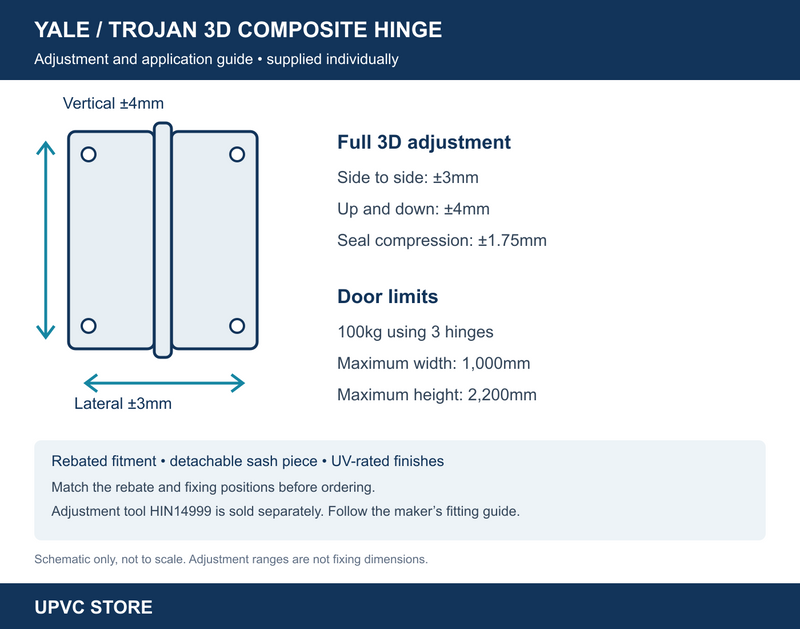

Technical information
- Lateral adjustment: ±3mm.
- Vertical adjustment: ±4mm.
- Compression adjustment: ±1.75mm.
- Maximum door weight: 100kg using three hinges.
- Maximum door size: 1,000mm wide × 2,200mm high.
- Simultaneous vertical adjustment across the hinges helps distribute the load evenly.
- UV-rated finishes and a 10-year mechanical guarantee.

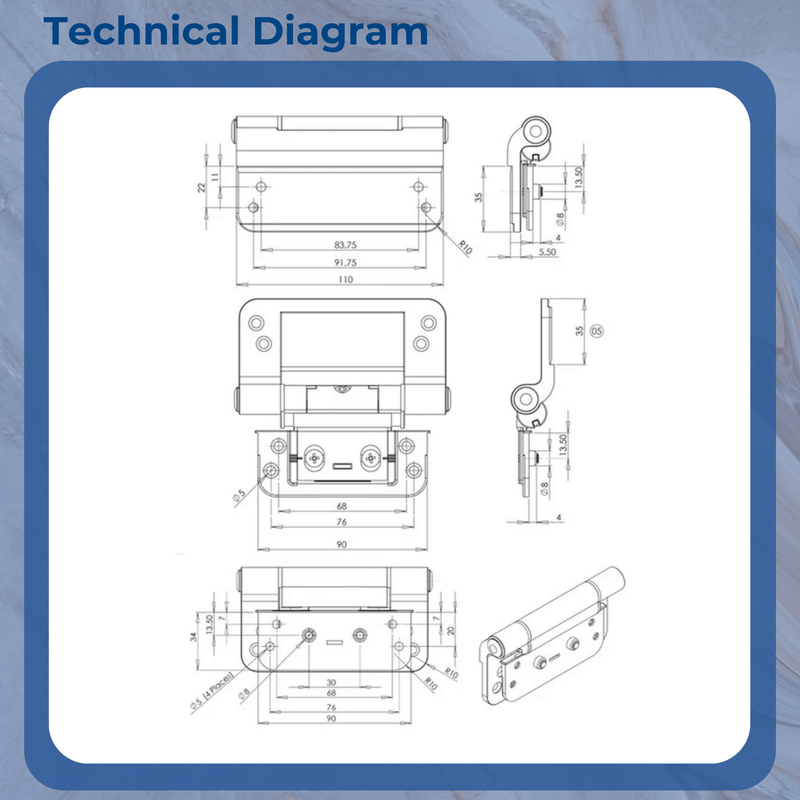

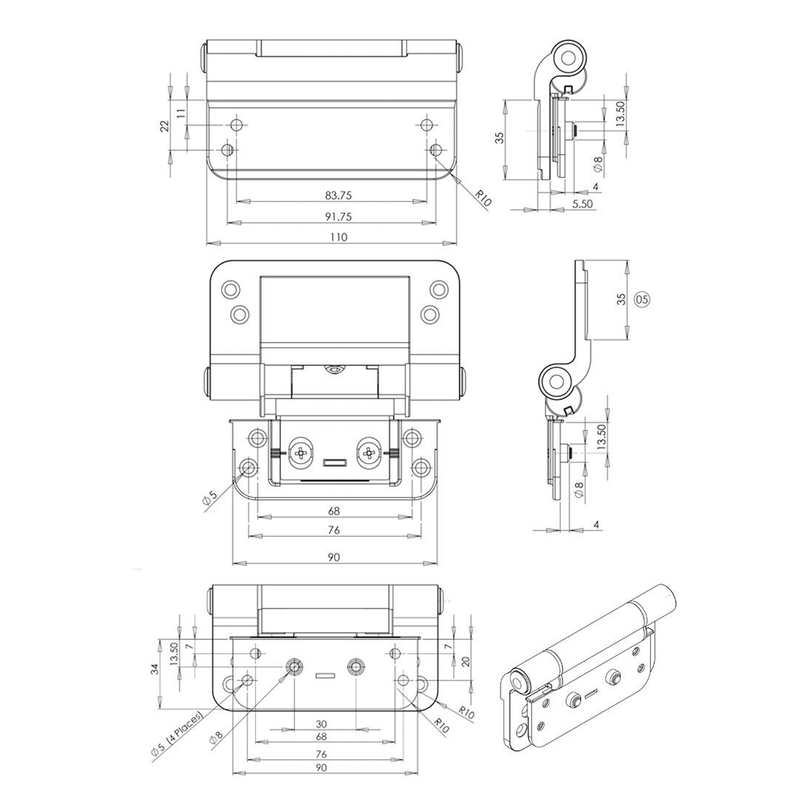

Check your existing hinge, door rebate and fixing positions before ordering. The technical illustration shows adjustment ranges and is not a drilling template. The HIN14999 adjustment tool is a separate accessory and is not included.
