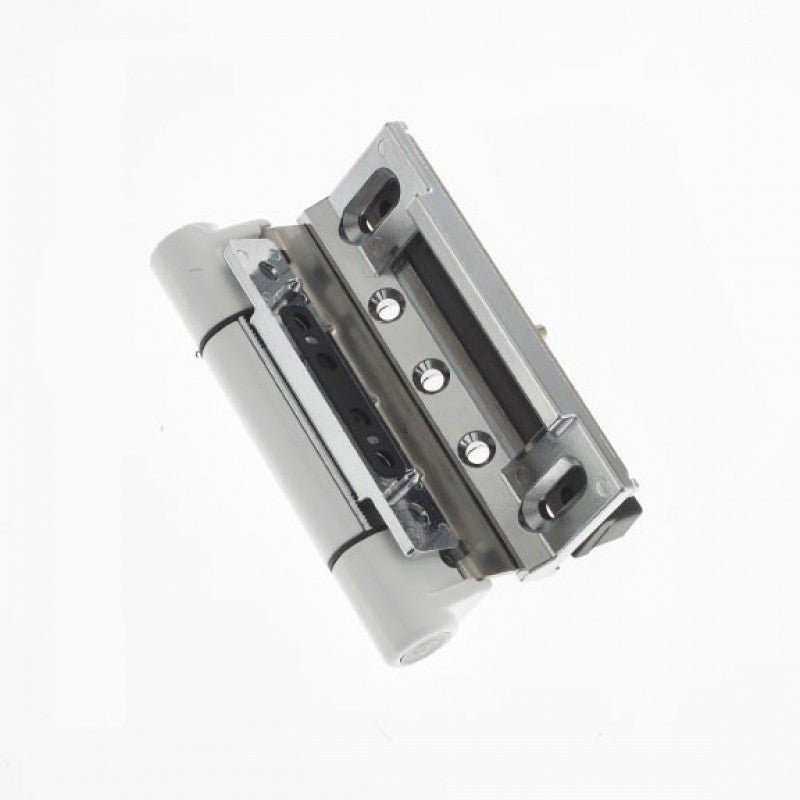

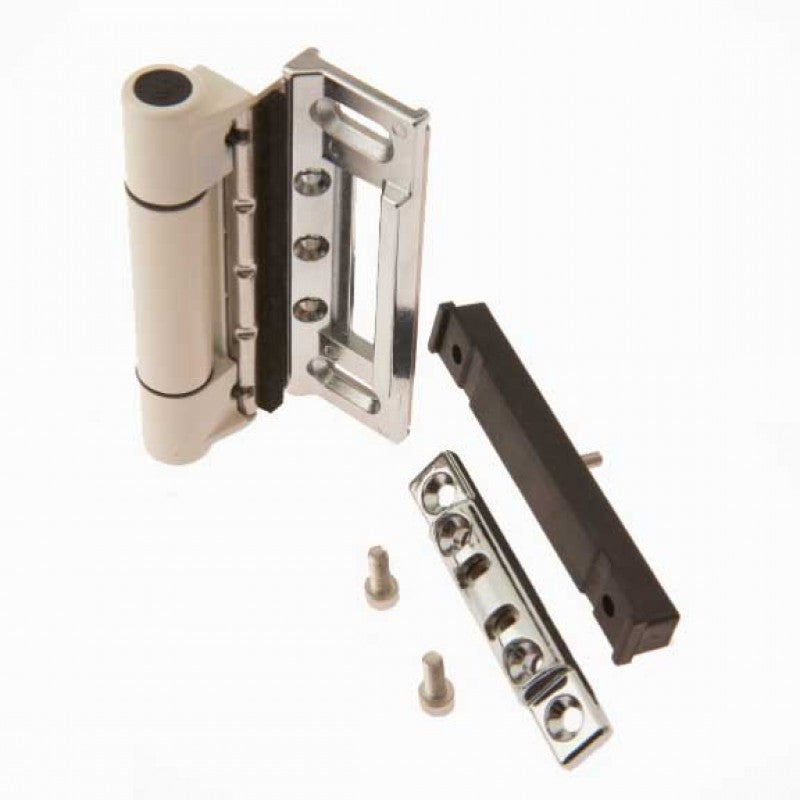

Trojan Athena Composite Door Hinge is a high-performance, slimline butt hinge designed specifically for uPVC composite doors. Supplied pre-assembled and ready to install, it offers robust performance, enhanced security, and ease of fitting, making it a popular choice for professional installers.

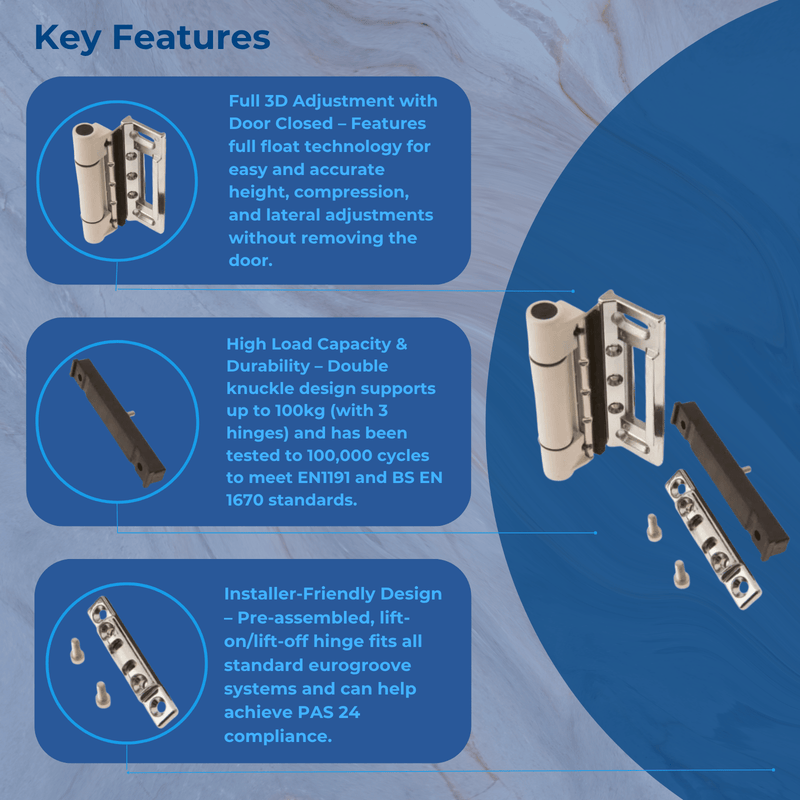

Key Features:

• Supplied pre-assembled and ready to fit
• Fits all standard eurogroove systems
• Double knuckle design supports up to 100KG with 3 hinges
• Full float technology enables accurate 3D adjustment with door closed
• 'Lift on, lift off' design simplifies installation and servicing
• Can achieve PAS 24 compliance as part of a door assembly

Durability and Testing:

• Tested to 100,000 cycles – conforms to EN1191
• Corrosion resistance tested to BS EN 1670
• Painted finishes: Grade 5, Plated finishes: Grade 4

Adjustment Range:

• Height: +/- 4mm
• Compression: +/- 2mm
• Lateral: +/- 4mm

Guarantee: 10-year mechanical guarantee for long-term reliability.
