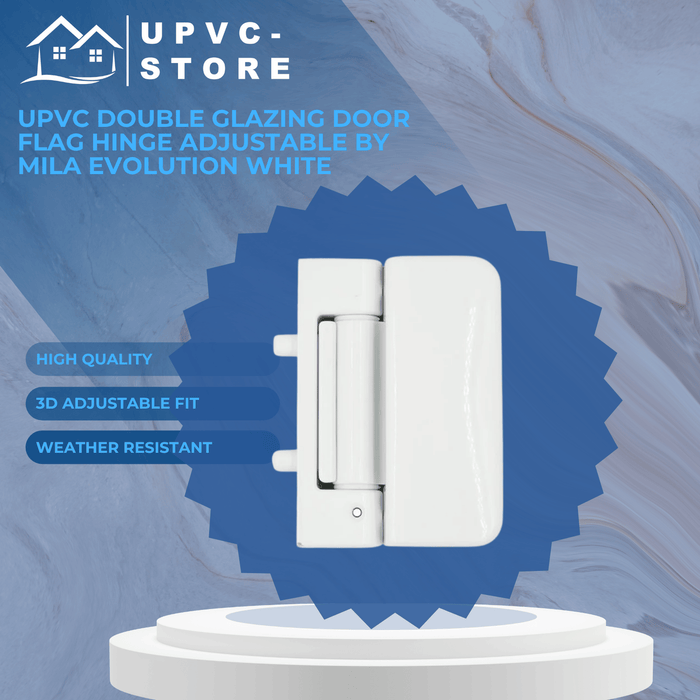

UPVC Double Glazing Door Flag Hinge Adjustable by Mila Evolution White
by Mila
Original price
$29.00
-
Original price
$29.00
Original price
$29.00
$29.00
-
$29.00
Current price
$29.00
These Evolution 3D Flag hinges suit rebate heights of 14mm to 19mm
Length: 100mm

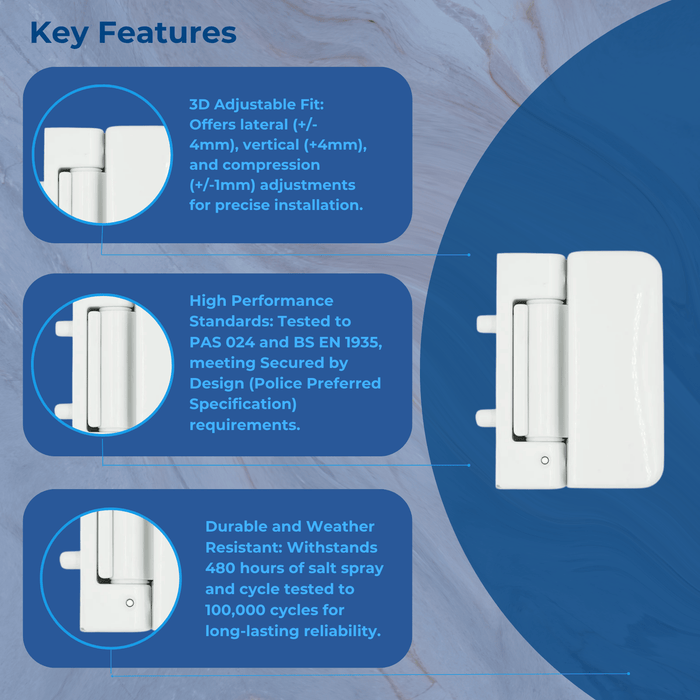

3 dimensional adjustment - lateral (+/- 4mm), vertical (+4mm) & compression (+/-1mm) for easy installation
Weather resistant - tested to 480 hours salt spray
Tested to the operational performance and enhanced security requirements of PAS 024
Meets the Police Preferred Specification requirements of Secured by Design
Cycle tested to 100,000 cycles, more than twice the industry requirement
Tested to BS EN 1935 - the European standard which specifies requirements for single-axis hinges for windows and doors opening in one direction only, whose rotation axis is no more than 30 mm from the face of the sash or door

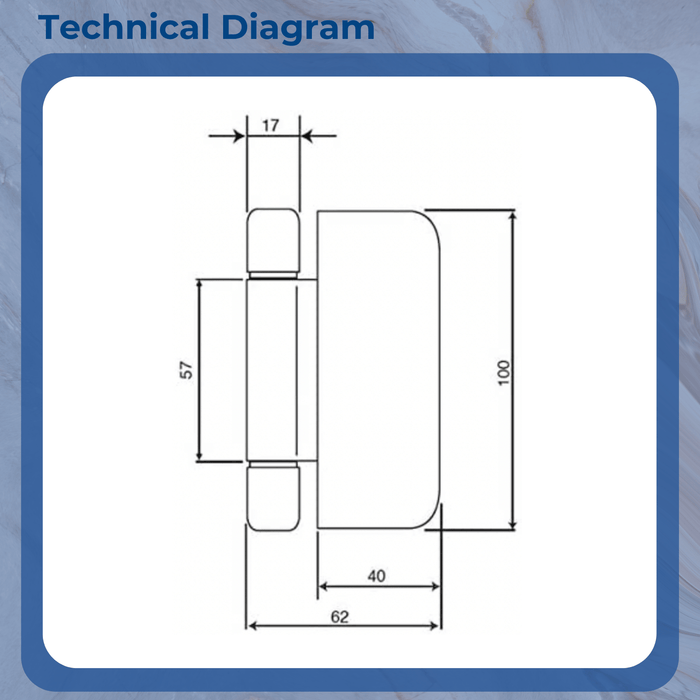

Technical Diagram
Length: 100mm
3 dimensional adjustment - lateral (+/- 4mm), vertical (+4mm) & compression (+/-1mm) for easy installation
Weather resistant - tested to 480 hours salt spray
Tested to the operational performance and enhanced security requirements of PAS 024
Meets the Police Preferred Specification requirements of Secured by Design
Cycle tested to 100,000 cycles, more than twice the industry requirement
Tested to BS EN 1935 - the European standard which specifies requirements for single-axis hinges for windows and doors opening in one direction only, whose rotation axis is no more than 30 mm from the face of the sash or door
Technical Diagram
