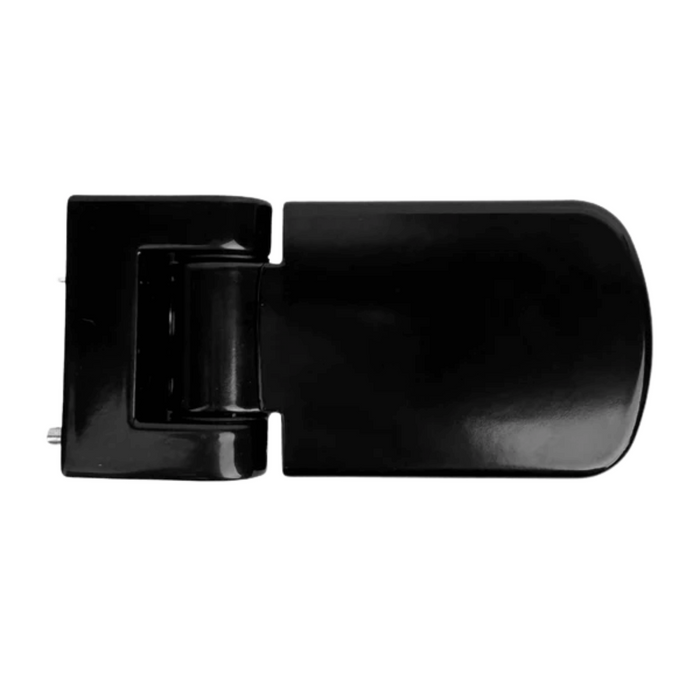

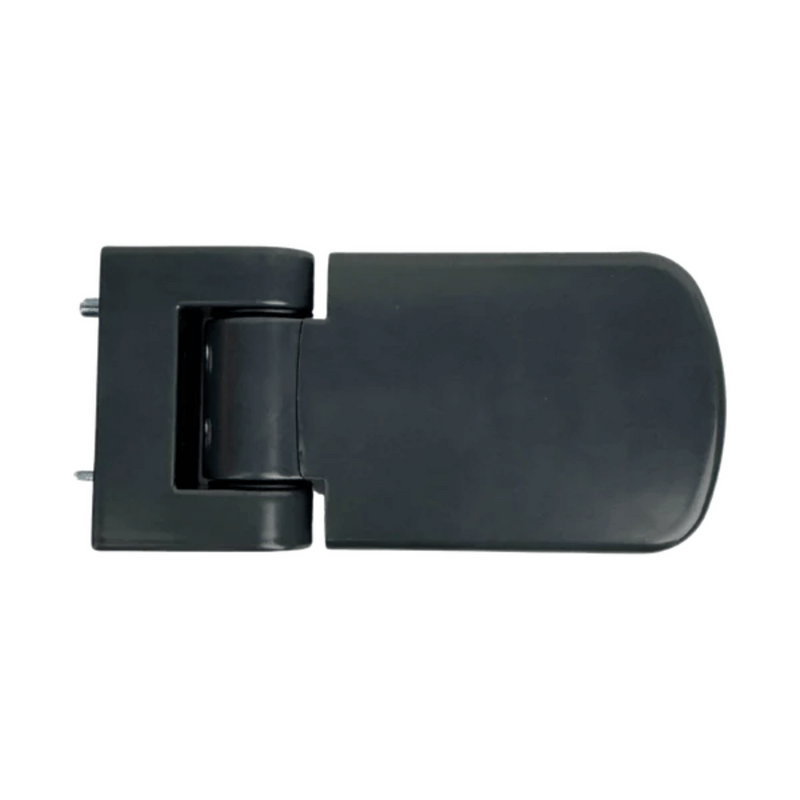

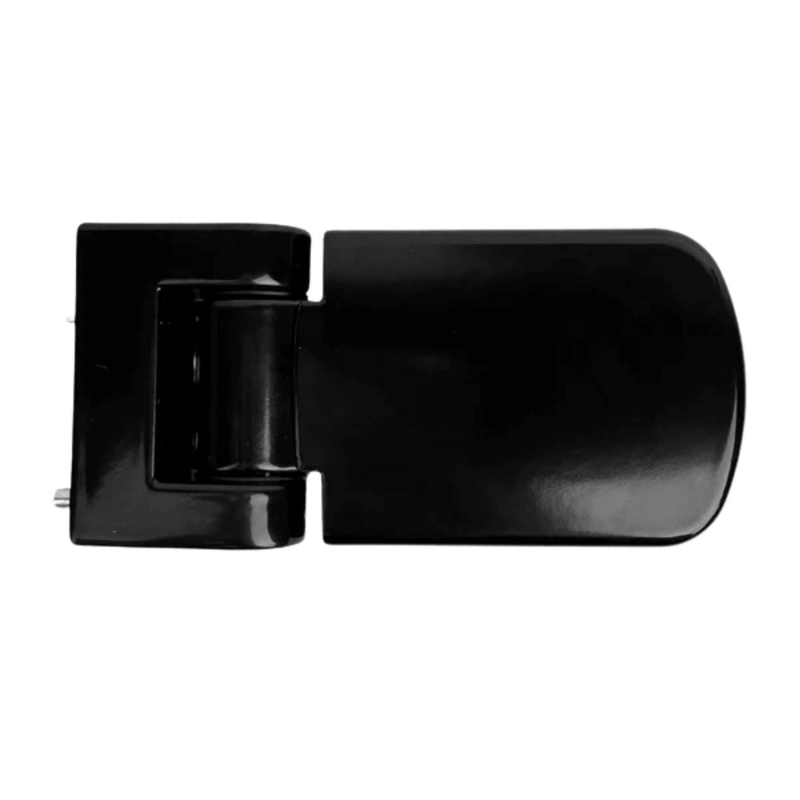

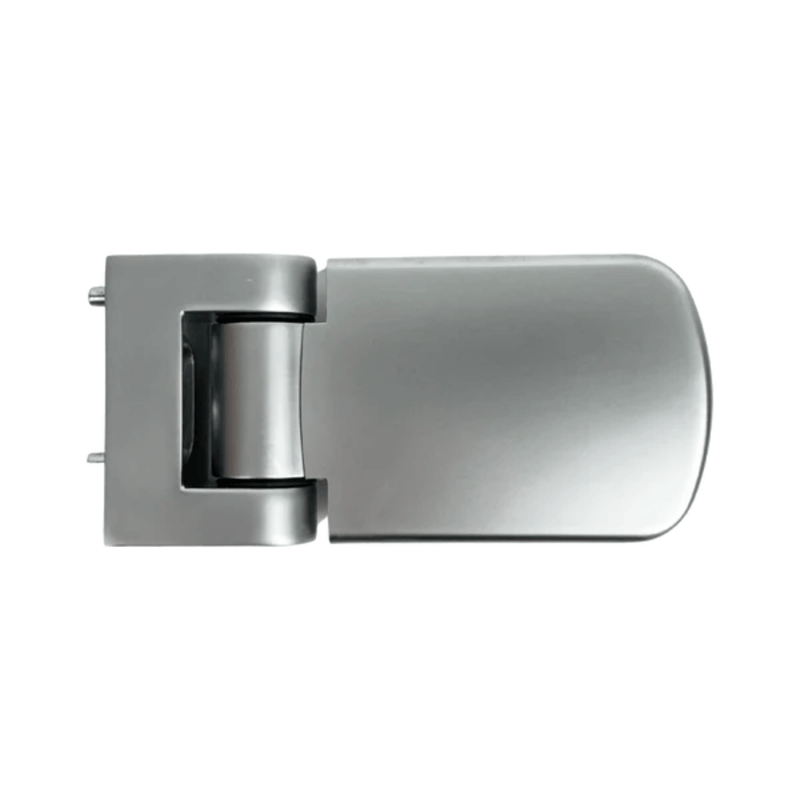

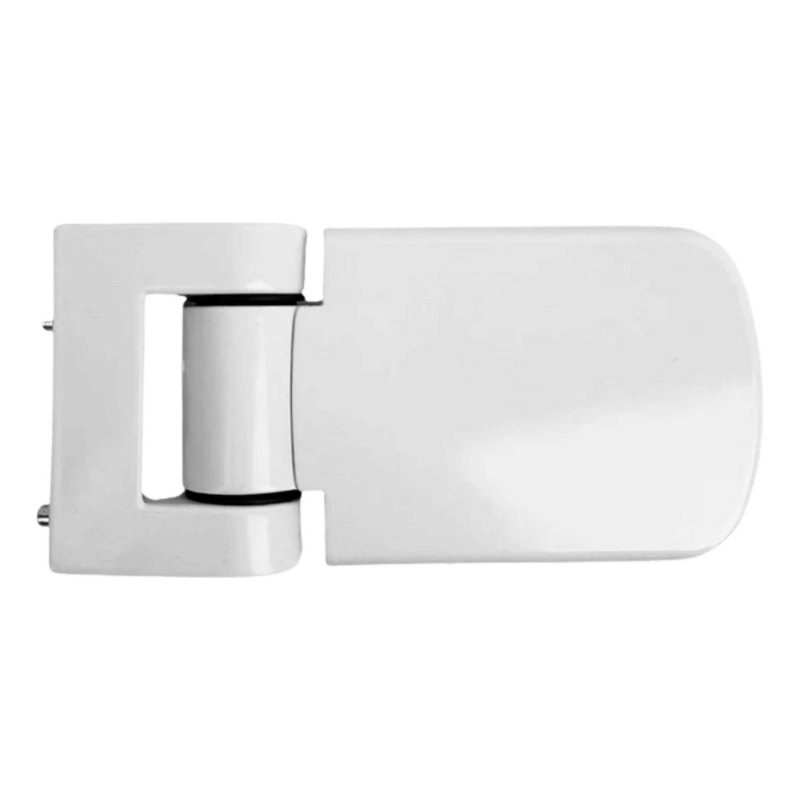

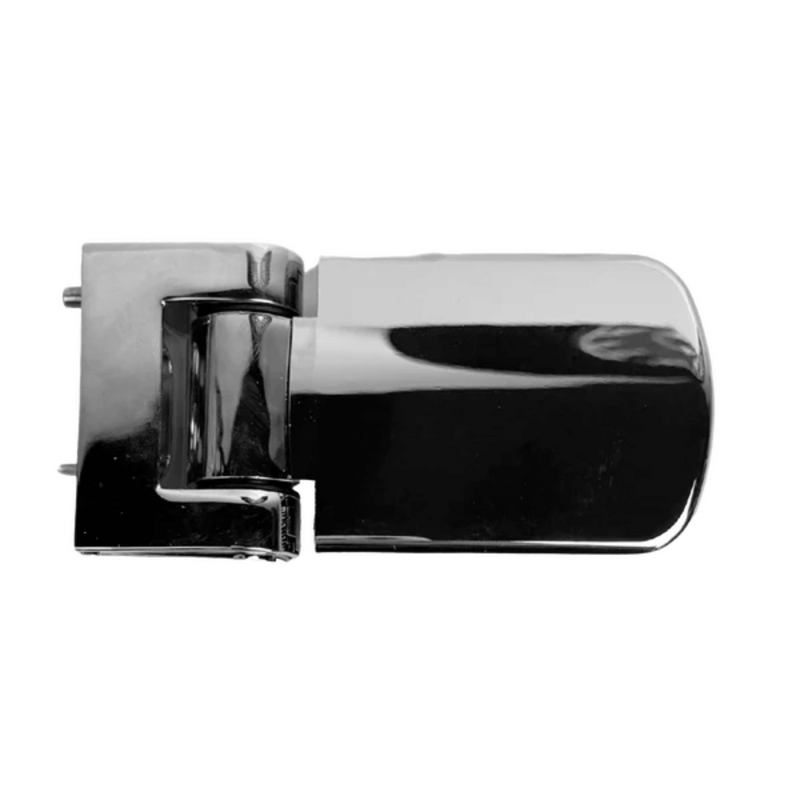

UPVC High Security Door Hinge

High-Security Hinge Features:

• Designed to meet PAS24 security standards
• Supplied in three pre-assembled parts for quick and easy installation

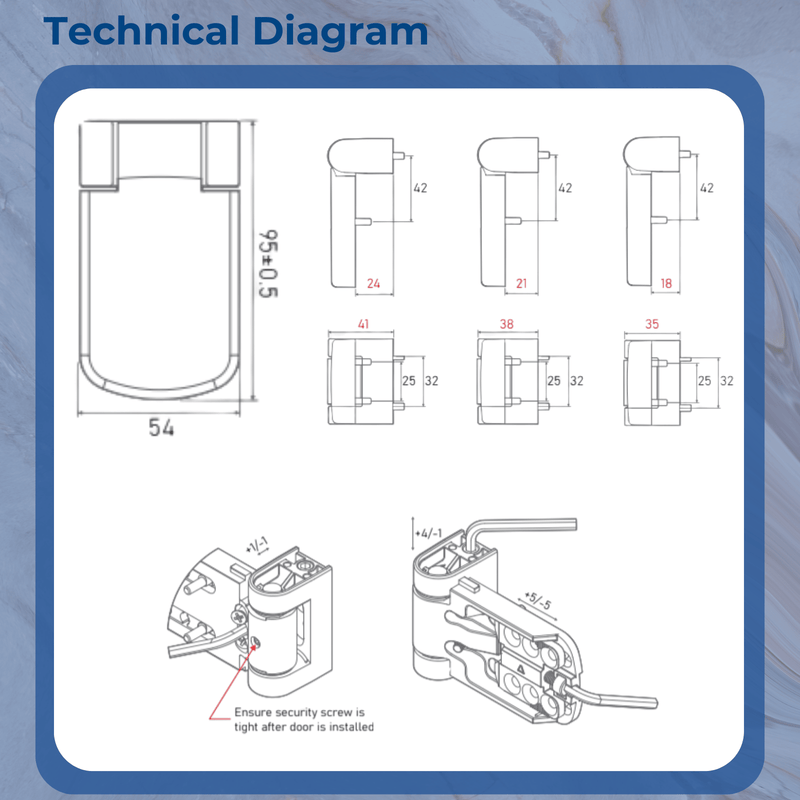

• Fits rebate heights from 17-25mm without the need for shims or packers
• Fully independent 3-axis adjustment
• A single hex key operates all three adjusters
• Die-cast cover caps ensure a perfect color match
• Protective film cover includes a helpful adjustment guide

Performance & Specifications:

• Lifecycle Performance: Tested to 200,000 cycles
• Load Capacity: Supports up to 100kg with three hinges
• Corrosion Resistance: Withstands 480 hours of neutral salt spray testing

Material Composition:

• Hinge Frame, Leaf, Cover: Zinc alloy
• Hinge Pin & Screws: Stainless steel

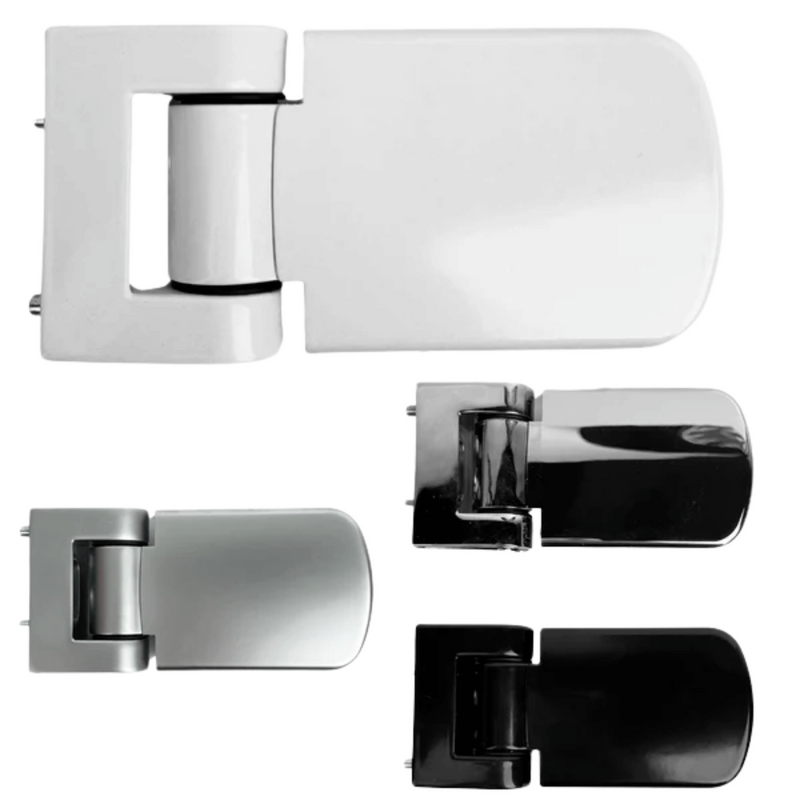

Finishes:

• Powder-Coated: White, Black, Anthracite Grey
• Plated Multi-Layer: Chrome, PVD Gold, Satin Chrome, Brushed Nickel, Rose Gold
