uPVC Universal Window Hinge Double Glazing Friction Stay PVC 10 Inch Egress Only 17mm Stack Stainless Steel
by UPVCSTORE
Sold out
Original price
$16.00
-
Original price
$16.00
Original price
$16.00
$16.00
-
$16.00
Current price
$16.00

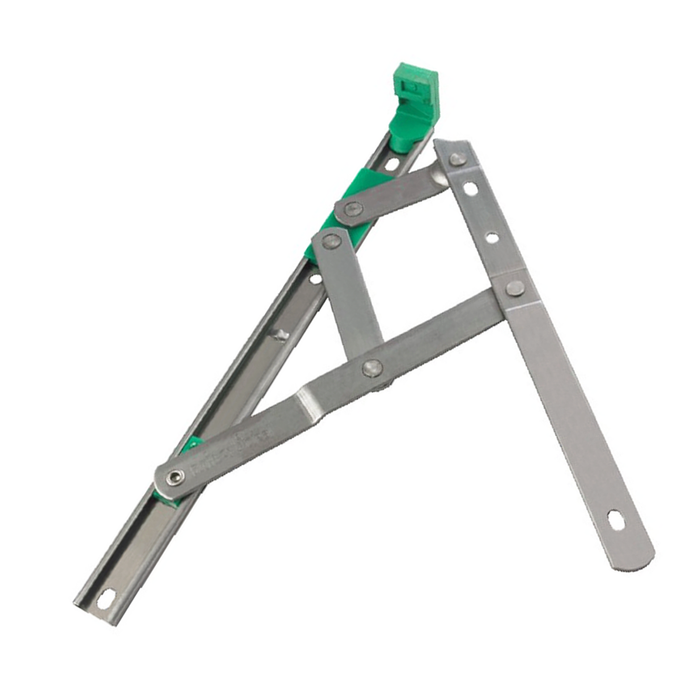

10 inch egress stainless steel window hinges

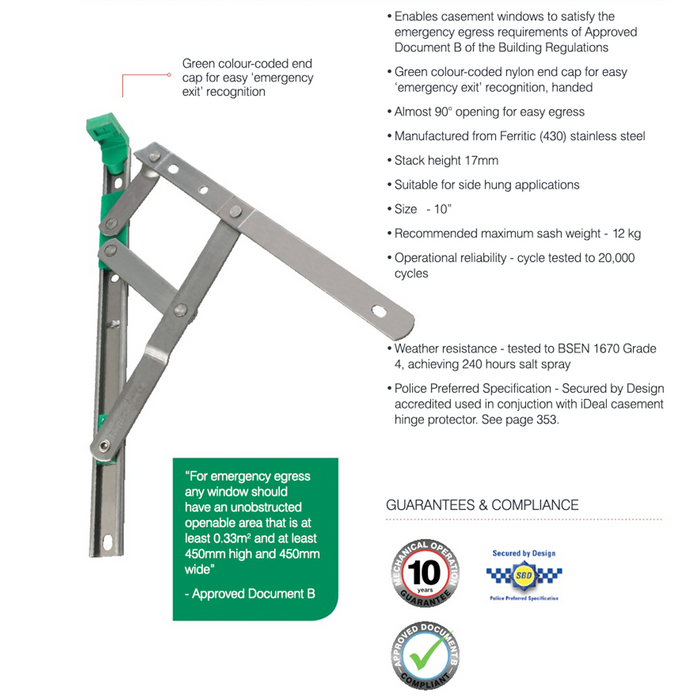

Green colour-coded end cap for easy 'emergency exit' recognition
- Enables casement windows to satisfy the emergency egress requirements of Approved
Document B of the Building Regulations - Green colour-coded nylon end cap for easy
'emergency exit' recognition, handed - Almost 90° opening for easy egress
- Manufactured from Ferritic (430) stainless steel

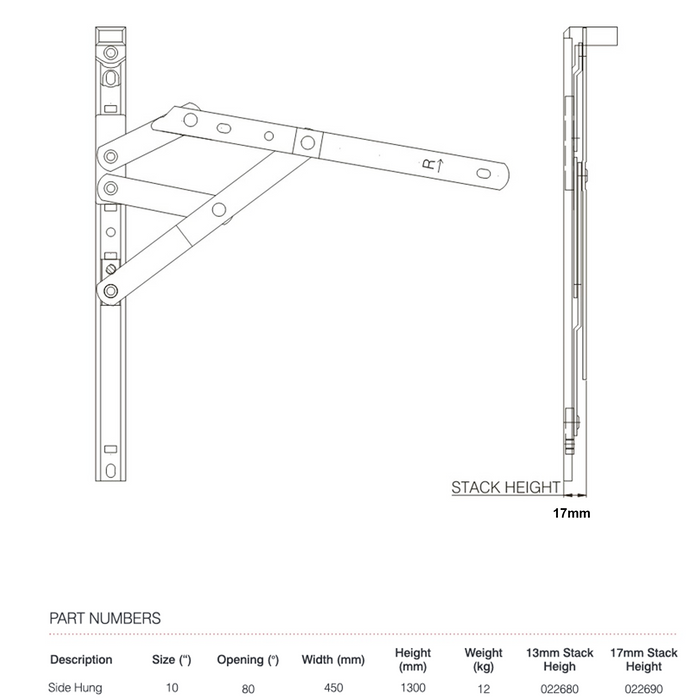

- Stack height 17mm
- Suitable for side hung applications
- Size - 10"
- Recommended maximum sash weight - 12 kg
- Operational reliability - cycle tested to 20,000 cycles
- Weather resistance - tested to BSEN 1670 Grade
4, achieving 240 hours salt spray - Police Preferred Specification - Secured by Design accredited used in conjuction with iDeal casement hinge protector.
"For emergency egress any window should have an unobstructed openable area that is at least 0.33m? and at least 450mm high and 450mm wide"
- Approved Document B
