XL Refurbishment Kit with 2 Anti-Lift Hooks – Multipoint Door Lock Repair Solution – 35mm or 45mm Backset

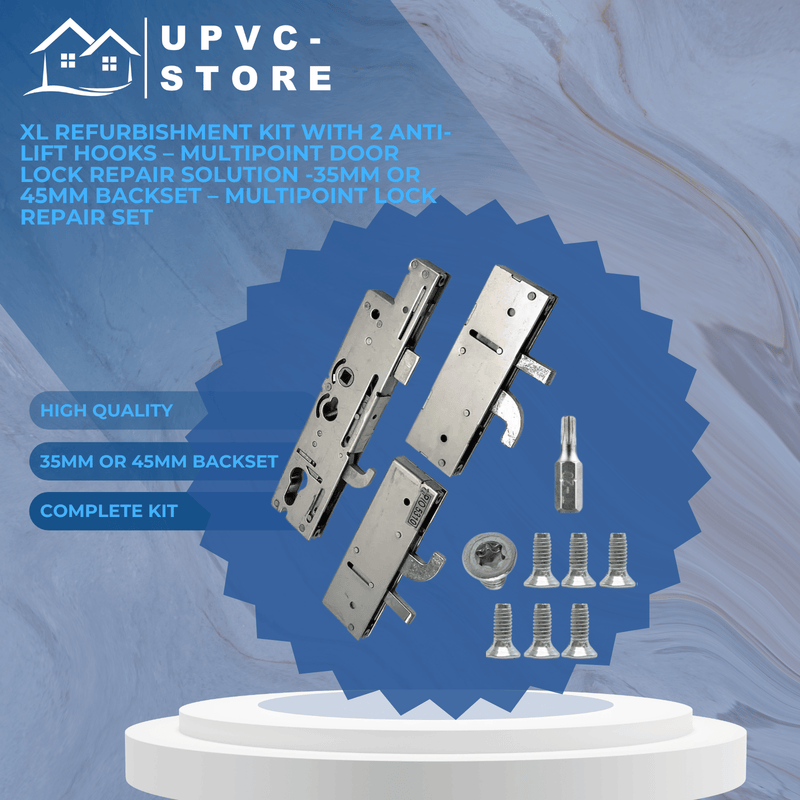

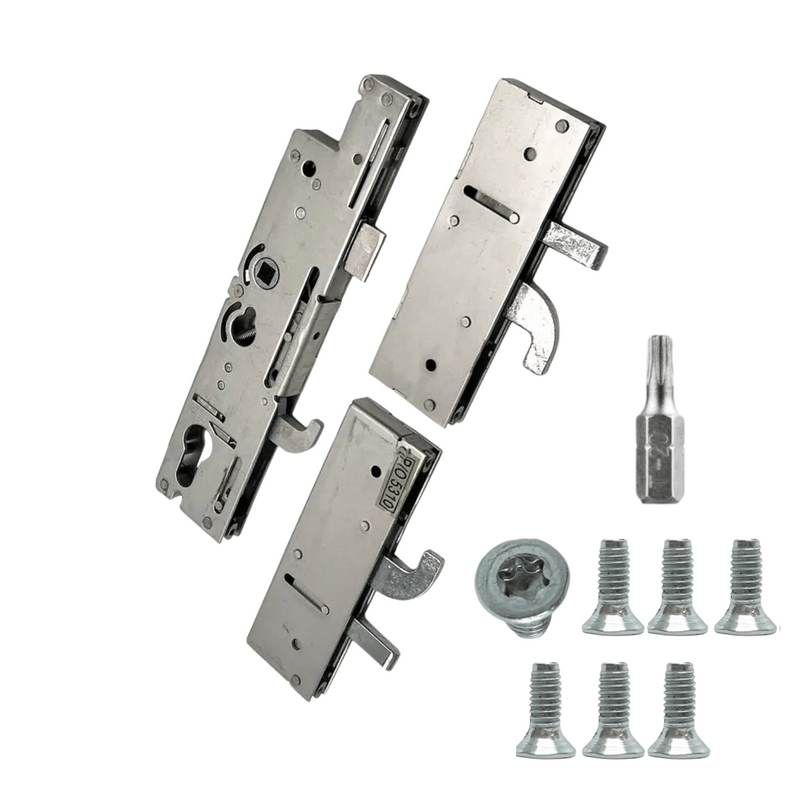

What's Included?

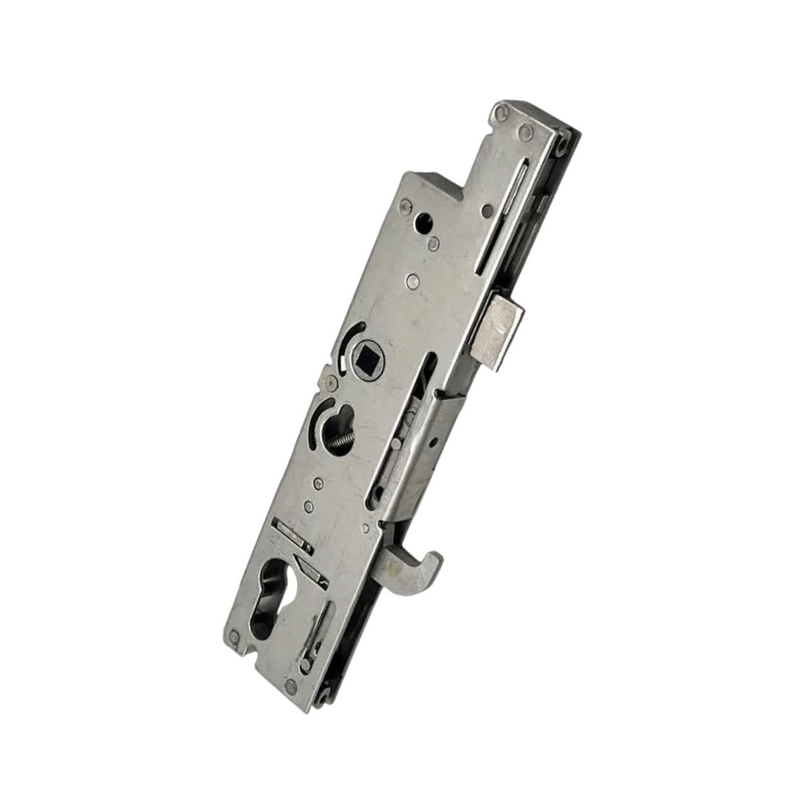

• 1 x Central gearbox with latch & hookbolt

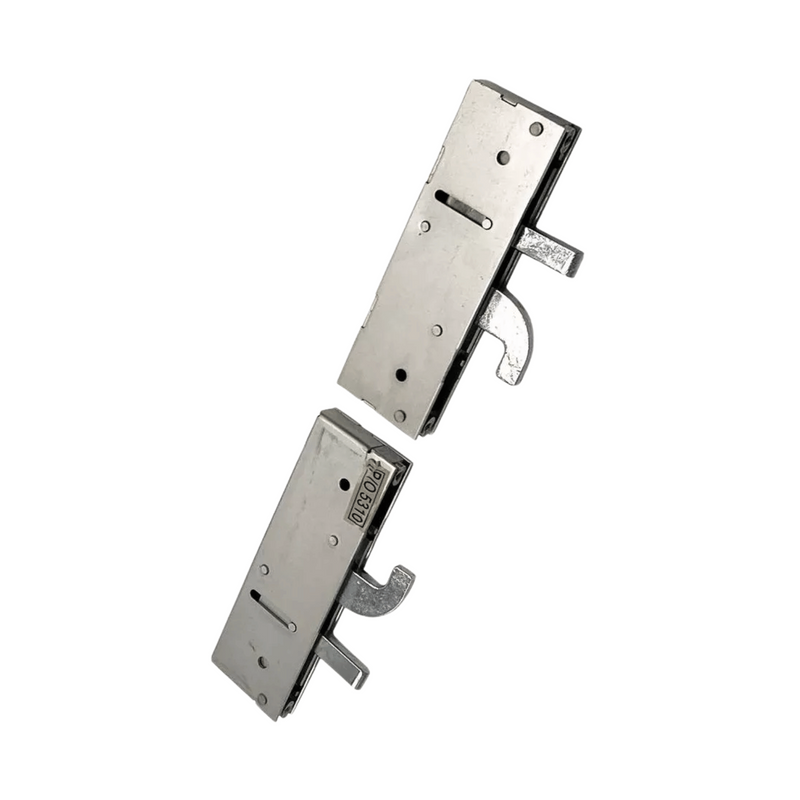

• 2 x Small hook cases (opposing direction)

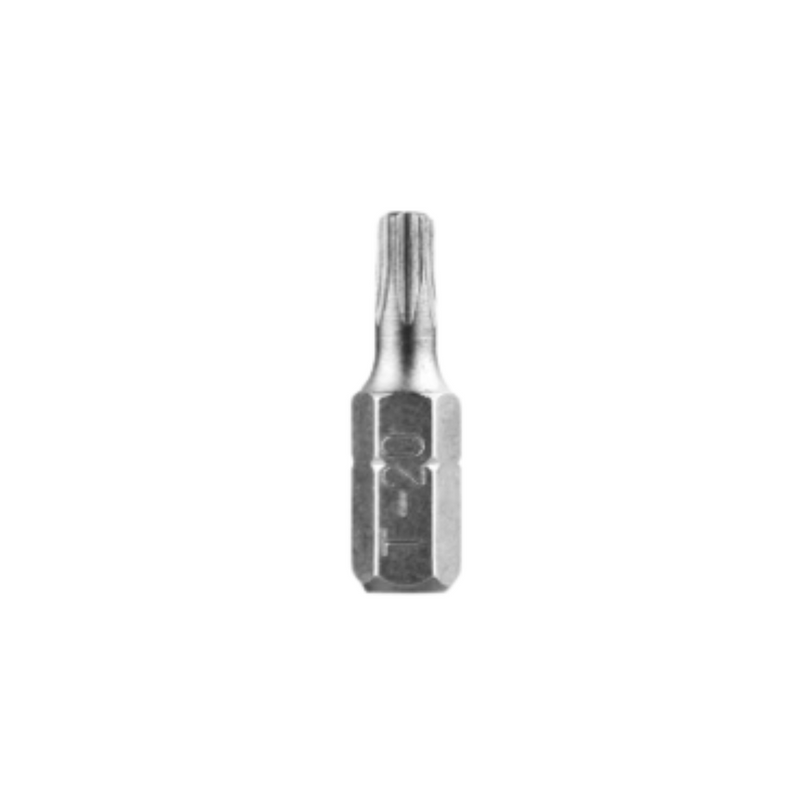

• 1 x T20 Torx bit

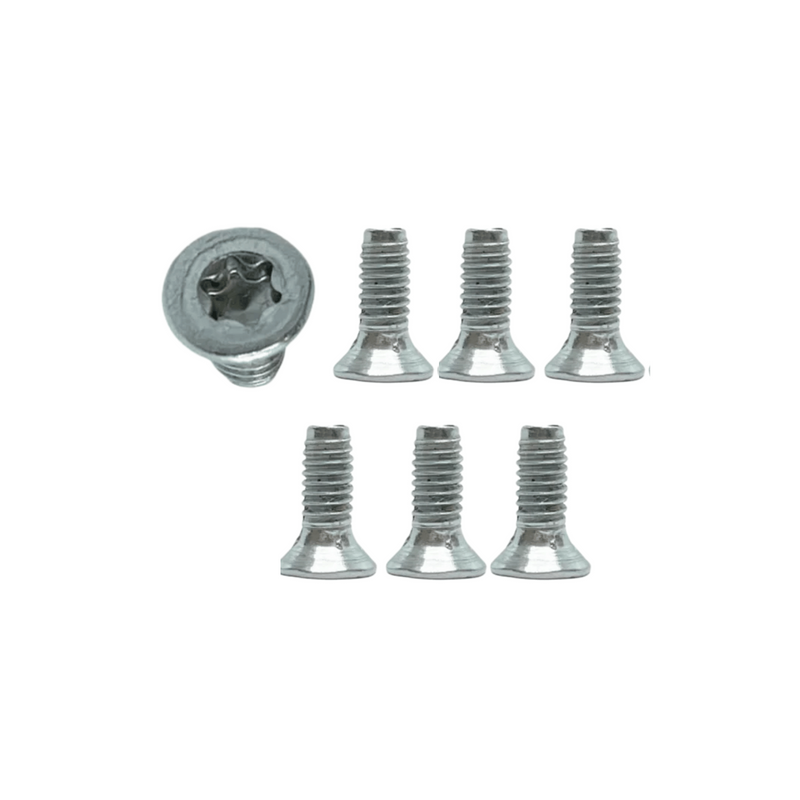

• 7 x M4.0 Grub Screws

Product Information

This comprehensive refurbishment kit is designed to restore and repair multipoint door lock systems with a latch and hookbolt centre case, along with two hook and anti-lift bolt cases.

Perfect for fixing failed door locks without the hassle of sourcing full-length replacements, this compact repair solution fits neatly in a box no larger than a pizza box—ideal for van stock and on-the-go repairs.

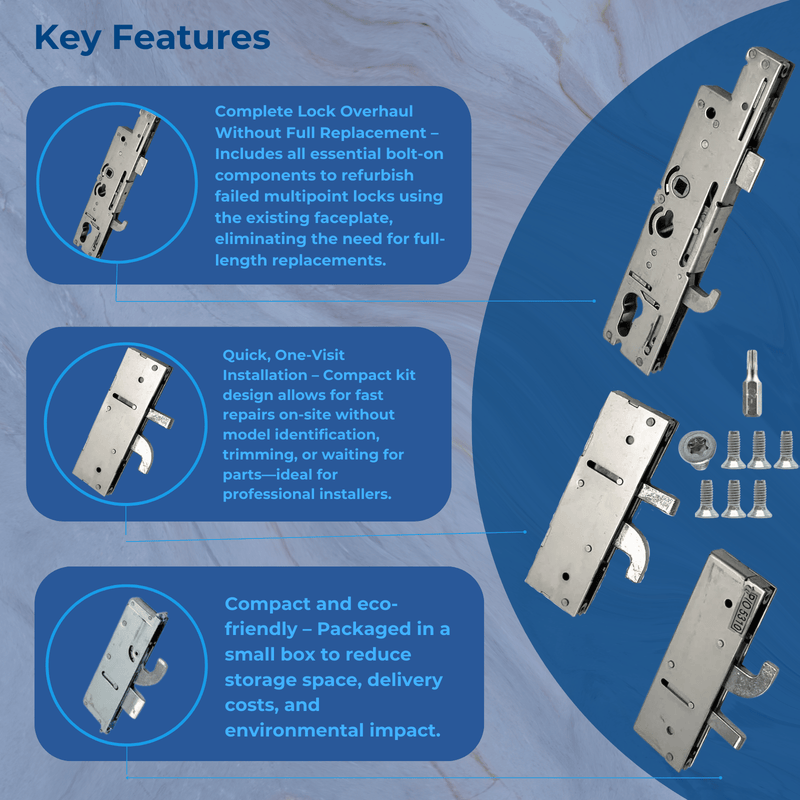

Multipoint door lock failures commonly occur in the spindle follower, locking hooks, or internal gearbox components. In many cases, the outer faceplate and drive rods remain intact. This refurbishment kit includes all critical bolt-on components, allowing for a full lock mechanism overhaul using the existing faceplate—saving time, reducing costs, and avoiding waste.

With universal fit options for the UK’s most widely used door lock types, this kit eliminates the need to identify the exact model or order bulky replacements. Simply choose the kit with the matching backset and locking points, install the new internal components, and restore the lock in one efficient visit.

No trimming, no waiting for deliveries, and no return visits—just a fast, reliable solution that gets the job done right the first time.

The smaller packaging and fewer delivery requirements also reduce carbon emissions and waste, making this an eco-conscious and sustainable option for professional locksmiths and installers.

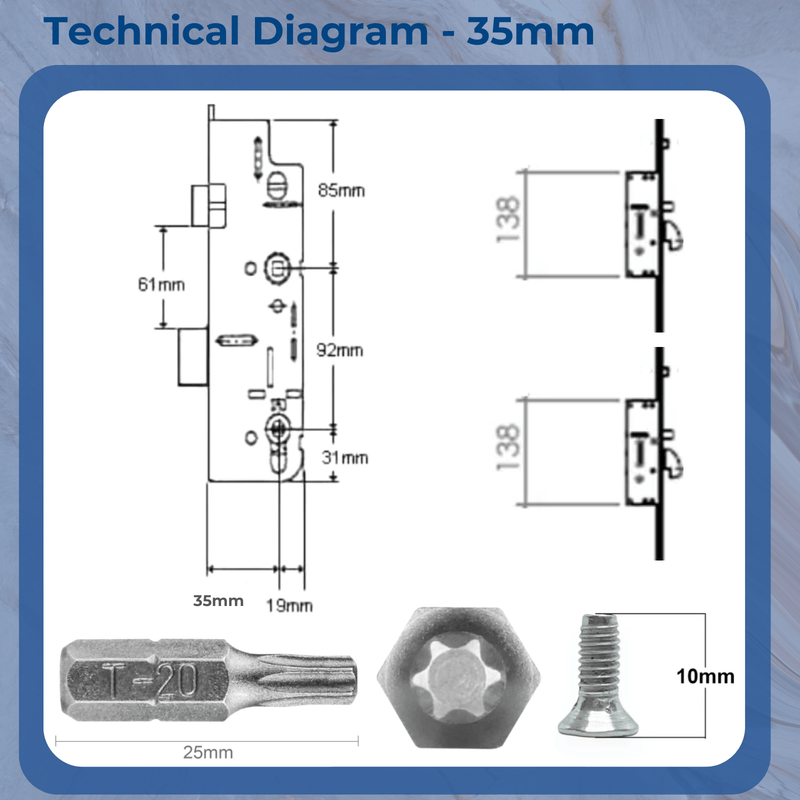

Product Specifications

• Manufacturer: Compatible with UK multipoint door lock systems
• Backset: Select from dropdown
• Centres (PZ): 92mm
• Spindle Size: 8mm
• Spindle Type: Split 8mm
• Hookbolts: 3
• Latch: 1
• Anti-Lift Bolts: 2
• Main Gearbox: Latch & Hookbolt configuration
• Operation: Select from dropdown
• Handing: Universal (Non-handed)
• Compatible Door Materials: uPVC, Aluminium, Timber, Composite
