Yale Platinum 3 Star Thumbturn Euro Cylinder – Nickel or Brass
Yale Platinum 3 Star Thumbturn Euro Cylinder

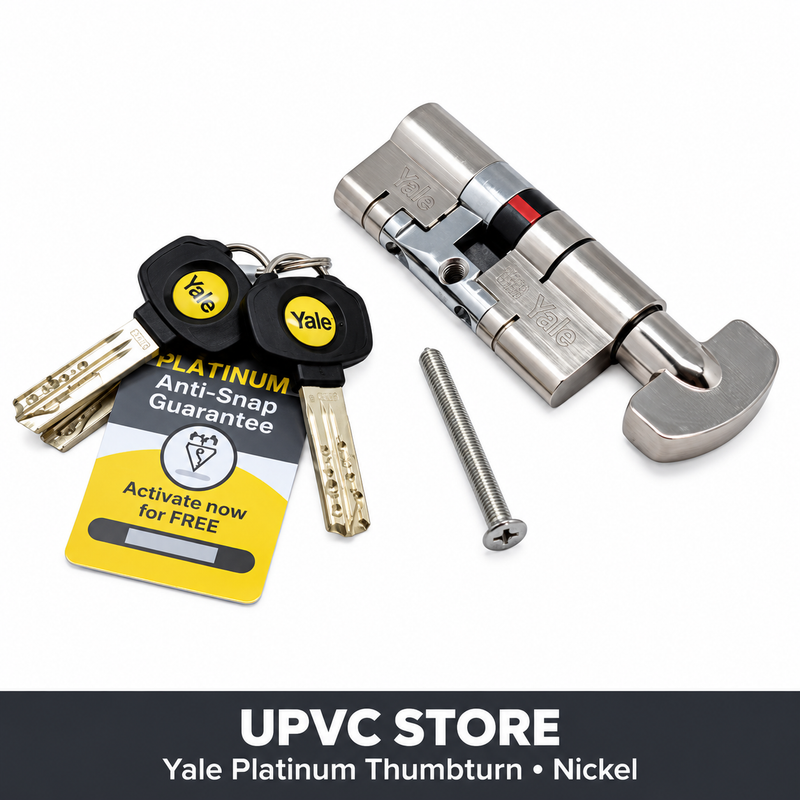

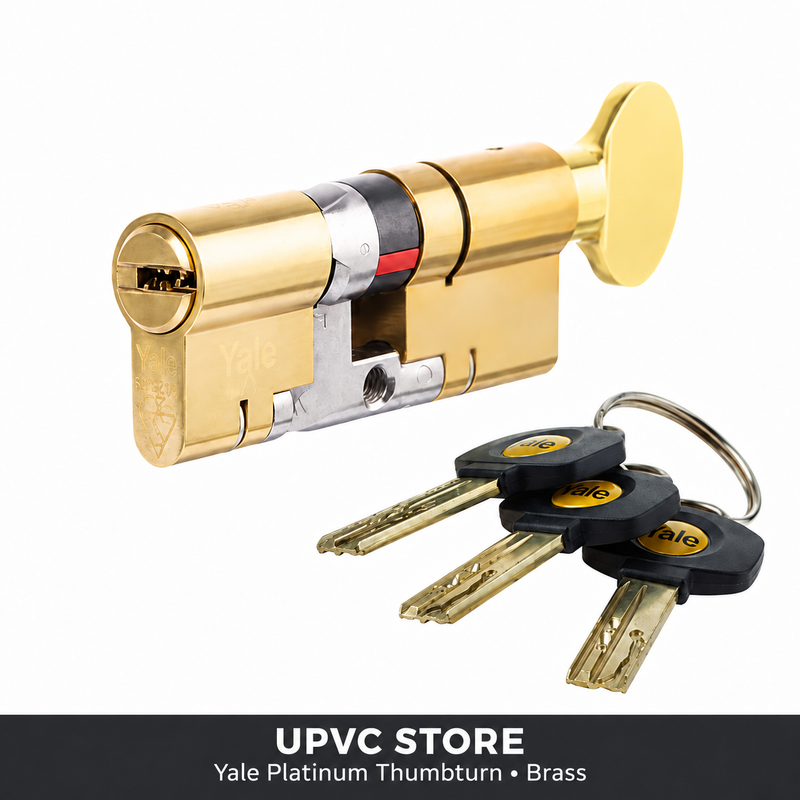

Upgrade a compatible euro-profile door lock with a Yale Platinum cylinder, operated by a key outside and a thumbturn inside. Choose the correct internal and external lengths and your preferred nickel or brass finish.
Security features
- TS007:2014 3-star rated cylinder, with British Kitemark certification KM559658.
- External sacrificial section designed to resist snapping attacks.
- Anti-pick, anti-bump and anti-drill protection.
- Horizontal keyway with reversible flat dimple keys.
Technical information
| Brand / range | Yale Platinum |
|---|---|
| Profile | Euro profile |
| Operation | Internal thumbturn / external key |
| Finish | Nickel or brass, as selected |
| Size convention | Internal thumbturn side / external key side, in millimetres |
| Certification | TS007:2014 3 star; BS EN 1303:2005; Kitemark KM559658 |
| Supplied | One cylinder in the selected size and finish |

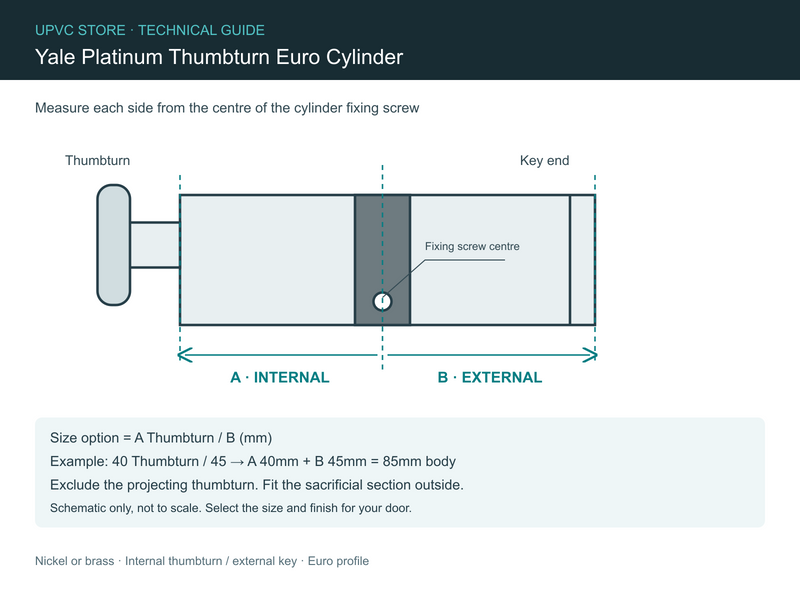

Measure before ordering
Measure from the centre of the cylinder fixing screw to each end of the cylinder body. The first measurement in the size option is the internal thumbturn side; the second is the external key side. Do not include the projecting thumbturn in the body measurement. For example, 40 Thumbturn / 45 means 40mm internally and 45mm externally, with an 85mm cylinder body overall.
This cylinder is handed: the sacrificial section must face outside. Check both measurements against your door and handle arrangement, and follow Yale's fitting instructions. The illustration is a measuring guide; body proportions vary with the selected size.
